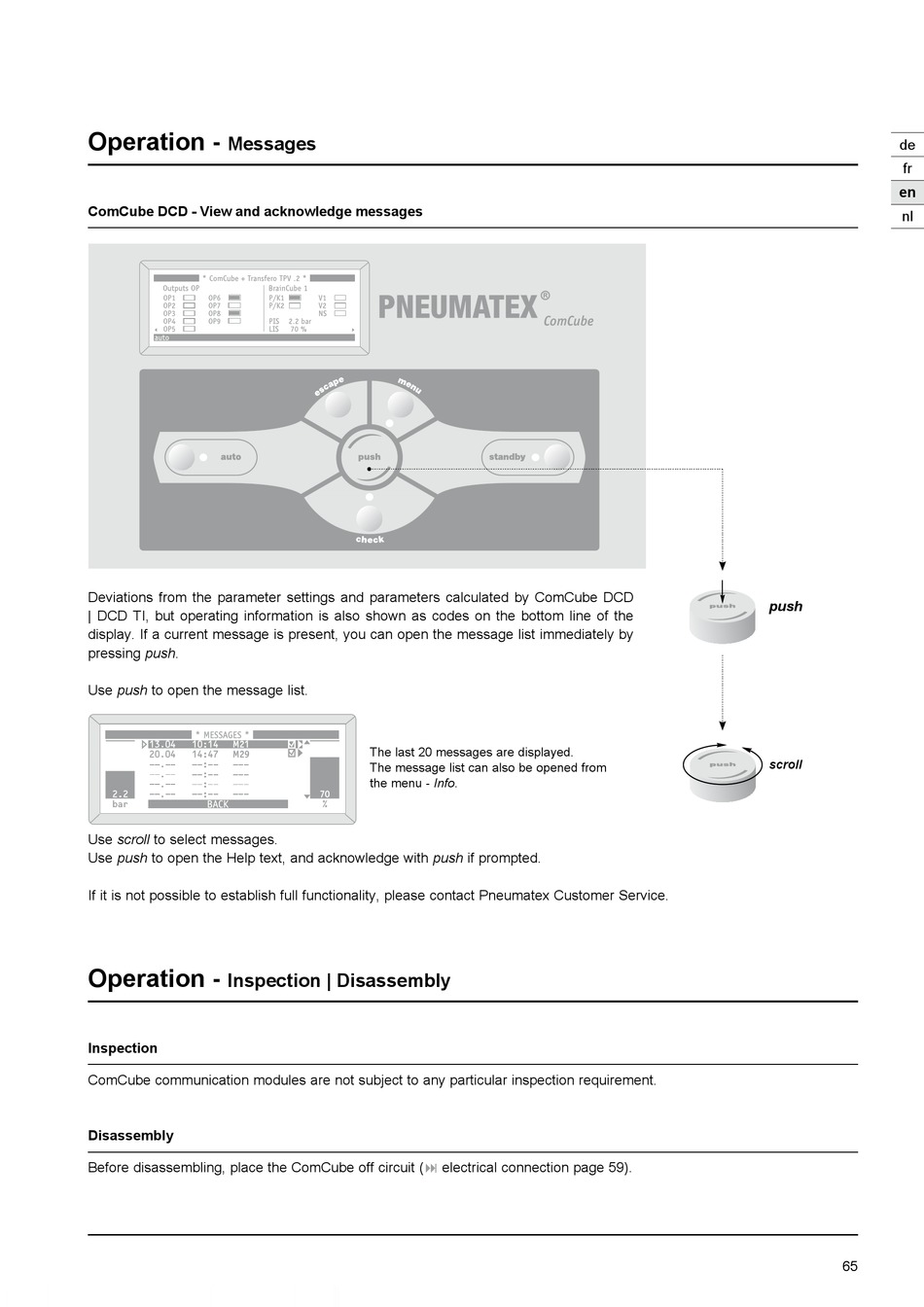

Operation -
Messages
ComCube DCD - View and acknowledge messages
Deviations from the parameter settings and parameters calculated by ComCube DCD
| DCD TI, but operating information is also shown as codes on the bottom line of the
display. If a current message is present, you can open the message list immediately by
pressing push.
Use push to open the message list.
Use scroll to select messages.
Use push to open the Help text, and acknowledge with push if prompted.
If it is not possible to establish full functionality, please contact Pneumatex Customer Service.
Operation -
Inspection | Disassembly
Inspection
ComCube communication modules are not subject to any particular inspection requirement.
Disassembly
Before disassembling, place the ComCube off circuit
The last 20 messages are displayed.
The message list can also be opened from
the menu - Info.
(: electrical connection page 59).
