IMI PNEUMATEX ComCube Montageanleitung Seite 56

Operating -
de
fr
en

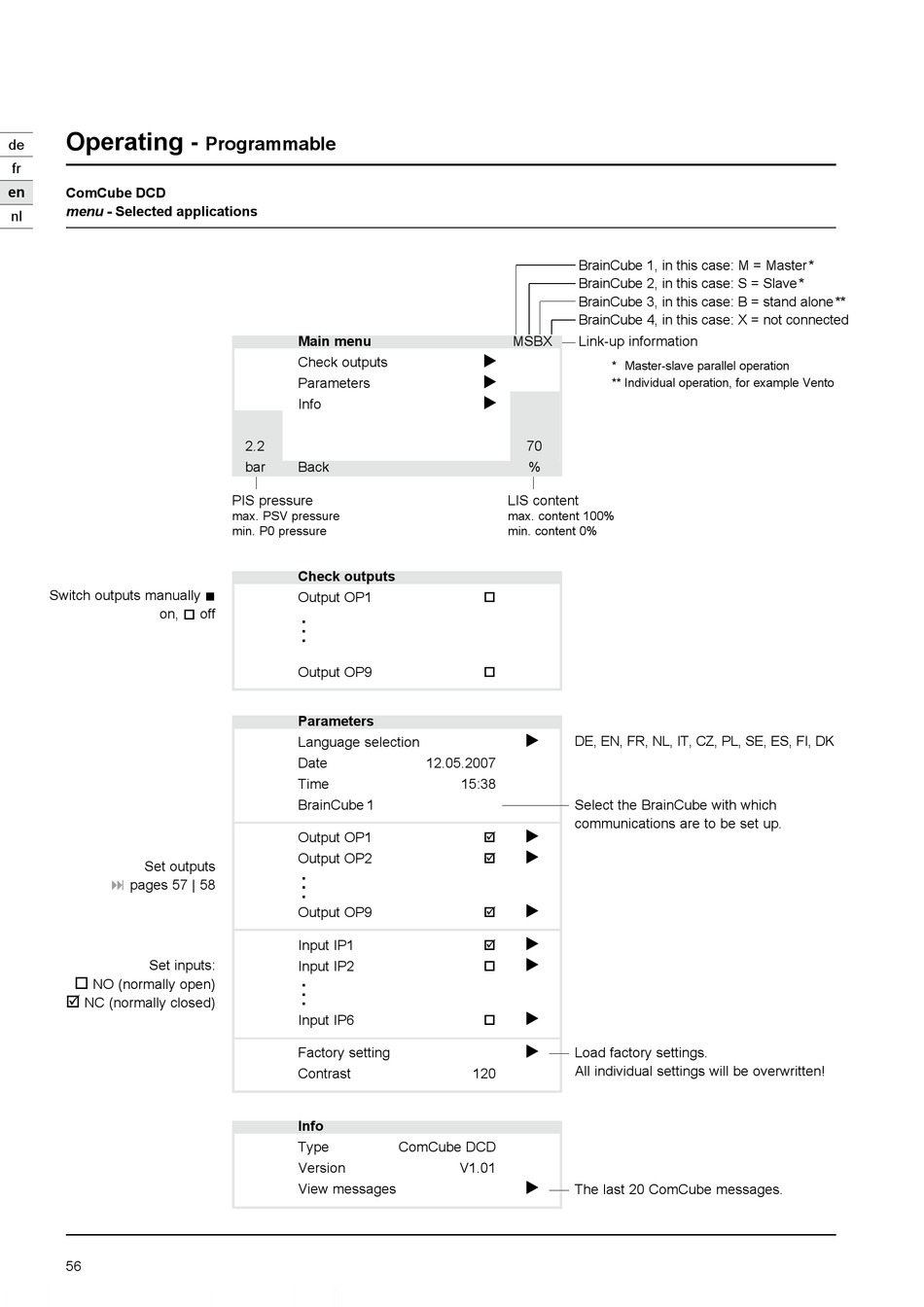

ComCube DCD
menu - Selected applications
nl
Switch outputs manually 
on,  off
Set outputs
pages 57 | 58
:
Set inputs:
 NO (normally open)

NC (normally closed)
56
Programmable
Main menu
Check outputs
Parameters
Info
2.2
bar Back
PIS pressure
max. PSV pressure
min. P0 pressure
Check outputs
Output OP1
. .
.
Output OP9
Parameters
Language selection
Date
Time
BrainCube 1
Output OP1
Output OP2
. .
.
Output OP9
Input IP1
Input IP2
. .
.
Input IP6
Factory setting
Contrast
Info
Type
Version
View messages
MSBX
70
%
LIS content
max. content 100%
min. content 0%


12.05.2007
15:38






120
ComCube DCD
V1.01
BrainCube 1, in this case: M = Master*
BrainCube 2, in this case: S = Slave*
BrainCube 3, in this case: B = stand alone**
BrainCube 4, in this case: X = not connected
Link-up information
* Master-slave parallel operation
** Individual operation, for example Vento
DE, EN, FR, NL, IT, CZ, PL, SE, ES, FI, DK
Select the BrainCube with which
communications are to be set up.
Load factory settings.
All individual settings will be overwritten!
The last 20 ComCube messages.
