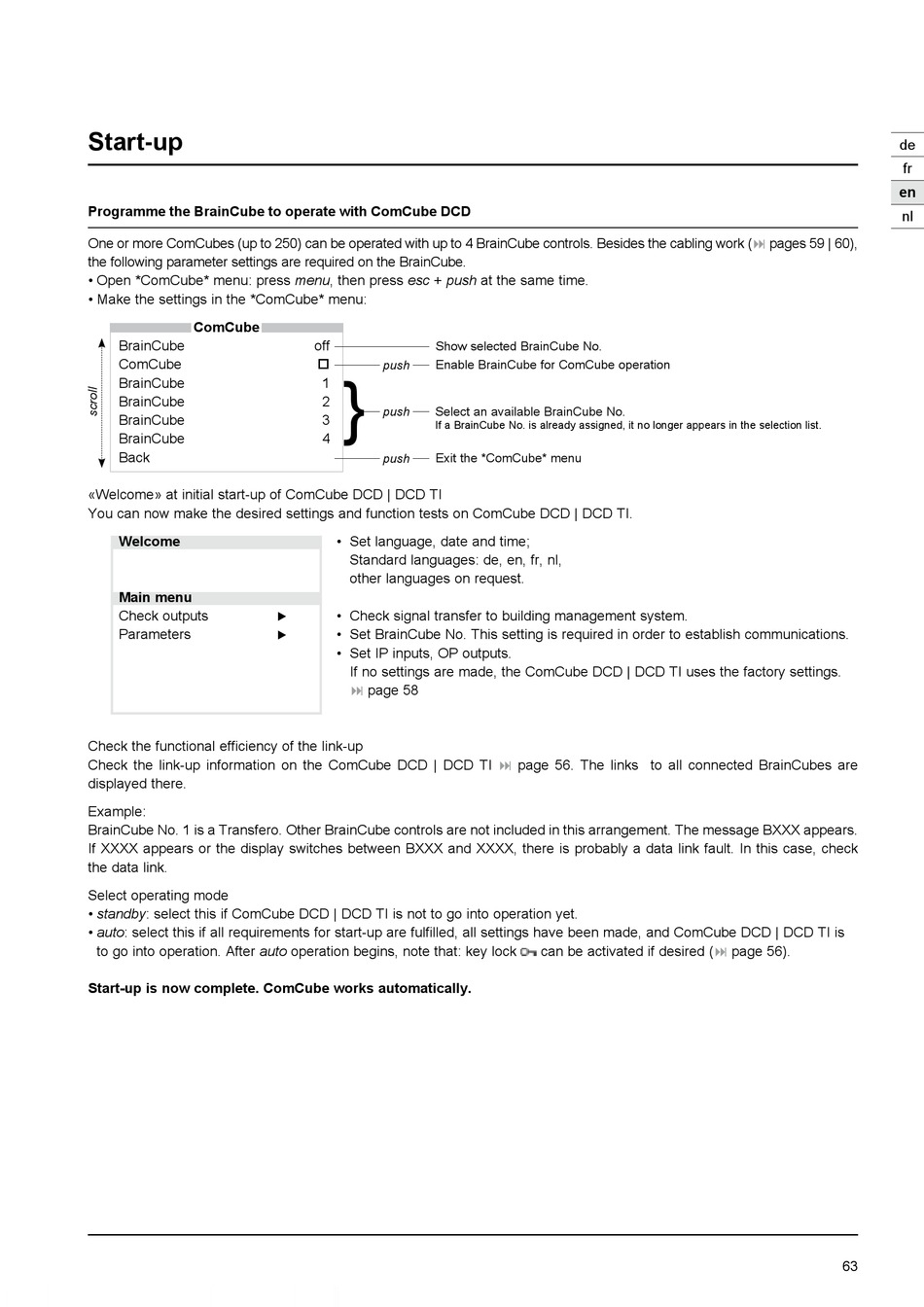

Start-up
Programme the BrainCube to operate with ComCube DCD
One or more ComCubes (up to 250) can be operated with up to 4 BrainCube controls. Besides the cabling work
the following parameter settings are required on the BrainCube.
• Open *ComCube* menu: press menu, then press esc + push at the same time.
• Make the settings in the *ComCube* menu:
ComCube
BrainCube
ComCube
BrainCube
BrainCube
BrainCube
BrainCube
Back
«Welcome» at initial start-up of ComCube DCD | DCD TI
You can now make the desired settings and function tests on ComCube DCD | DCD TI.
Welcome
Main menu
Check outputs
Parameters
Check the functional effi ciency of the link-up
Check the link-up information on the ComCube DCD | DCD TI
displayed there.
Example:
BrainCube No. 1 is a Transfero. Other BrainCube controls are not included in this arrangement. The message BXXX appears.
If XXXX appears or the display switches between BXXX and XXXX, there is probably a data link fault. In this case, check
the data link.
Select operating mode
• standby: select this if ComCube DCD | DCD TI is not to go into operation yet.
• a uto: select this if all requirements for start-up are fulfi lled, all settings have been made, and ComCube DCD | DCD TI is
to go into operation. After auto operation begins, note that: key lock
Start-up is now complete. ComCube works automatically.
off
Show selected BrainCube No.
 push Enable BrainCube for ComCube operation
}
1
2
push Select an available BrainCube No.
3
If a BrainCube No. is already assigned, it no longer appears in the selection list.
4
push Exit the *ComCube* menu
• S et language, date and time;
Standard languages: de, en, fr, nl,
other languages on request.
• Check signal transfer to building management system.
• S et BrainCube No. This setting is required in order to establish communications.
• S et IP inputs, OP outputs.
If no settings are made, the ComCube DCD | DCD TI uses the factory settings.
: page 58
page 56. The links to all connected BrainCubes are
:
can be activated if desired (:
de
fr
en
nl
(: pages 59 | 60),
page 56).
