Operating -
Installation | Function
ComCube is a communication module that extends the BrainCube control functionality, as applied in Compresso, Transfero,
Pleno and Vento. There are two types: digital ComCube DCD and analogue ComCube DCA. The two can also be used in
combination.
ComCube DCA
PIS pressure and LIS content frequently have to be sent in simple form to the building management system. The ComCube DCA
| DCA TI provides 2 galvanically isolated 4 – 20 mA analogue outputs.
Compresso |
Transfero
PIS
LIS

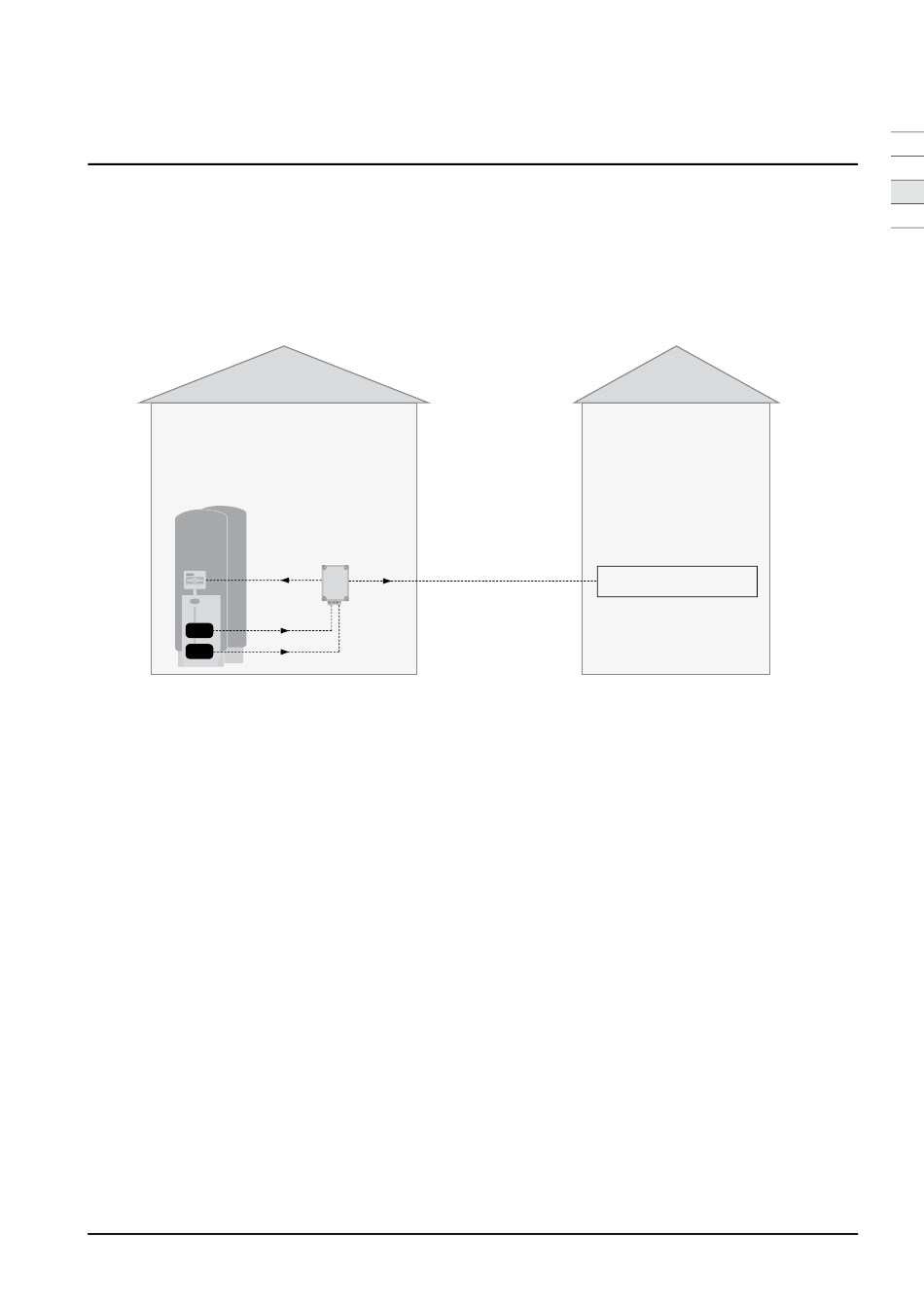

ComCube DCA is connected between the BrainCube and the LIS and PIS sensors. The 2 outputs are connected to the build-
ing management system.
ComCube DCA
Final equipment |
Building management system
