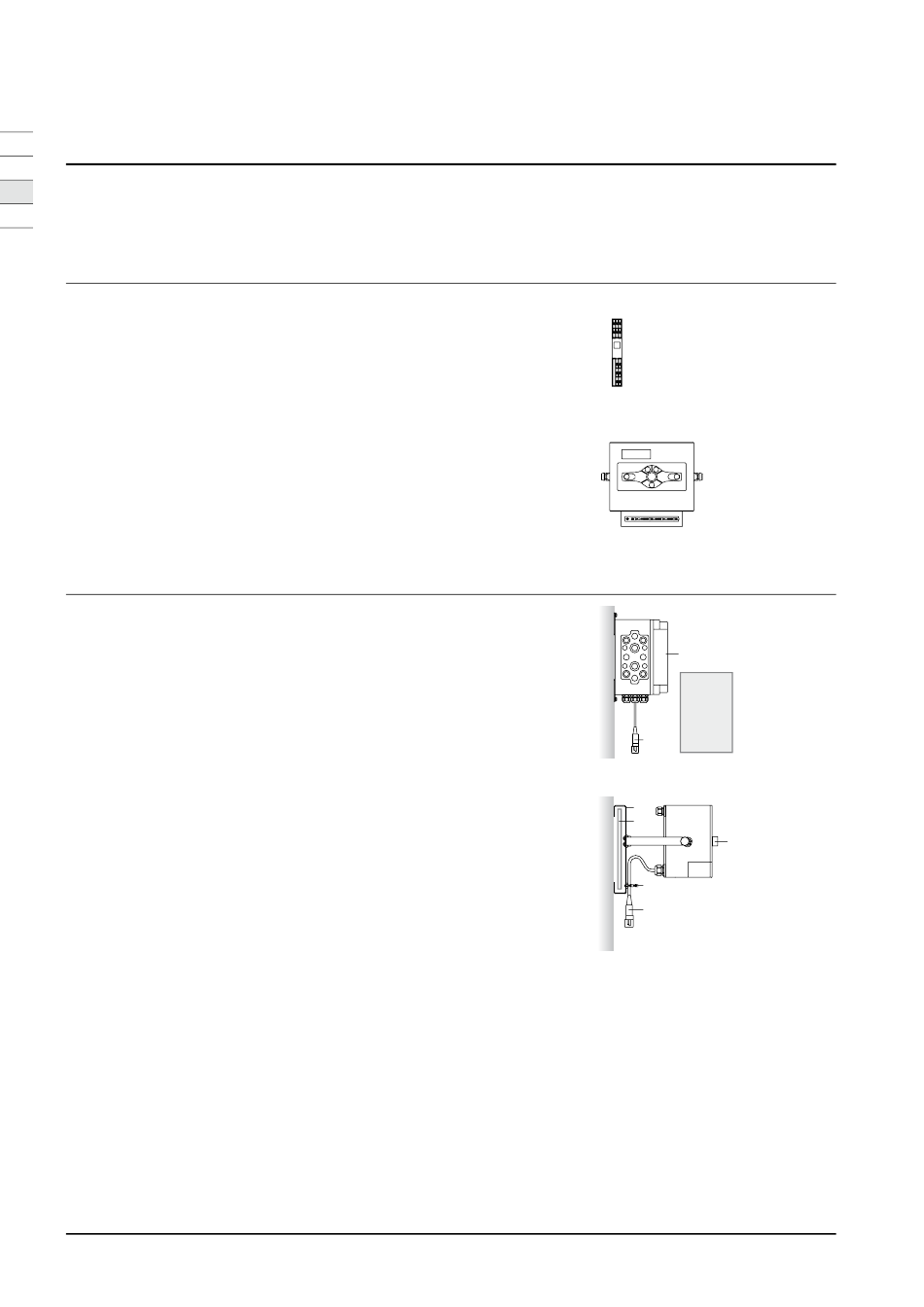

Scope of delivery

de
fr
en
The scope of delivery is indicated on the delivery note and may include other products in addition to ComCube. Intermediate
storage is required in a dry room protected from frost. Various ComCube communication modules are available.
nl
Factory-fi tted
Factory-fi tted in Transfero TI
ComCube DCA TI - Analogue communication module, fully wired
on mounting rail in PowerCube panel.
ComCube DCD TI - Digital communication module, all inputs and
outputs fully wired to terminal strips in the PowerCube panel.
Wall mounting
ComCube DCAP - Analogue communication module for
BrainCube controls, fi xing elements for optimal cable management.
• ComCube DCA is fastened to the wall using the mounting plates.
4 screws and wall plugs are provided.
• Set the wall plugs in the wall corresponding to the positions of
the holes in the mounting plates, hold ComCube DCA, and fasten
with the screws.
ComCube DCD - Digital communication module for BrainCube
controls, fi xing elements for optimal cable management.
• ComCube DCD is fastened horizontally to the wall using the
mounting plate (3).
• Fix 2 screws into the wall corresponding to the positions of the
mounting slots.
• Mount the ComCube DCD and fasten with screws.
Legend
1
ComCube
1.2

Mains plug

2
Fixing elements for customer cables
3
Base plate
4
Documents map
- Installation | Operating instructions
- Isolating amplifi er operating
instructions of the manufacturer
- Wiring diagram 7521045
(pouze pro ComCube DCA)
48
1
4
1.2
3
4
1
2
1.2
