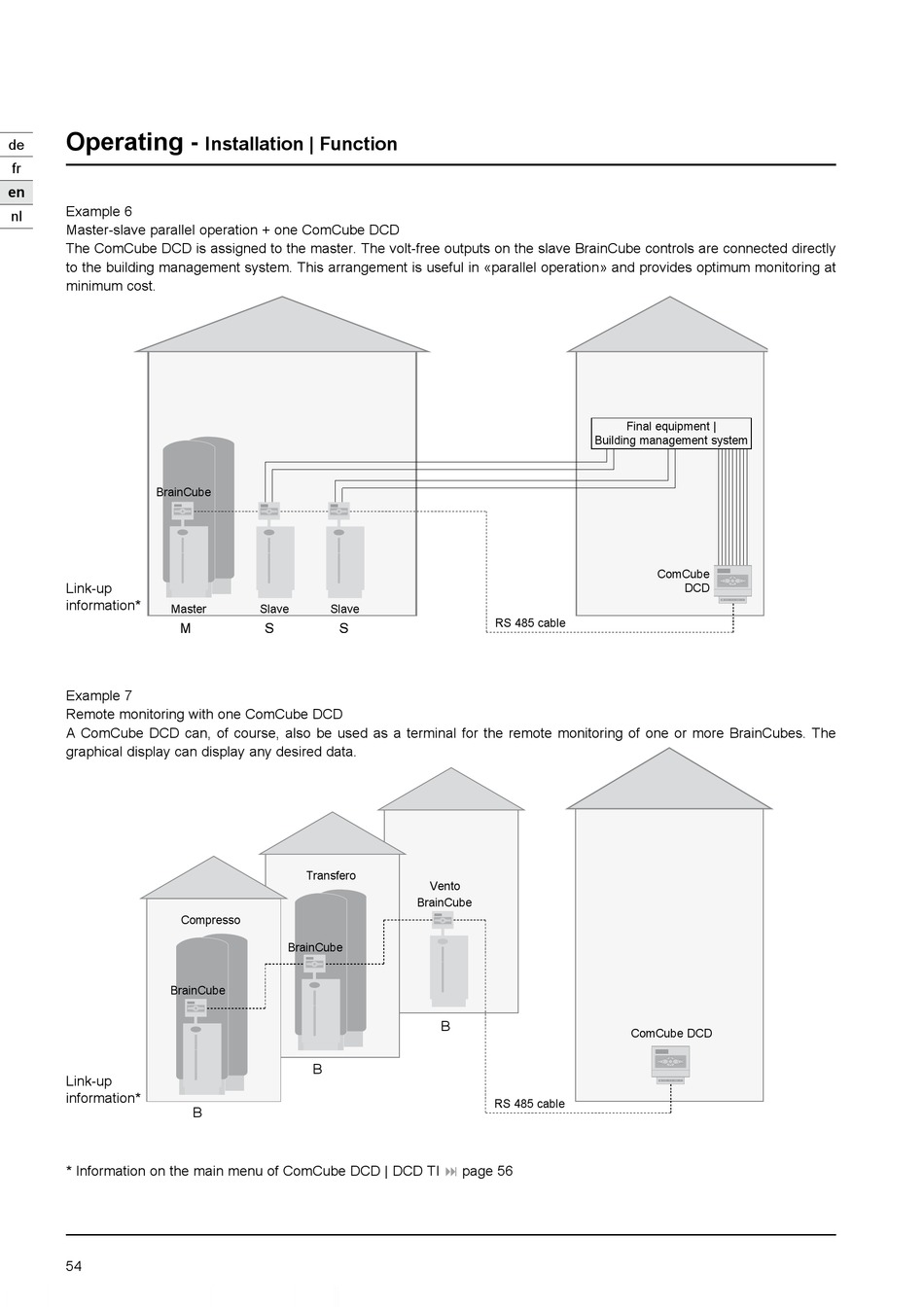

Example 6
nl
Master-slave parallel operation + one ComCube DCD
The ComCube DCD is assigned to the master. The volt-free outputs on the slave BrainCube controls are connected directly
to the building management system. This arrangement is useful in «parallel operation» and provides optimum monitoring at
minimum cost.
BrainCube
Link-up
information*
Master
M M
Example 7
Remote monitoring with one ComCube DCD
A ComCube DCD can, of course, also be used as a terminal for the remote monitoring of one or more BrainCubes. The
graphical display can display any desired data.
Compresso
BrainCube
Link-up
information*
* Information on the main menu of ComCube DCD | DCD TI
