Installation | Function

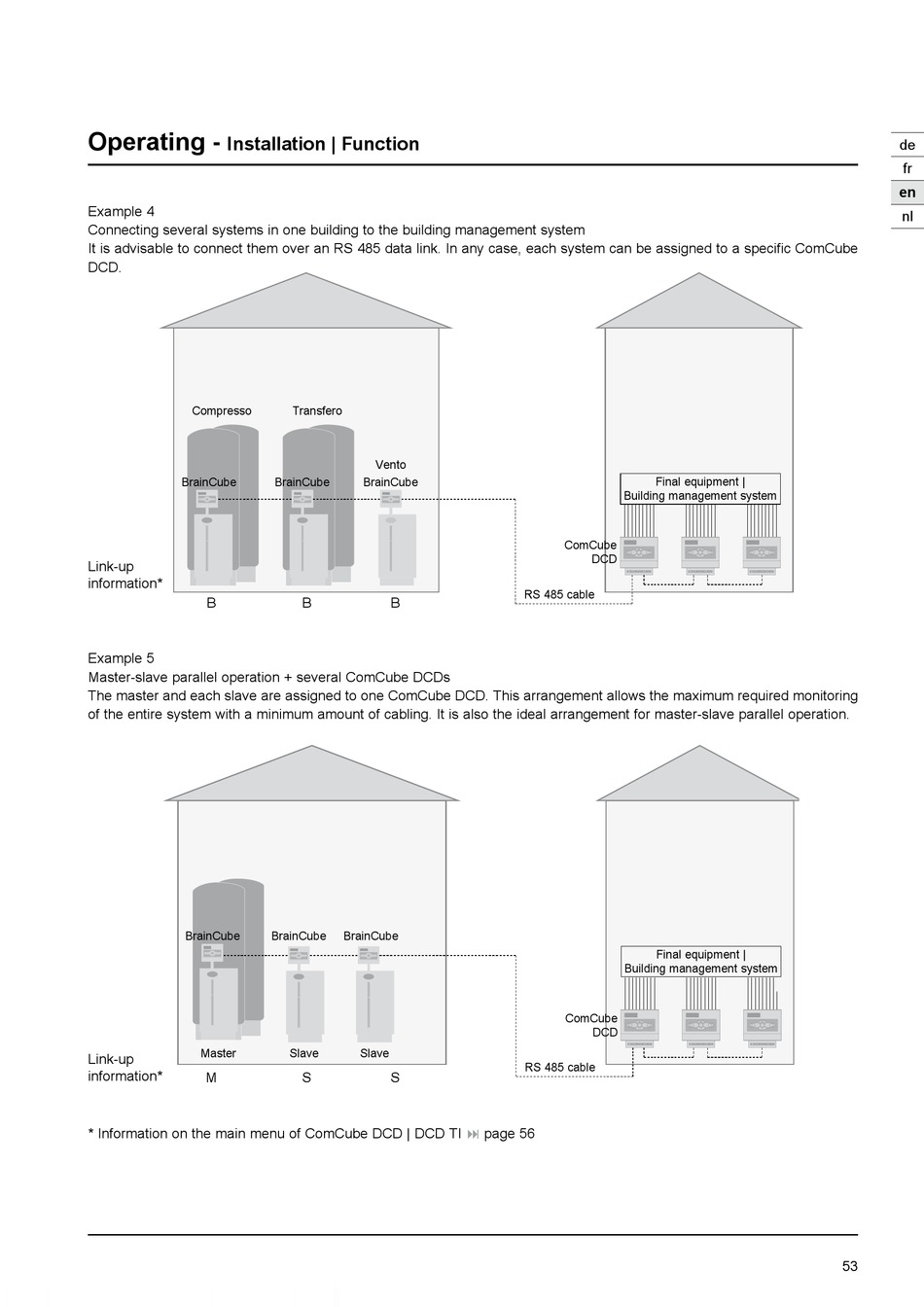

Example 4
Connecting several systems in one building to the building management system
It is advisable to connect them over an RS 485 data link. In any case, each system can be assigned to a specific ComCube
DCD.
Compresso
BrainCube
Link-up
information*
B
Example 5
Master-slave parallel operation + several ComCube DCDs
The master and each slave are assigned to one ComCube DCD. This arrangement allows the maximum required monitoring
of the entire system with a minimum amount of cabling. It is also the ideal arrangement for master-slave parallel operation.
BrainCube
Master
Link-up
information*
M
* Information on the main menu of ComCube DCD | DCD TI
Transfero
Vento
BrainCube BrainCube
B B
BrainCube BrainCube
Slave Slave
S S
Building management system
ComCube
DCD
RS 485 cable
Building management system
ComCube
DCD
RS 485 cable
page 56
:
