Operating -
Installation | Function

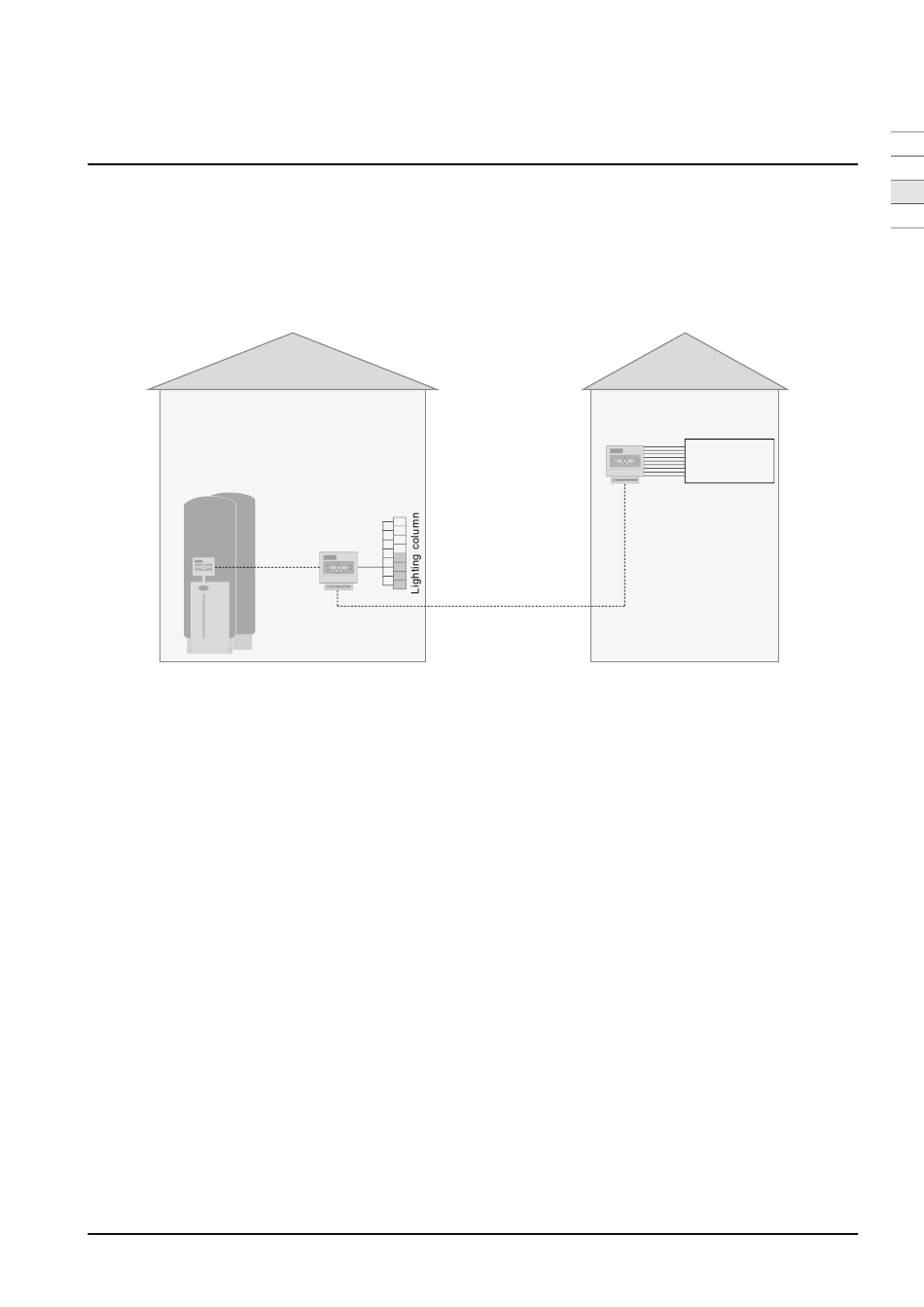

Example 1
Visualisation and building management system
ComCube DCD No.1: RS 485 signals on 9 outputs to represent water level, for example min., 20%, 30%, 40%, 50%, 60%,
70%, 80%, max.
ComCube DCD No.2: RS 485 signals on 9 outputs, for example representing min./standard/max. water level, min./standard/
max. pressure, compressor on, spill valve open, water make-up on.
Compresso |
Transfero
BrainCube
It is advisable to install ComCube DCD No. 2 directly in the building management system, as this will greatly reduce the
amount of wiring required for the 9 outputs.
ComCube DCD
No.1
RS 485
cable
ComCube DCD
No.2
RS 485 cable
Final equipment |
Building manage-
ment system
