Operating - IMI PNEUMATEX ComCube Montageanleitung

Operating -

de
fr
en

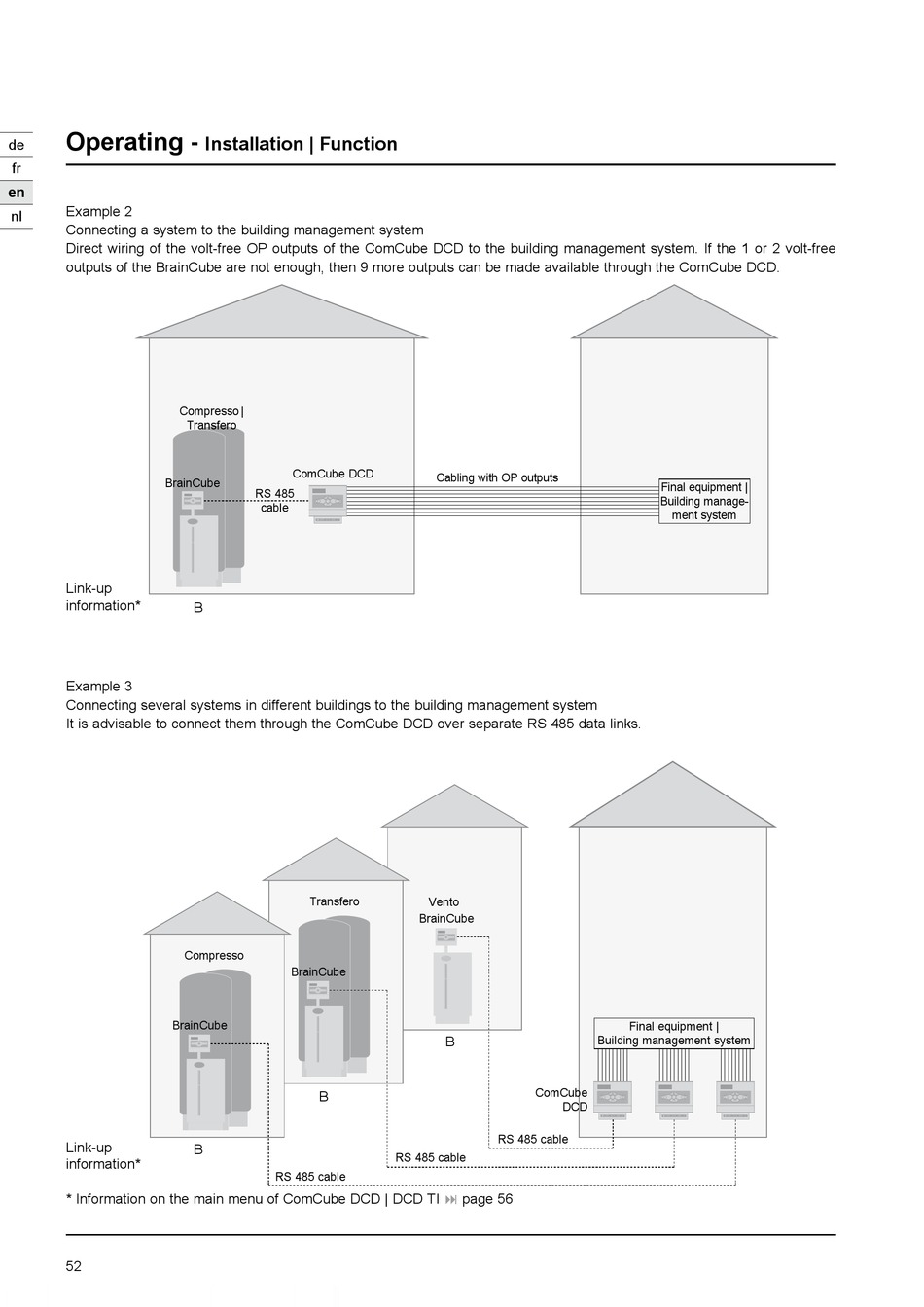

Example 2
nl
Connecting a system to the building management system
Direct wiring of the volt-free OP outputs of the ComCube DCD to the building management system. If the 1 or 2 volt-free
outputs of the BrainCube are not enough, then 9 more outputs can be made available through the ComCube DCD.
Compresso |
BrainCube
Link-up
information*
Example 3
Connecting several systems in different buildings to the building management system
It is advisable to connect them through the ComCube DCD over separate RS 485 data links.
BrainCube
Link-up
information*
* Information on the main menu of ComCube DCD | DCD TI
52
Installation | Function
Transfero
ComCube DCD
RS 485
cable
B
Transfero
Compresso
BrainCube
B
B
RS 485 cable
Cabling with OP outputs
Vento
BrainCube
B
ComCube
DCD
RS 485 cable
RS 485 cable
page 56
:
Final equipment |
Building manage-
ment system
Final equipment |
Building management system
