Operating Displays - IMI PNEUMATEX ComCube Montageanleitung

Operating -
Programmable
ComCube DCA
To use and operate the integrated isolating amplifier, read the Isolating amplifier operating instructions of the manufacturer.

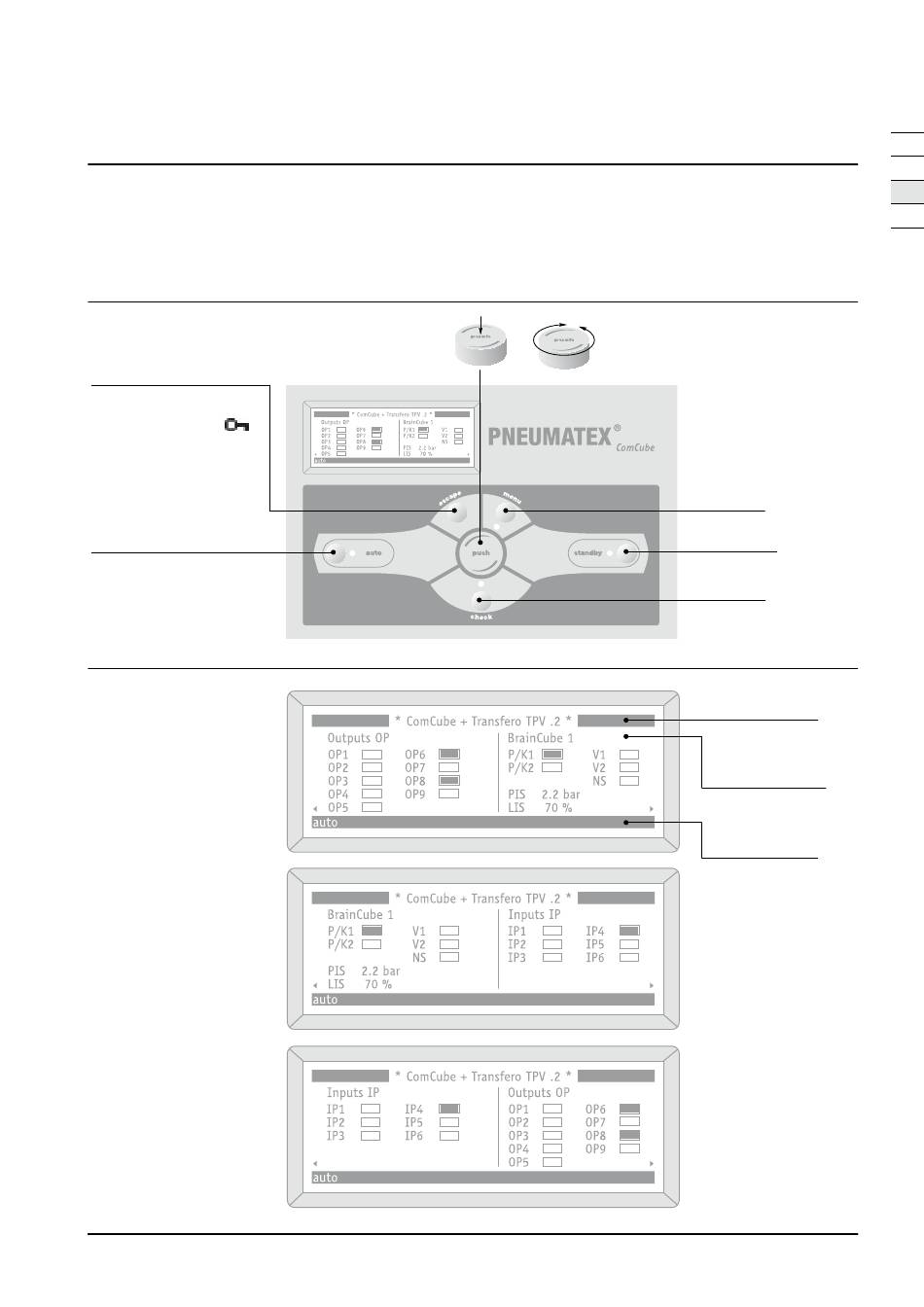

ComCube DCD - Keyboard and display
escape
Back,
Key lock
Press key lock for 5 s until « »
appears. Press again for 5 s to
release the key lock.
auto
Automatic operation

Operating displays

Illuminated display
Light goes off 60 s after last
operator action. Activated by
the scroll or other key.
Change between operating
displays using scroll.
push – confirm, open scroll – select, modify, change view
menu
Main menu
standby
Display only
check
Function check
Message row 1
ComCube +
equipment type
Information row
Inputs, Outputs,
BrainCube No.
Message row 2
Operating mode,
Most recent message
de
fr
en
nl
