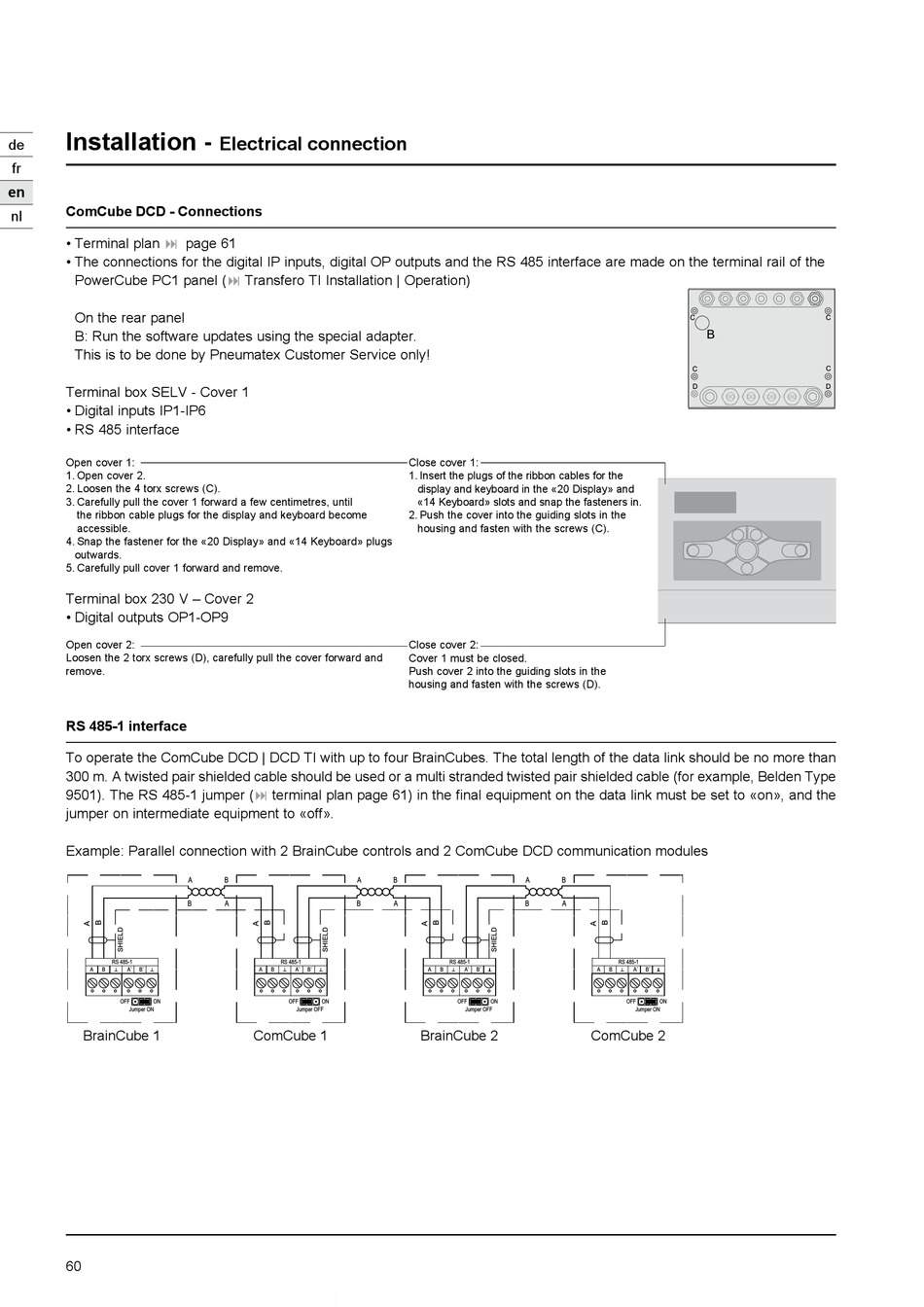

ComCube DCD - Connections
nl
• Terminal plan :
• The connections for the digital IP inputs, digital OP outputs and the RS 485 interface are made on the terminal rail of the
PowerCube PC1 panel
On the rear panel
B: Run the software updates using the special adapter.
This is to be done by Pneumatex Customer Service only!
Terminal box SELV - Cover 1
• Digital inputs IP1-IP6
• RS 485 interface
Open cover 1:
1. Open cover 2.
2. Loosen the 4 torx screws (C).
3. C arefully pull the cover 1 forward a few centimetres, until
the ribbon cable plugs for the display and keyboard become
accessible.
4. Snap the fastener for the «20 Display» and «14 Keyboard» plugs
outwards.
5. Carefully pull cover 1 forward and remove.
Terminal box 230 V – Cover 2
• Digital outputs OP1-OP9
Open cover 2:
Loosen the 2 torx screws (D), carefully pull the cover forward and
remove.
RS 485-1 interface
To operate the ComCube DCD | DCD TI with up to four BrainCubes. The total length of the data link should be no more than
300 m. A twisted pair shielded cable should be used or a multi stranded twisted pair shielded cable (for example, Belden Type
9501). The RS 485-1 jumper (: terminal plan page 61) in the final equipment on the data link must be set to «on», and the
jumper on intermediate equipment to «off».
Example: Parallel connection with 2 BrainCube controls and 2 ComCube DCD communication modules
RS 485-1
A
B
A`
B`
OFF
ON
Jumper ON
BrainCube 1
60
Electrical connection
page 61
(:
Transfero TI Installation | Operation)
A
B
A
B
A
B
RS 485-1
A
B
A`
B`
OFF
ON
Jumper OFF
ComCube 1
Close cover 1:
1. Insert the plugs of the ribbon cables for the
display and keyboard in the «20 Display» and
«14 Keyboard» slots and snap the fasteners in.
2. Push the cover into the guiding slots in the
housing and fasten with the screws (C).
Close cover 2:
Cover 1 must be closed.
Push cover 2 into the guiding slots in the
housing and fasten with the screws (D).
B
A
B
A
B
A
RS 485-1
A
B
A`
B`
OFF
ON
Jumper OFF
BrainCube 2
C
B
C
D
RS 485-1
A
B
A`
B`
OFF
ON
Jumper ON
ComCube 2
C
C
D
