3.3 Functional description

The AT2000 CPK is an electrically powered system
for bundling electrical wires, for example, and for
securing parts of various kinds with T18RA cable ties,
100 mm × 2.5 mm × 1 mm (L × W × T).
Force and quality of the binding can be software-
controlled or set by means of the display on the device.
The items to be bundled have to be positioned between
the jaws and against the end cap. The device then closes
the tie as soon as the trigger is pressed.
If a fault occurs, messages appear on the display to
step the user through the recommended fault-diagnosis
routine.
Process data of various kinds are collected during use.
These data can be analysed by PC software and used to
document process capability, for example. In addition,
the operator is notiied if the tension force exceeds the
preset.
The AT2000 CPK can be integrated into automatic systems
by means of a serial interface on the power pack CPK.

3.4 Transporting the device

f Always use the case that comes with the device to
transport the AT2000 CPK.

3.5 Disposal

End-of-life (EOL) disposal of the device and individual
subassemblies and the disposal of consumables and
auxiliaries are subject in part to statutory regulations.
Detailed information is available on request from the
appropriate authorities (e.g. regional or national water
boards or environmental authorities).
f Dispose of packaging materials.
Always dispose of packaging materials in accordance with
the currently valid materials-disposal and environmental-
protection regulations.
f Always take materials for disposal to certiied collection
points.
f Contact the manufacturer if there is any uncertainty
regarding disposal.
AT2000 CPK • Operating Instructions • 04-2015 • 106-29004

4 Assembly

4.1 Installing accessories

f Always proceed in accordance with the instructions
supplied with the accessory in question.

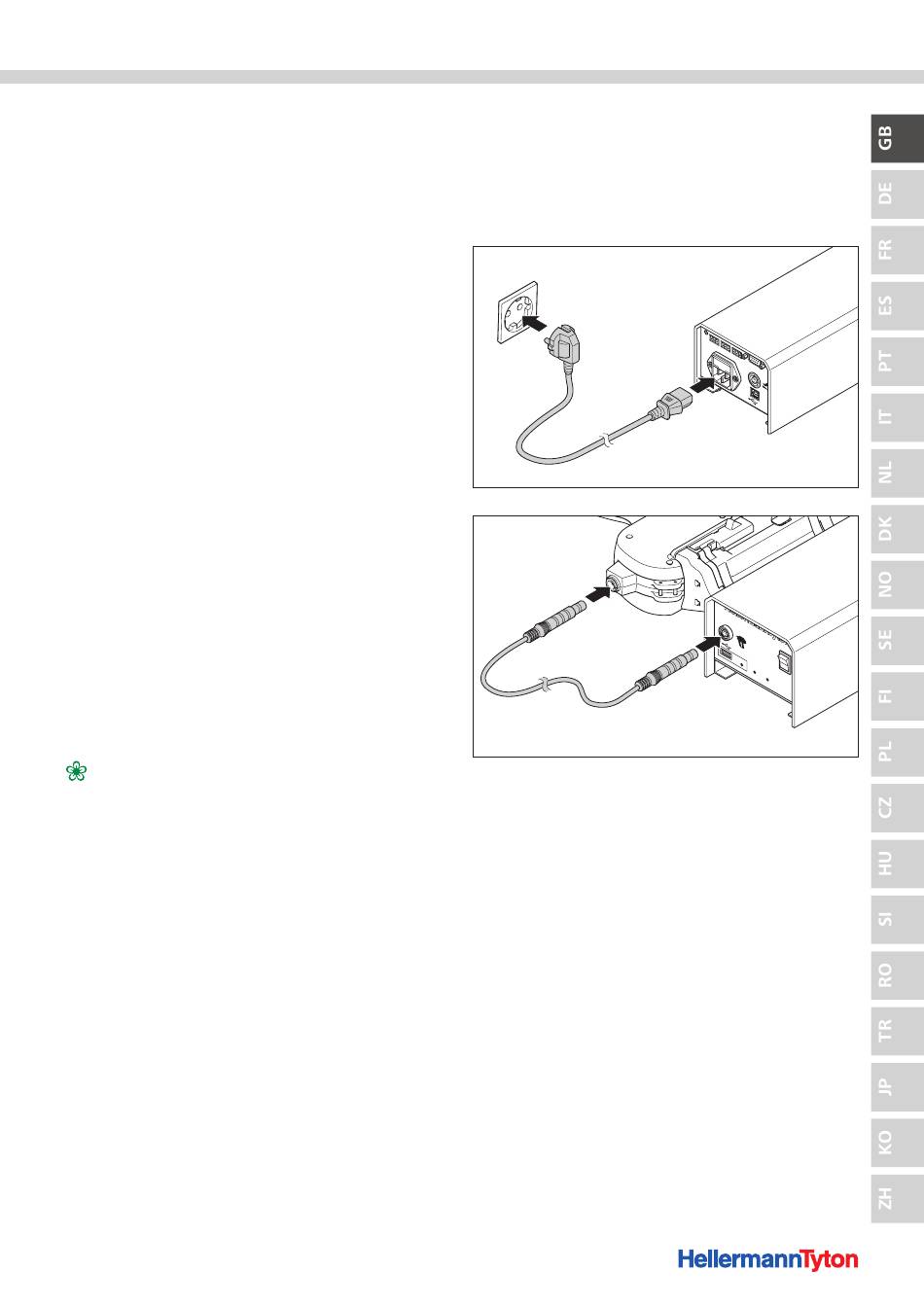

4.2 Connecting the device

f Connect the power pack CPK to the power-supply outlet.
f Connect the power pack CPK to the AT2000 CPK.
Assembly
L a
s t
T ie
E rr
o r
B u
s y
E x
te rn
a l
A T
2 0
0 0
C P
K P
o w
e r
P a
c k
D a
ta
S ig
n a
l
P o
w e
r
