Design and function

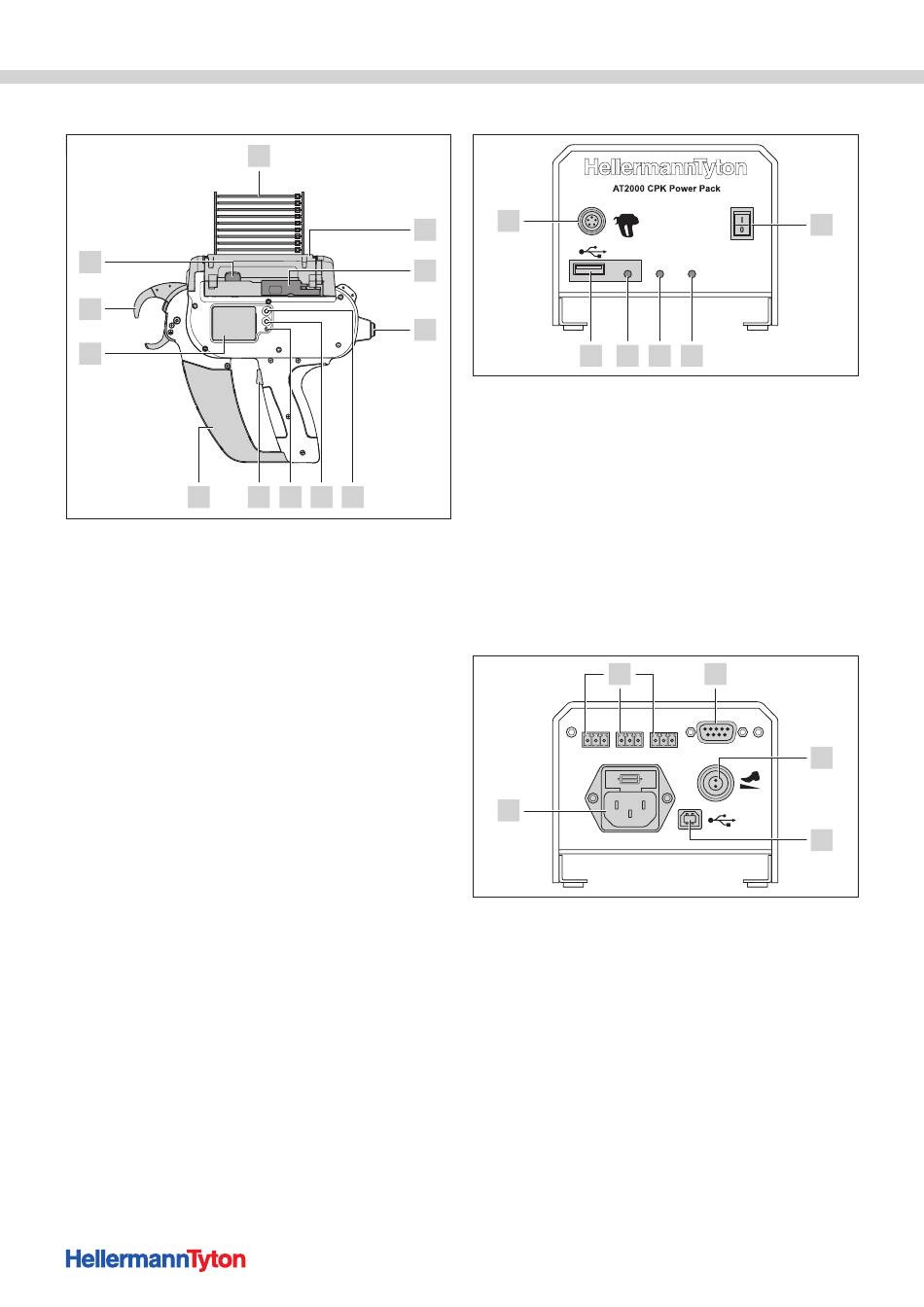

3.2.1 AT2000 CPK

11
10
9
8
1 Release button for front cover
2 Trigger for bandoleer cutter
3 Socket for connection to power pack CPK
4 Enter button for conirming a selection
5 Select and reset button for selecting a menu
6 Signal LED:
Green: AT2000 CPK connected and ready
Red: Fault
7 Trigger
8 Waste container
9 Display with touch-sensitive controls
10 End cap with front sensor, top and bottom jaws
11 Release button for gate
12 Cable ties
10
12
1
2
3
7 6 5 4

3.2.2 Power pack CPK

6
Data
5 4
1 Main switch
2 Power LED:
Green: Power pack CPK switched on
3 Signal LED:
Green: AT2000 CPK connected and ready
Red: Fault
Yellow: Binding cycle active
Blue: Navigation in main menu, binding not possible
4 Data LED:
Green: PC connected; AT2000 CPK connected; USB memory stick found; USB
memory stick can be removed
Red/green lashing: Data are being written to the USB memory stick
5 USB port for exporting process data to USB memory stick
6 Socket for connection to AT2000 CPK
5
Last Tie Error
max. 250V~
4
1 Socket for serial interface (article No. 106-00110 only)
2 Socket for foot-operated switch (article No. 120-00065 only)
3 USB port for connection to PC
4 Socket for power supply
5 Sockets for external sensors (article No. 106-00110 only):
Last Tie: Sensor input signal
Busy: Busy output signal
Error: Error output signal
AT2000 CPK• Operating Instructions • 04-2015 • 106-29004
1
Signal Power
3 2
1
Busy
External
2
3
