Multilift II ESD / Multilift II telescope ESD
6.4.5
Multilift II ESD / Multilift II telescope ESD is a special variant for use in ESD workstations. An
electrical sliding contact between the inner and outer profiles allows an electrical conductive
connection. Electric charges can be discharged onto an ESD-capable floor. The electrical
connection of the profiles in the Multilift II ESD / Multilift II telescope ESD has a maximum
resistance of 100 Ohm.
When the lifting column is connected to a whole system
(e.g. workstation), make sure that there is a conductive
connection between all components. This can be carried out
using ESD-capable assembly plates and bases as well as
PA slot stones, for example.
The effectiveness of the electrical connection on the
Multilift II ESD / Multilift II telescope ESD must be checked
before putting into service and regularly during operation as
part of the ESD monitoring.
The plastic materials used in the
Multilift II ESD / Multilift II telescope ESD are not
ESD conducting.

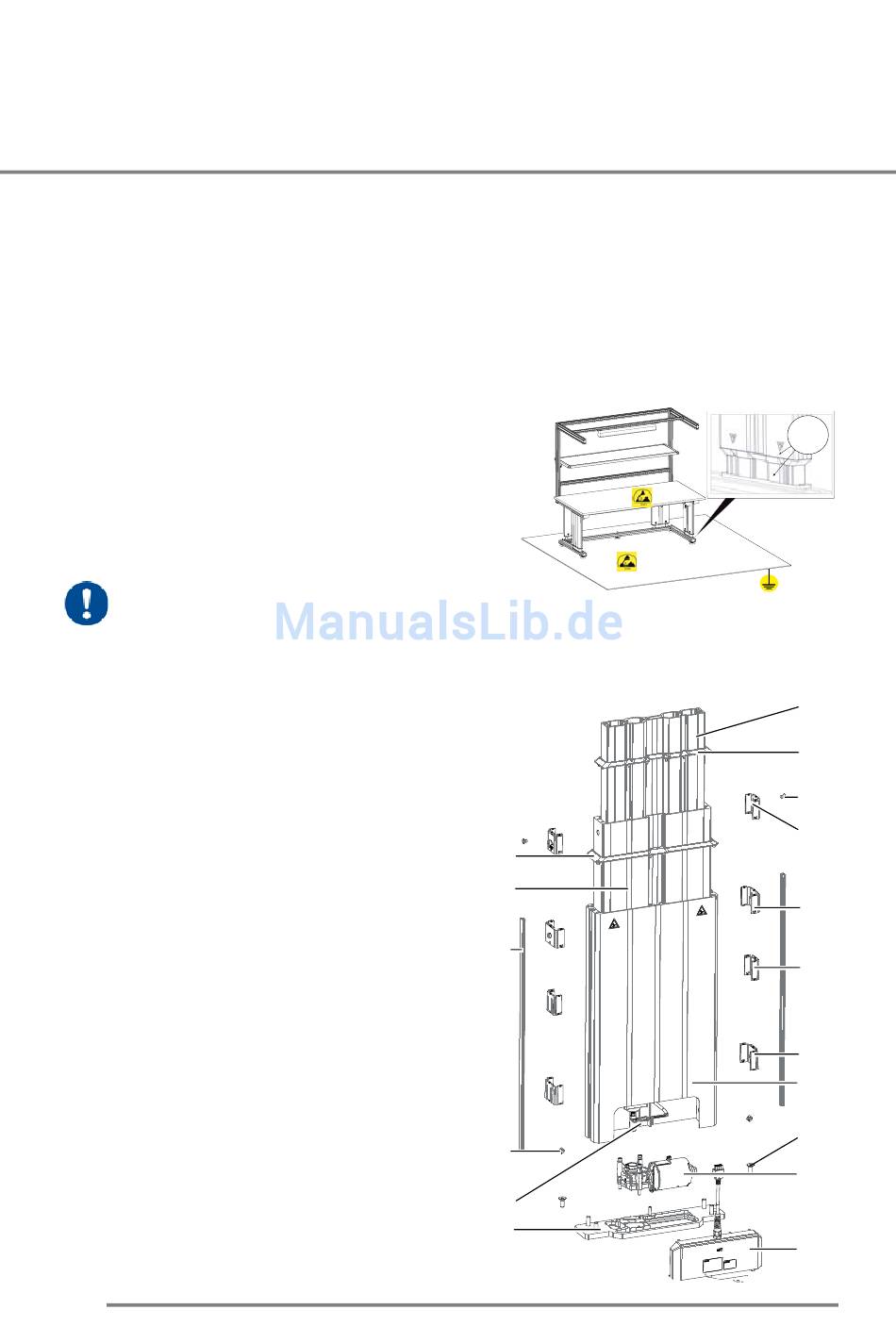

6.4.5.1 Overview Multilift II telescope

1 Inner profile
2 Centre profile end cap
3 Plug
4 Bearing shell, inner/top
5 Bearing shell, outer/top
6 Bearing shell, inner/bottom
7 Bearing shell, outer/bottom
8 Outer profile
9 Fastening screw
10 Motor
11 Motor end cap
12 Outer profile end cap
13 Centre profile
14 Cover profile
15 Slot stone
16 Limit switch bar
17 Assembly plate
64
12
13
14
15
16
17
R
MAX
100 Ohm
1
2
3
4
5
6
7
8
9
10
11
