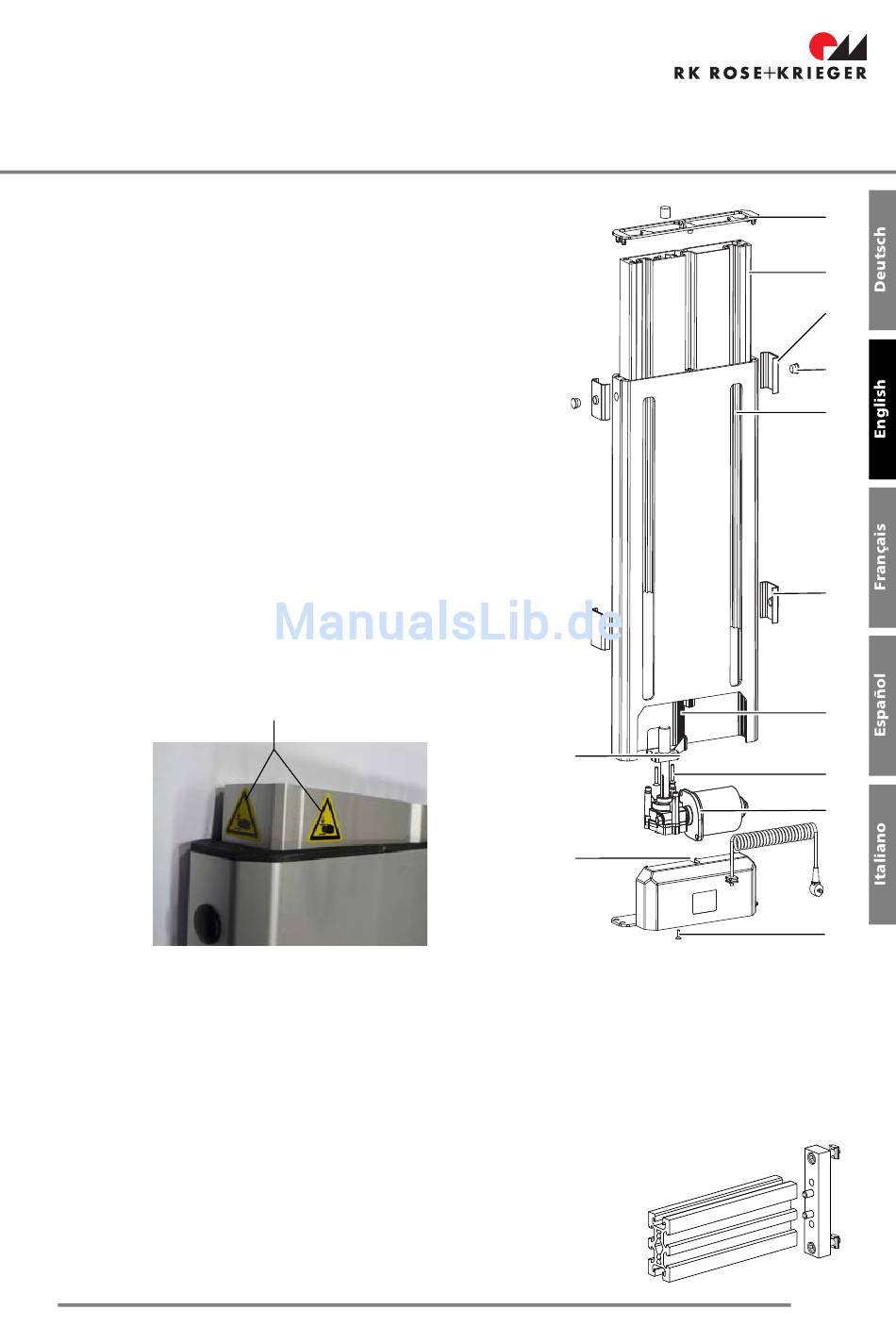

6.3.3 Overview

1 End cap
2 Inner profile
3 Bearing shell, outer
4 Plug
5 Outer profile
6 Bearing shell, inner
7 Limit switch bar
8 Countersunk-head screw M5 x 12
9 Drive unit
10 Countersunk-head screw M4 x 12
11 Motor holder
12 Guide nut
13 Warning stickers
Applies for configuration B only (with milled recess)
If fixing in the longitudinal grooves of the inner profile, use spacer blocks which protrude at least
2 mm out of the outer profile.
The four M8 screws for connecting to the slot stones of the inner profile must be screwed tight
and carefully. Additionally, lock washers must be used.

6.3.3.1 Cross-member

Only fit the adapter bar to the groove end of the Multilift I
(motor side) when it is retracted, to prevent it "bottoming
out".
13
6. Product information
12
11
Multilift Mono, configuration B
(with milled recess)
1
2
3
4
5
6
7
8
9
10
