ASSEMBLY
The device must be carefully assembled by an adult. If in doubt, ask
someone with more experience in this field for help.
• Before starting assembly, make sure that the set
with the device contains all the elements from the parts list and
whether any elements have been damaged during transport. In
the event of missing elements or reservations, contact the
seller.
•
Familiarize yourself with the drawings and explanations and
carry out the assembly in the order contained in the assembly
instructions.
• Be careful during assembly. There is a risk of injury when using
tools and components.
• Remember to maintain a safe environment.
Do not spread tools and assembly elements chaotically.
Remember that plastic films and bags pose a risk of suffocation
for children.
• Assembly elements needed to perform a given step of the
assembly instructions are shown in the drawings and
explanations. Use the elements indicated in Assembly
instructions.
• In the initial assembly stages, do not fully tighten the parts. Do
this after placing all of them and making sure they are properly
seated.
• The manufacturer reserves the right to pre-assemble some
parts.
ASSEMBLY DIAGRAM (→ See page 2)
NOTE! It is forbidden to use parts from sources other than the
manufacturer.

PARTS LIST

No. Description
1 Rear main frame
2 Front support tube
3 Pillow backrest
4 Bench support tube
5 Front support foot
6 Rear support foot
7 Seat cushion adjuster
8 Handle grip tube
9 Handrail tube
10 Swing tube
11 Connecting strap
12 Supporting washer with screws
13 Inner ring pipe end cap
14 Pedal
15 Foam
16 Knob
17 Knob
18 End cap
19 Screw M10×115
20 Screw M10×70
21 Screw M10×60
22 Washer D8
23 Spring washer D8
24 Screw M8×30
25 Screw M8×20
26 Screw M8×60
27 Nut M10
28 Curved washer D8
29 Nut cap M8
30 Washer D10
ASSEMBLY INSTRUCTION (→ See page 2)
ATTENTION! During assembly, follow the steps below and use the tools
included with the product.
Prepare enough free space for the device assembly.
Due to the heavy weight of some components, assembly by two people
is recommended.

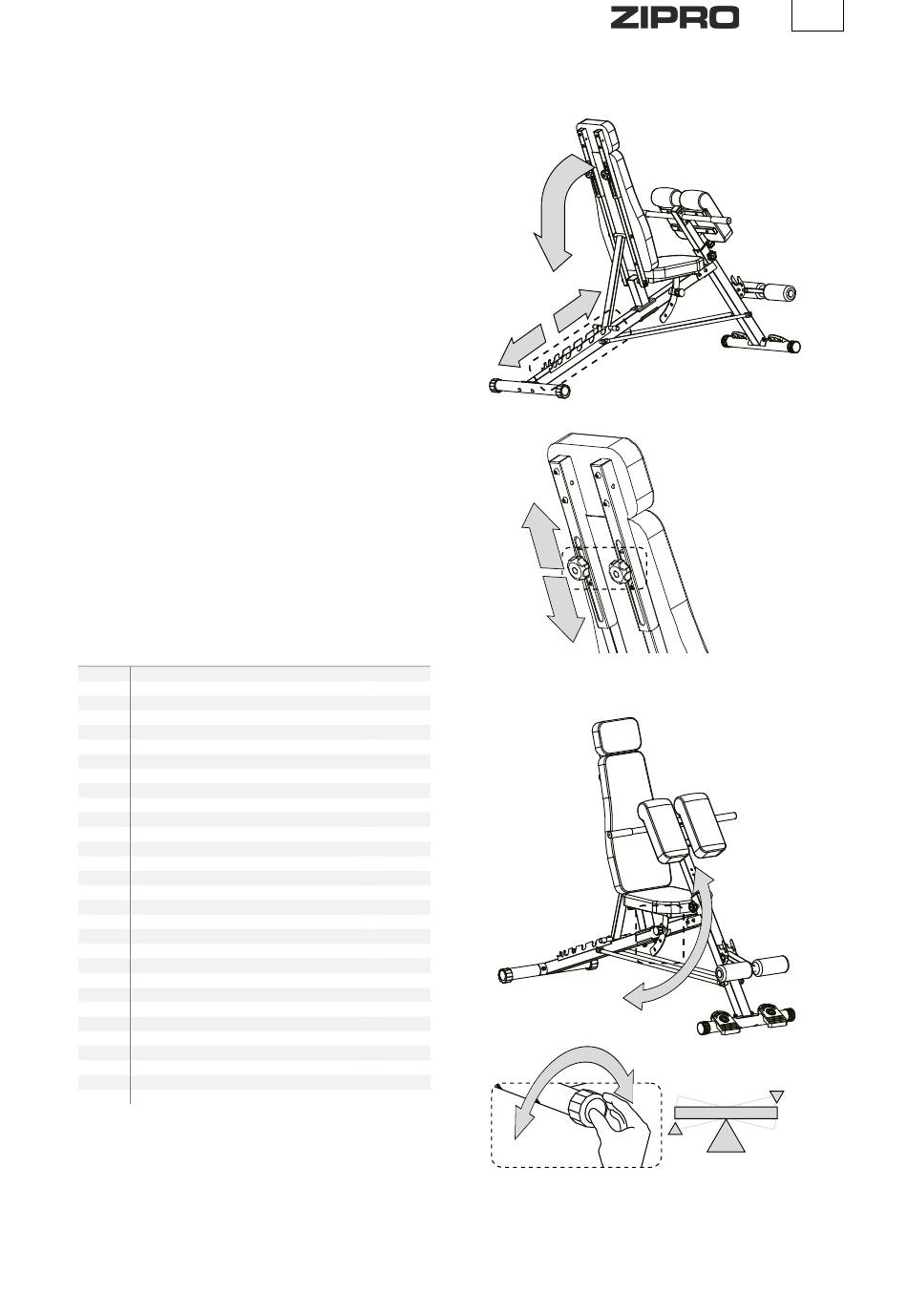

ADJUSTMENT INSTRUCTION
Adjustablebackrestand
There are 7 holes in the rear main frame. To adjust the backrest tilt
angle, lift the backrest and place the backrest cushion base in the
appropriate hole on the rear main frame, and then securely seat the
adjustment mechanism in the frame.
Quantity
Adjustablement of the seat
1
There are 3 adjustment holes on the tube securing the seat cushion. To
1
adjust the tilt angle of the seat cushion, manually pull out the spring
1
pin and then set the cushion in the appropriate adjustment hole.
2
1
1
1
1
2
1
1
2
2
2
2
2
1
1
2
4
3
2
2
4
2
4
9
4
4
9
Adjustablement of the cushion supporting
There are 7 adjustment holes on the front adjustment tube. To adjust
the supporting cushion, lift the elbow support cushion, then manually
pull out the spring pin, set the cushion to the appropriate height, and
re-insert the spring pin into the adjustment hole.
