EN
• Prior to the assembly, make sure the set contains all
the listed elements and whether none of the parts was damaged
during transport. If any parts are missing or you have any other
reservations, contact the seller.
• Have a look at the drawings and explanations and follow the
assembly manual when assembling the device.
•
Be careful during the assembly. There is a risk of injury when
using the tools and parts.
ASSEMBLY DIAGRAM (→ See page 2)
ATTENTION! Do not use parts other than those provided by the manufacturer.

PARTS LIST

No. Description
1
Front stabiliser
2
Stabiliser support
3 Leg support
4 Main frame
5 Seat cushion
6 M8 60mm Bolt
7 M8 Washer
8
M8 Nut
9
Lock
10
M6 Washer
11
M6 50mm Bolt
12
Knob
13
Foam roller
14
Cap
15
Cap
16 Cap
17 Expander
ASSEMBLY MANUAL
CAUTION! Follow the steps below during the assembly and use tools supplied with the product.
Prepare sufficient space for the assembly operation.
It is advisable to assemble the product with another person because of the weight of some elements.
9
• Remember to keep your surroundings safe. Do not let tools and
parts lie around in chaos. Remember that plastic foil and bags
pose o suffocation risk to small children.
• Assembly parts necessary for a specific step in the assembly
manual are shown in pictures and included in instructions. Use
the elements indicated in the assembly manual.
•
Do not tighten parts completely during the first stages
of the assembly. Tighten connections after all parts are placed
and fitted properly.
• The manufacturer may have assembled some parts.
Quantity
1
1
1
1
1
1
2
1
1
4
4
2
6
6
2
1
2

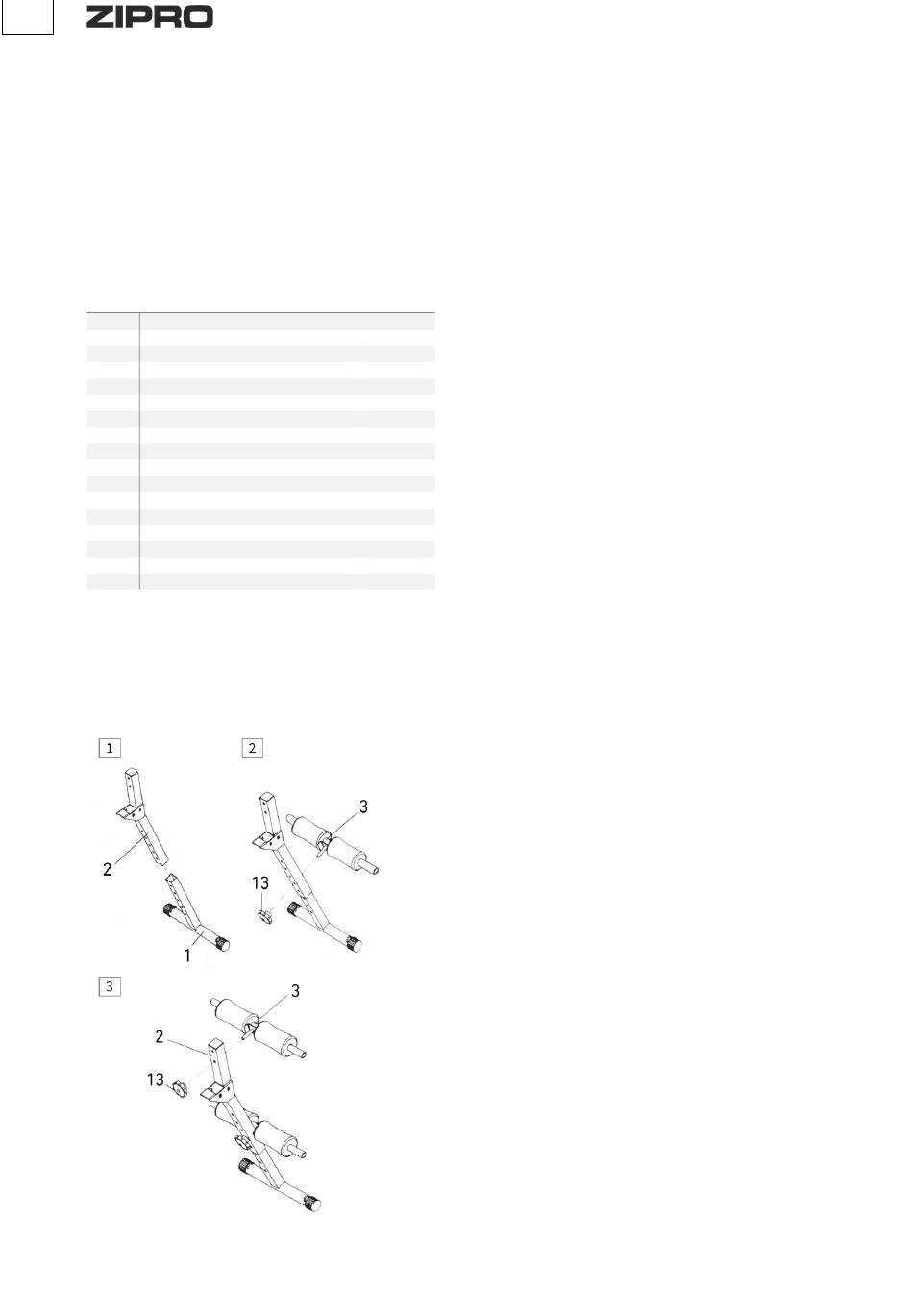

STEP 1.
Insert the front stabiliser (1) into the stabiliser support (2).
Lock the two parts at the correct height using the leg rest (3) and the knob (13).
NOTE: Changing the setting is also possible after the bench has been fully assembled.
STEP 2.
Fit the leg support (3) onto the stabiliser support(2) using the knob.
STEP 3.
Connect the main frame (4) to the stabiliser support (2) using bolts (6), washers (7)
and nuts (8). Insert the lock (9).
NOTE: Ensure the parts are correctly assembled, and the unit is stable before use.
