EN
•
Do not tighten parts completely during the first stages
of the assembly. Tighten connections after all parts are placed
and fitted properly.
ASSEMBLY DIAGRAM (→ See page 2)
ATTENTION! Do not use parts other than those provided by the manufacturer.
PARTS LIST
No.
Description
1
Main frame
2
Front stabiliser
2A
Back stabiliser
3
Installation kit
3.1
M8x60 Screw
3.2
D8 Flat Washer
3.3
M8 Nut
4
D10x60 Pin
5
Expander
6
13 mm /17 mm spanner
7
Support for adjustment
8
Rear stabilizer
9
Backrest
10
Seat
11
Leg lock
ASSEMBLY MANUAL
CAUTION! Follow the steps below during the assembly and use tools supplied with the product.
Prepare sufficient space for the assembly operation.
It is advisable to assemble the product with another person because of the weight of some elements.
9
•
The manufacturer may have assembled some parts.
Quantity
1
1
1
4
4
4
4
3
4
1
1
1
1
1

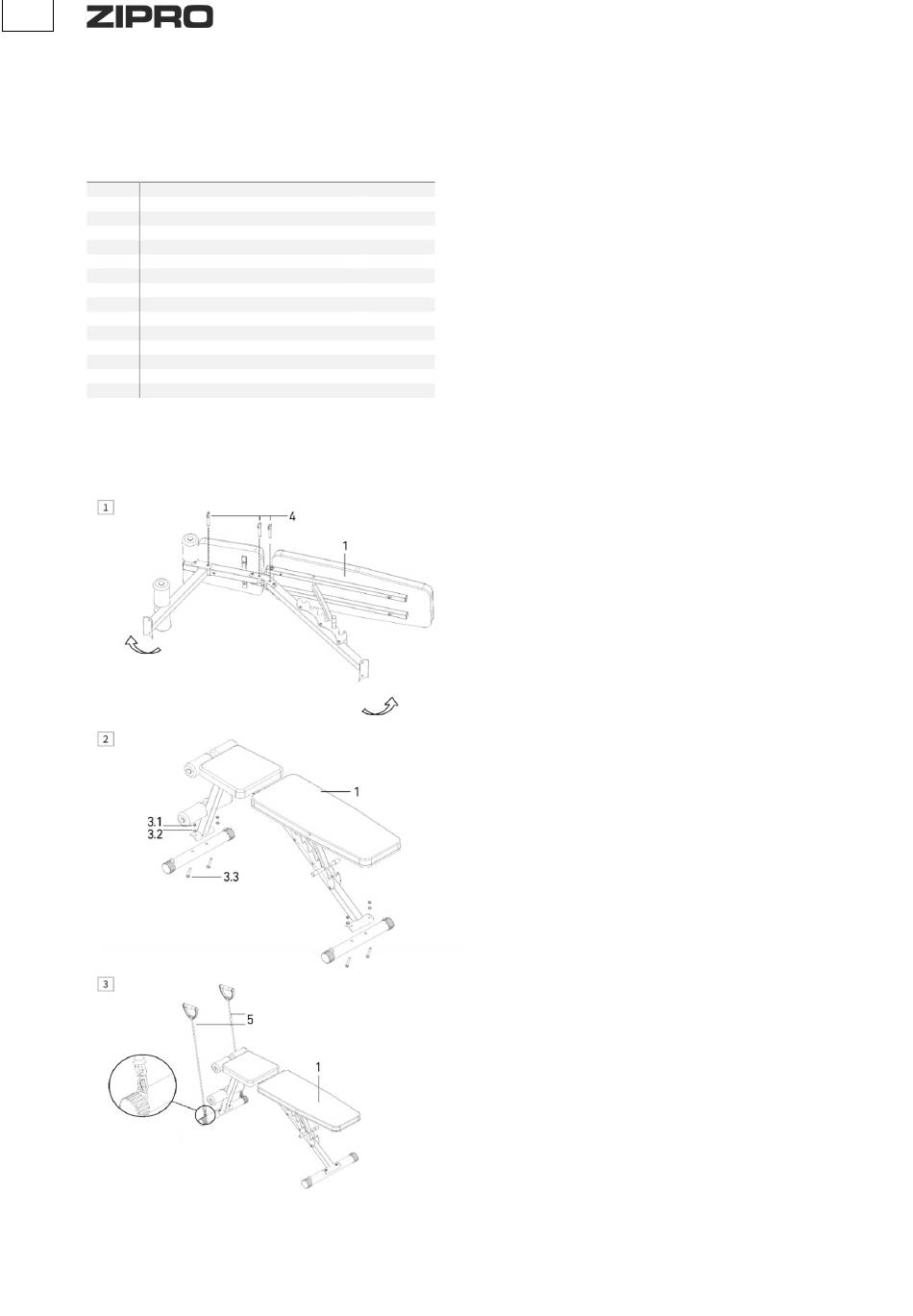

STEP 1.
Lay the main frame (1) on its side.
Open the main frame (1) and lock the seat and backrest into the holes
as shown.
Then align the holes and insert all three pins (4) into them.
STEP 2.
Mount the front stabiliser (2) to the main frame (1) using the mounting
kit: bolts (3.3), washers (3.2) and nuts (3.1).
STEP 3.
Attach the expanders (5) to the holes on either side of the stabiliser (2).
