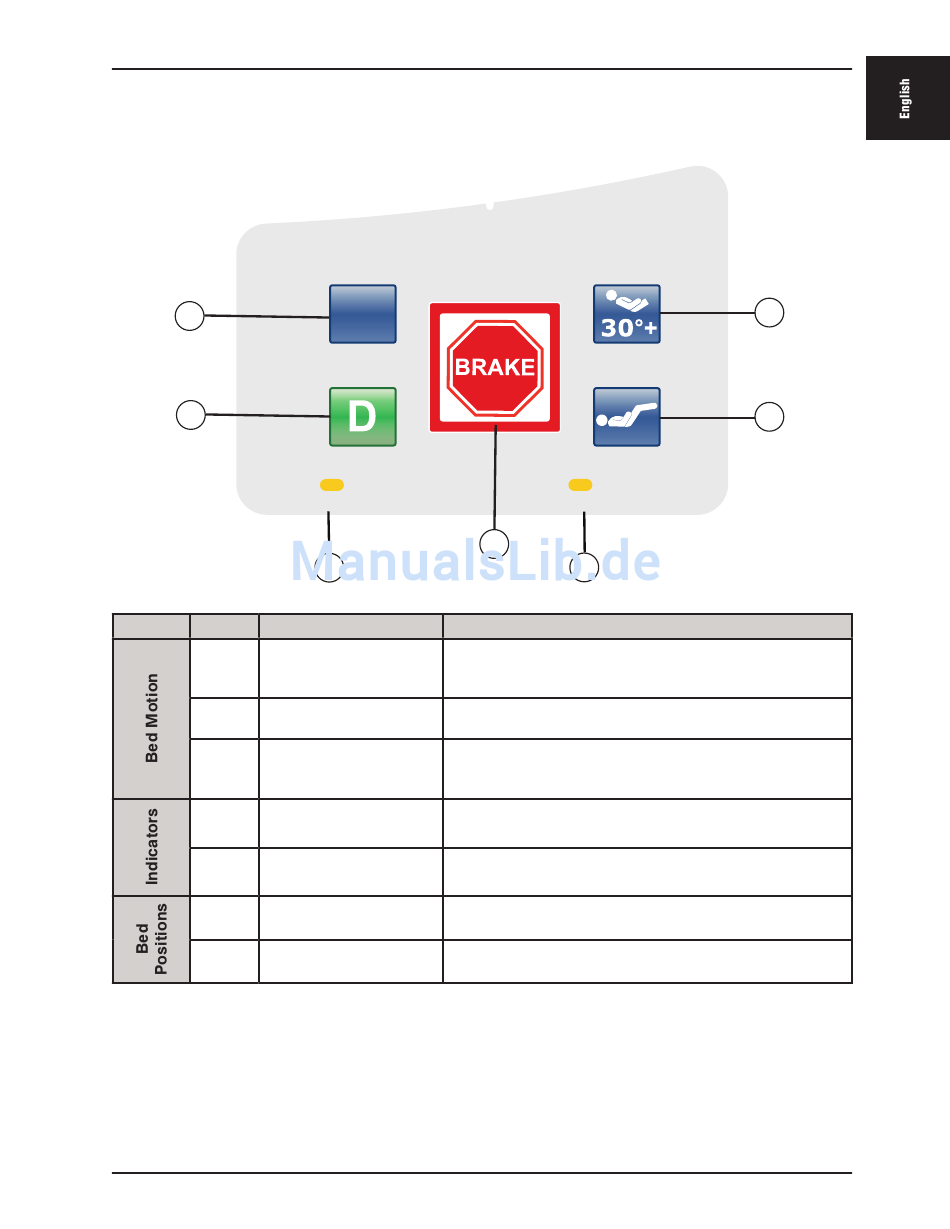

SIDERAIL BRAKE/MOTION CONTROL PANEL, NURSE CONTROL
(Patient's Right Side Shown)
A
B
Button Name
Brake Off Activation/
A
Indicator
B Steer Activation/Indicator
C Brake Activation/Indicator
D Brake Not Set
E Brake Set
F Vascular Position
G HOB 30 Degree Position
Note
The brake can also be set manually . See
www.stryker.com
Siderail Operation Guide
N
Brake Off
Drive
Brake Set
E
Function
Press this button to activate the brake off mode . The button
will be illuminated when this mode is activated making it an
indicator .
Press this button to activate the steer mode . The button will be
illuminated when this mode is activated making it an indicator .
Press this button to activate or deactivate the brake mode . The
button will be illuminated when this mode is activated making it
an indicator .
This LED will be illuminated when the brake system is not
activated .
This LED will be illuminated when the brake system is
activated .
Press this button to start a treatment with the bed in the vascular
position .
Press this button to start a treatment with the bed in the HOB
30 Degree position .
page 15 for more information .
2131-209-005 REV B
Vascular
Position
Brake Not Set
QDF27-2239
C
D
G
F
