Dual Head End Permanent I.V. Pole - FA64202

The Optional Dual Head End I . V . Pole is permanently attached and equipped with a telescopic pole . The telescopic
pole is an extension which provides a second height position . The Permanent I . V . Pole can be folded and stored .
INSTALLATION
Required Tools:
• 3/8" Drive Ratchet
• 1/2" Socket

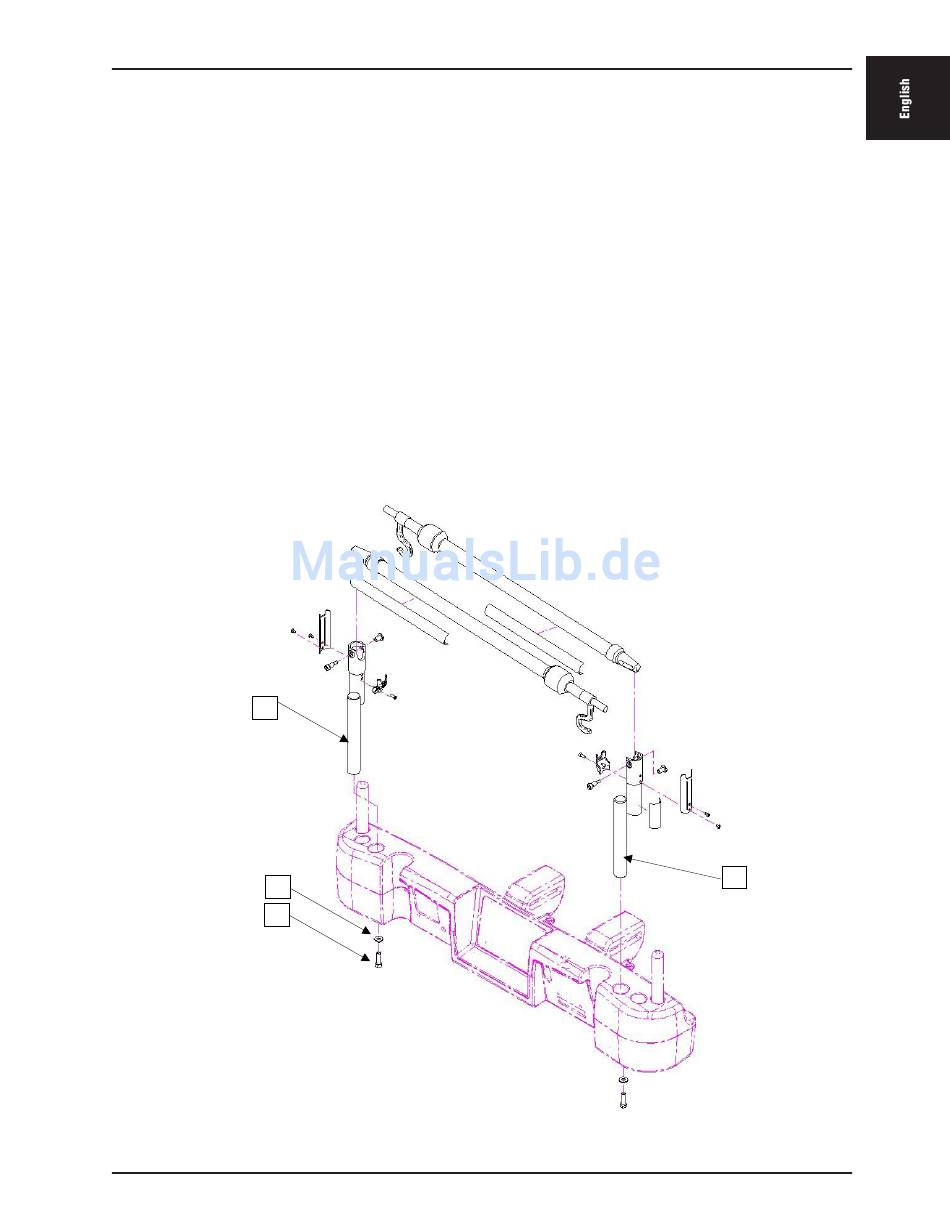

1 . Using bolt (D) and washer (C), secure the I . V . pole (A) into the appropriate opening to the left of the head of the
bed .
2 . Using bolt (D) and washer (C), secure the I . V . pole support (B) in the appropriate opening to the right of the head
of the bed .
Note: The bolt used is coated with "Scotch Grip". This type of bolt must be replaced by a new identical
bolt if it is removed following a first installation.
