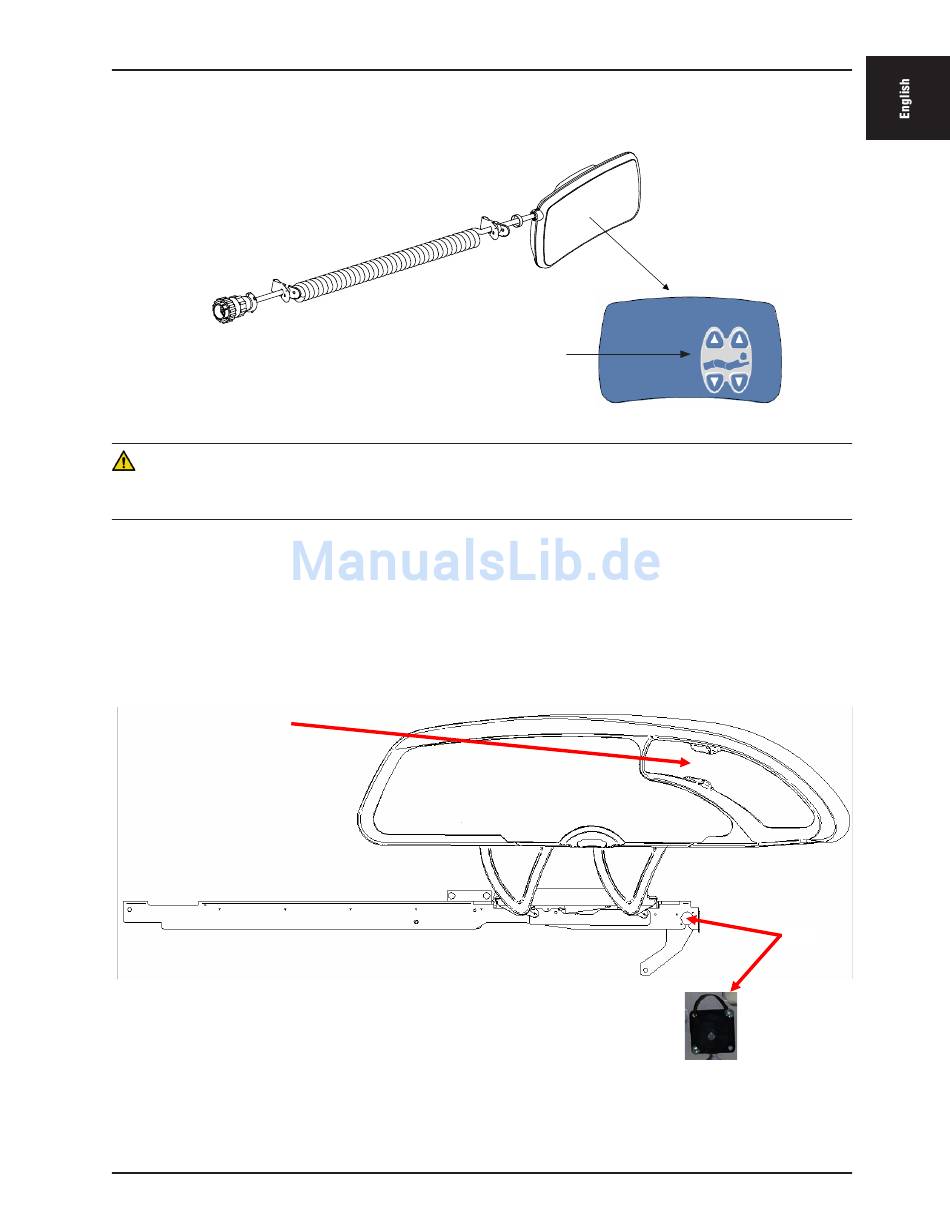

Pendant with Motion Control Only - FA64209

The Optional Pendant with Motion Control was designed to give the patient control over the bed's motion .
WARNING
The Weigh system as well as the Bed Exit system must be adjusted if this accessory is added when either system is in
function . Refer to the "Add/Remove Equipment" from the bed procedure on
INSTALLATION
Required Tools: None
1 . Plug the cable connector into connector (A) located on the right of the upper frame .
2 . Install the removable pendant on the right foot siderail .
Insert the removable pendant
in in this space. Slide it until it
clips.
www.stryker.com
Motion Control
Note: Illustration may differ according to bed model.
2131-209-005 REV B
page 33 .
Return To Table of Contents
A
1-71
