Traction Sleeve - FA64215 through FA64219

The Optional Traction Sleeve enables the installation of traction equipment . There are five different size configurations
available as shown below . The installation procedures below apply to all configurations listed .
NOTE: The foot end section of the mattress is stopped when a traction socket or I . V . pole is inserted .
• Traction Sleeve Set - 4" x 1/2"
• Traction Sleeve 4" x 3/4"
• Traction Sleeve 8" x 1/2"
• Traction Sleeve 8" x 3/4"
• Traction Sleeve 6-1/2" x 3/4"
INSTALLATION
Required Tool:
• 7/16" Combination Wrench
Procedure

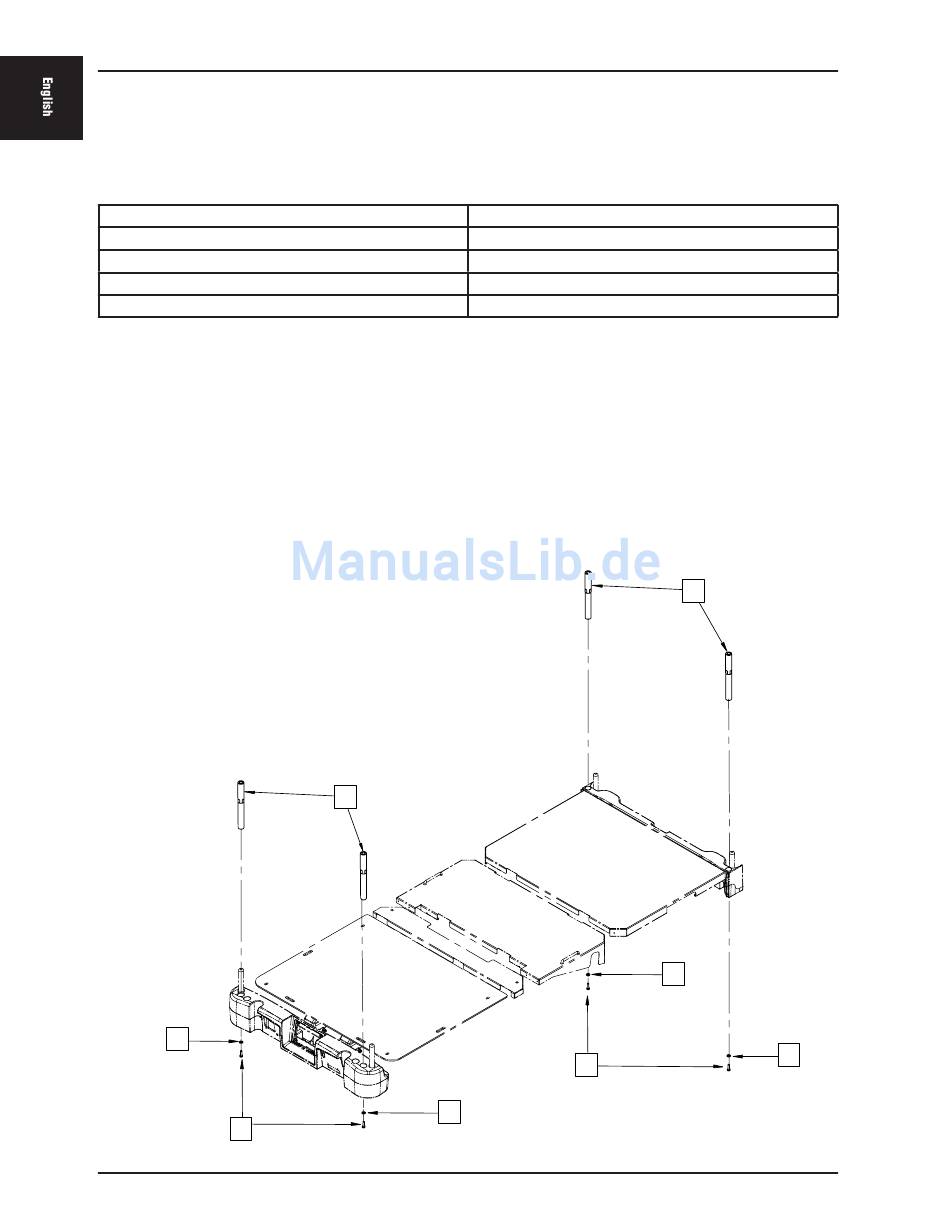

1 . Install the four traction sleeves (A) in the corresponding holes located at the four corners of the bed .
2 . Secure them using the washers (B) and bolts (C) provided .
Note: The bolt used at step 2 is coated with "Scotch Grip". This type of bolt must be replaced by a new
identical bolt if it is removed following a first installation.
