Pendant with Motion Control/Smart TV - FA64195

The Optional Pendant with Motion Control and Smart TV was designed to give the patient control over the bed's
motions, TV, radio, channels, volume and lights from the bed when needed .
The bed must be configured and synchronized with the hospital system in order for some functions to operate properly
such as TV control, radio, channels, volume and lights .
WARNING
The Weigh system as well as the Bed Exit system must be adjusted if this accessory is added when either system is in
function . Refer to the "Add/Remove Equipment" from the bed procedure on
INSTALLATION
Required Tools: None

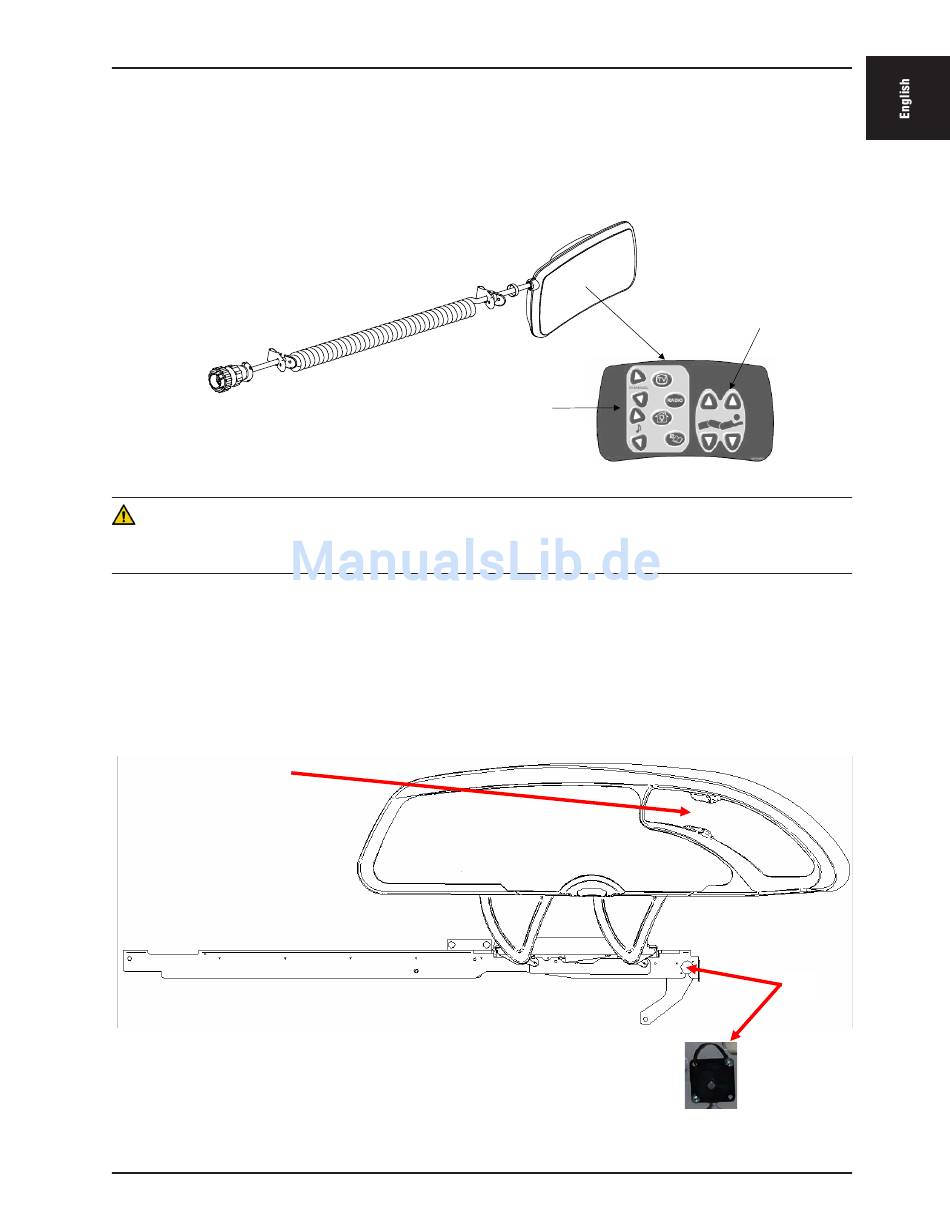

1 . Plug the cable connector into connector (A) located on the right of the upper frame .
2 . Install the removable pendant on the right foot siderail .
Insert the removable pendant
in in this space. Slide it until it
clips.
www.stryker.com
Note: Illustration may differ according to bed model.
2131-209-005 REV B
Smart TV
page 33 .
Motion Control
A
Return To Table of Contents
1-73
