Bed Extender - Fa64234 - Stryker InTouch Bedienungsanleitung

The Optional Bed Extender was designed to lengthen the bed by six inches .
This accessory is designed for the following product(s):
InTouch 1 .0 (FL27)-2130
InTouch 1 .0 (FL27)-2140
InTouch 2 .0 (FL27)-2131
InTouch 2 .0 (FL27)-2141
INSTALLATION
Required Tools: None

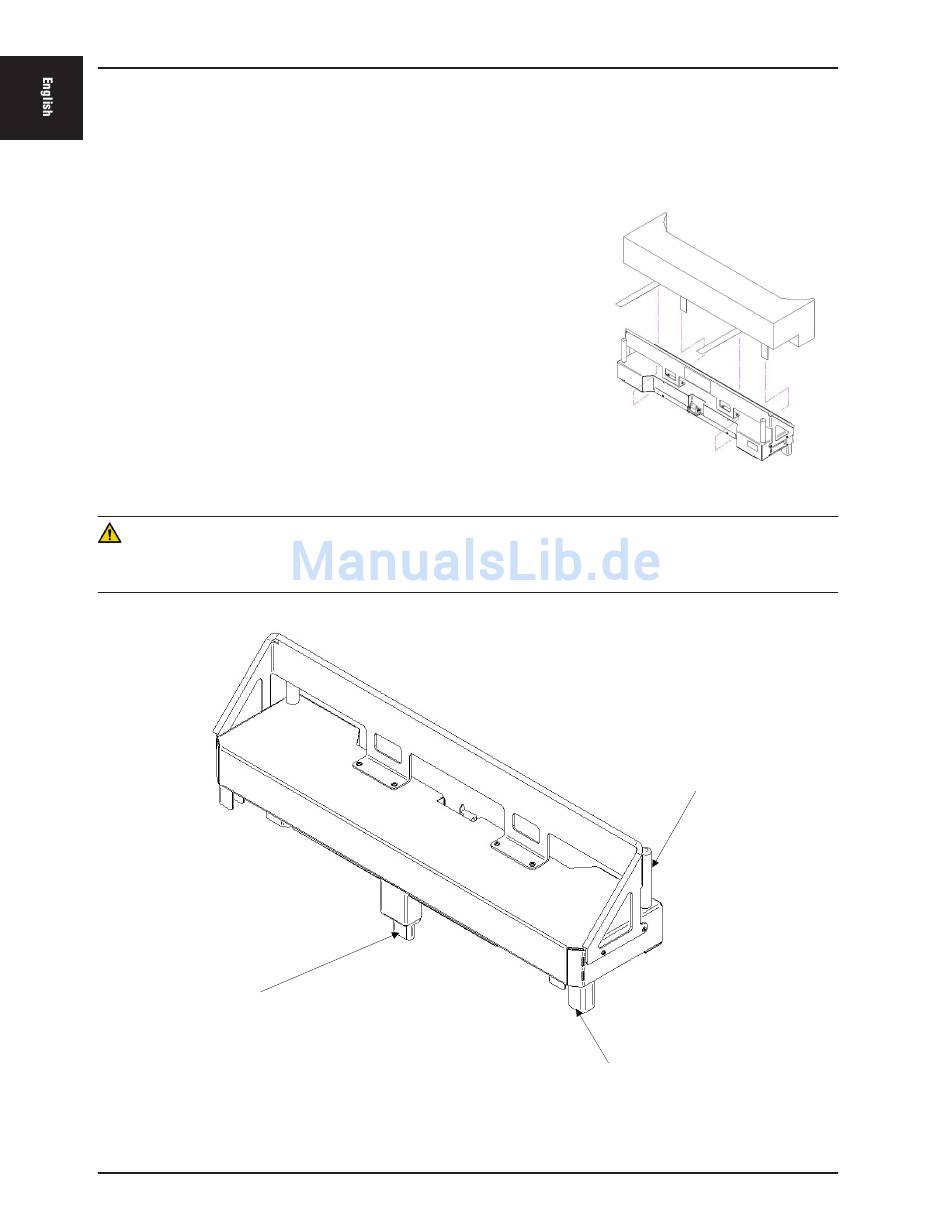

Refer to the figures following the Installation section for visual help .
1 . Install the appropriate mattress cushion over
the bed extender (see Figure A) .
2 . Remove the footboard .
3 . Insert bed extender legs on the bed end rods (see Figure B) .
4 . Replace the footboard over the bed extender rods (see Figure
B, section 2) .
WARNING
• Ensure connector 'A' is securely fixed (see Figure B) .
• Do not sit on the bed extender . This may cause the bed to flip .
Connector A
Return To Table of Contents
1-60

Bed Extender - FA64234

Figure B
2131-209-005 REV B
Figure A
Section 2
Section 1
