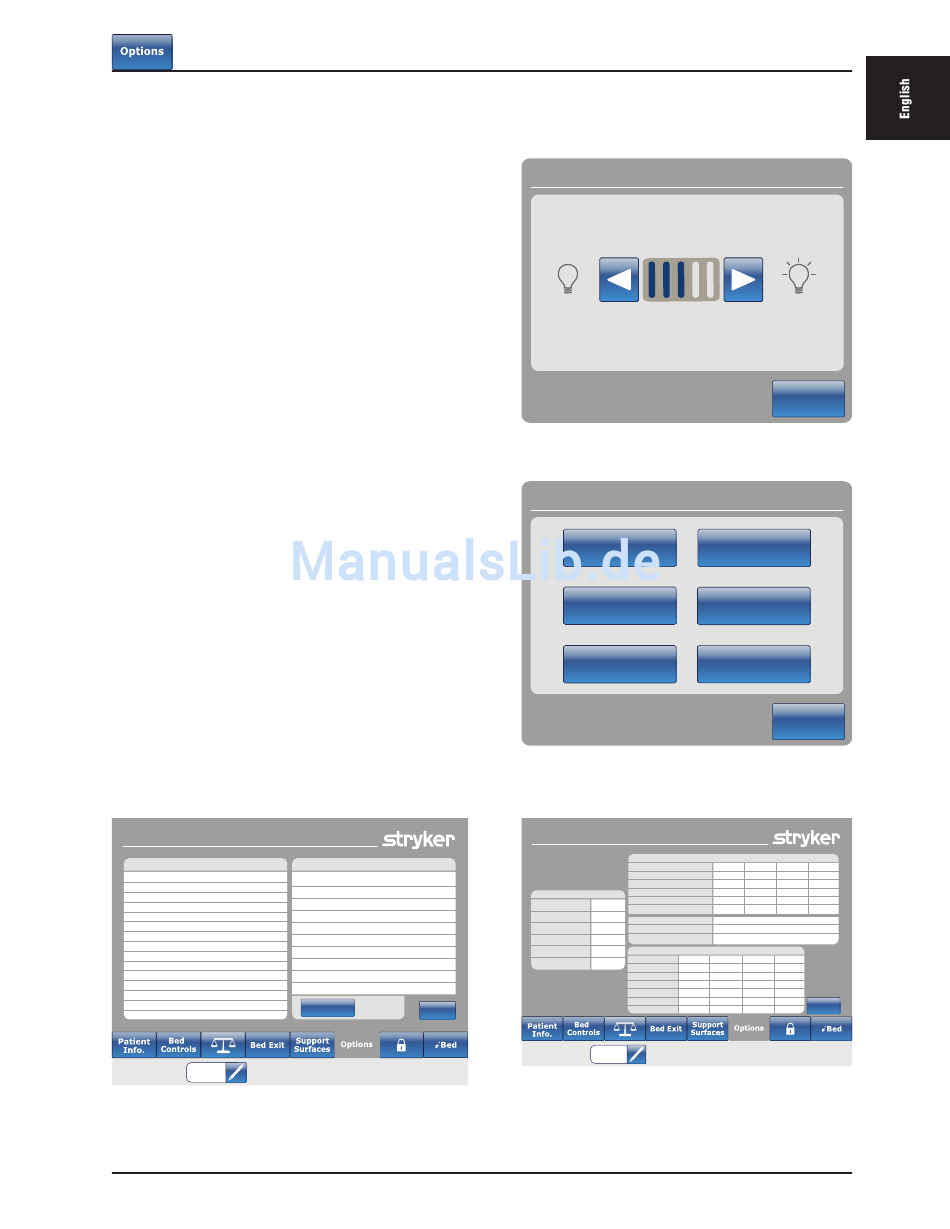

MAIN MENU: OPTIONS (CONTINUED)

Nurse Control Backlight Button

When the "Nurse Control Backlight" button is
pressed on the Options screen, Figure 8 . 1 0 will be
displayed . The backlighting interface allows the
user to set the intensity of the indicators (LED) and
of the touch screen .
Press the arrows to increase or decrease the
intensity . When completed, press the "Close"
button .

Maintenance Button

When the "Maintenance" button is pressed on the
Options screen, Figure 8 . 1 1 will be displayed .
When the "Error Codes" button is pressed, Figure
8 . 1 2 will be displayed . The Error codes display
provides information on component status .
When the "Signal Values" button is pressed, Figure
8 . 1 3 will be displayed . The Signal Values display
provides information on sensor status .
Note
Refer to the Maintenance Manual for further details
on Buttons Pressed, Boards and Bed Information .
Error Codes
Current error
ADC invalid values
Battery absent
Battery bad capacity
Cmd without safe from nurse (SRR)
GPIO failure init
Load cell 1 overrange
Motor gatch overheat
Motor brake overload
Motor HL foot overheat
Motor zoom overheat
Safe without cmd from B1
Tilt hilo foot over range
Tilt gatch over range
Brake bad calib.
Brake unable to elec.
Unit/Rm :
Figure 8.12
www.stryker.com
Footboard Operation Guide
Error log
ADC invalid values
Battery absent
Battery bad capacity
Cmd without safe from nurse (SRR)
GPIO failure init
Load cell 1 overrange
Motor gatch overheat
Motor zoom overheat
Safe without cmd from B1
Tilt hilo foot over range
Clear log
Back
Oct. 25,2007 12:00 AM
2131-209-005 REV B
Nurse Control
Figure 8.10
Maintenance
Error Codes
Buttons Pressed
Signal Values
Boards
Figure 8.11
Signal Values (All)
Load cells values
Load cells
Angle dep. trend
Angle indep. trend
Sensor Values
Angle dep. rev. trend
Temp 31.2 C
Angle indep. rev. trend
24 Vdc 26.2 V
Bed exit
Battery Voltage 25.1 V
Bed height
Foot end Height
VBus 24.7 V
Brake Pot 70 Tilt Values
Angle
Charger Amp 0.00 A
Head -13.6
Gatch 11.6
Foot -10.9
Base 0.0
Hilo foot 76.0
Trend 11.6
Unit/Rm :
Figure 8.13
Return To Table of Contents
Close
Bed
Informations
Input
States
Close
1 2 3 4
45.9 lb 57.5 lb 76.3 lb 100.0lb
34062 -27139 -18274 24793
-27540
28195 24436 -24573
32095 -25262 -22896 29827
-25573 26318 29058 -29607
x = 54, y = 22
711
869
Raw Zero Gain
3980 5029 813962
5211 5439 -880336
4334 5071 796641
5246 5247 800000
5200 4627 791613
Close
5411 5172 838363
Oct. 25,2007 12:00 AM 12:00 AM
1-47
