Monitor Tray - Fa64214 - Stryker InTouch Bedienungsanleitung

The Optional Monitor Tray is designed to hold a monitor at the foot end of the bed .
WARNING
The Weigh system as well as the Bed Exit system must be adjusted if this accessory is added when either system is in
function . Refer to the "Add/Remove Equipment" from the bed procedure on
INSTALLATION
Required Tools: None
Procedure

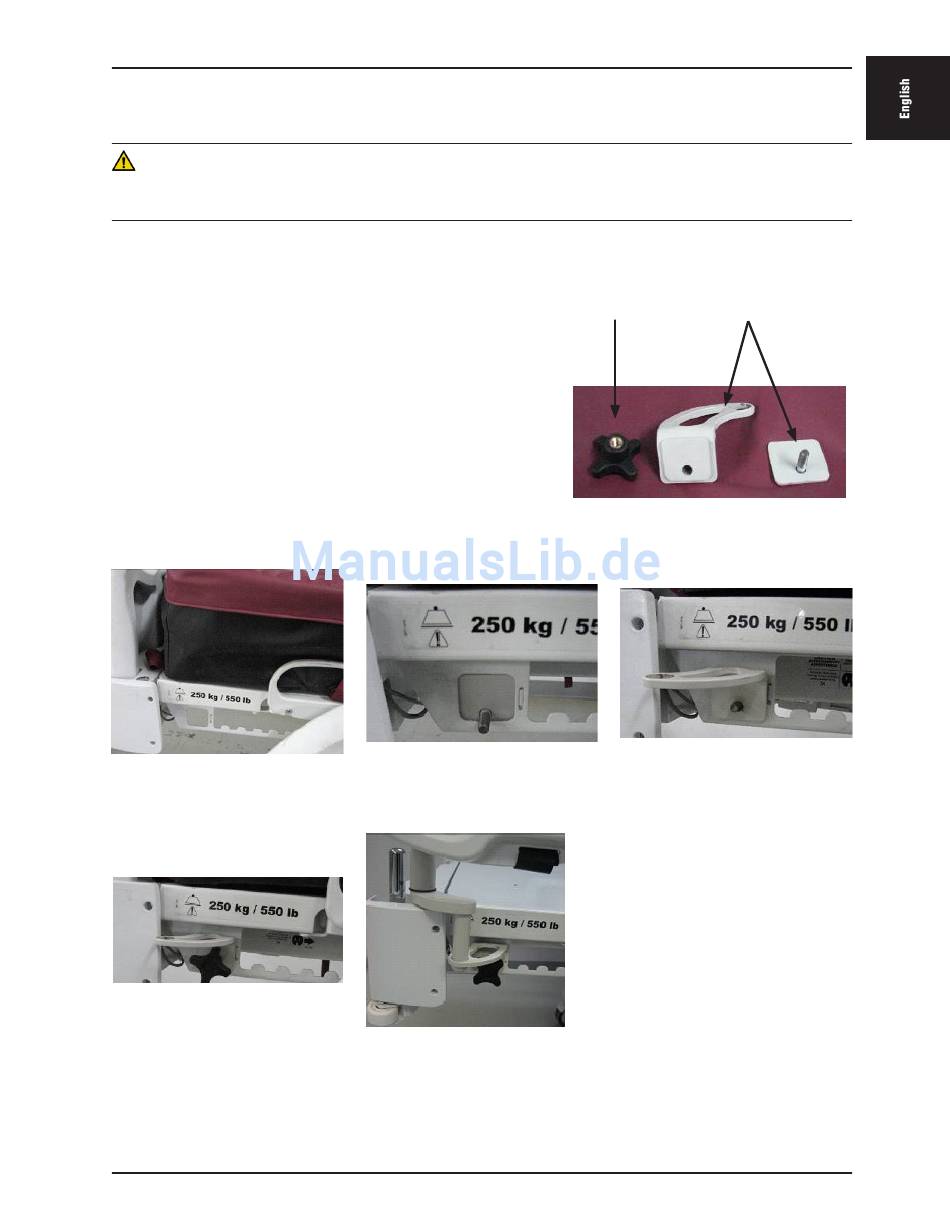

1 . Install the bracket (A) at the left side of the foot end . (see
Figures B, C, D, and E) .
2 . Install the transport tray (see Figure F) into the bracket just
secured in step 1 and into the the IV socket (not shown) .
Note: Ensure that the tray support is correctly anchored
in the hole of the bracket installed in step 1 (see Figure F).
Figure B - foot end
Figure E - secure bracket
with screw knob
www.stryker.com

Monitor Tray - FA64214

Figure C - bracket mounted (back)
Figure F - install tray
2131-209-005 REV B
page 33 .
Screw Knob Bracket
Figure A
Figure D - bracket mounted (front)
Return To Table of Contents
1-67
