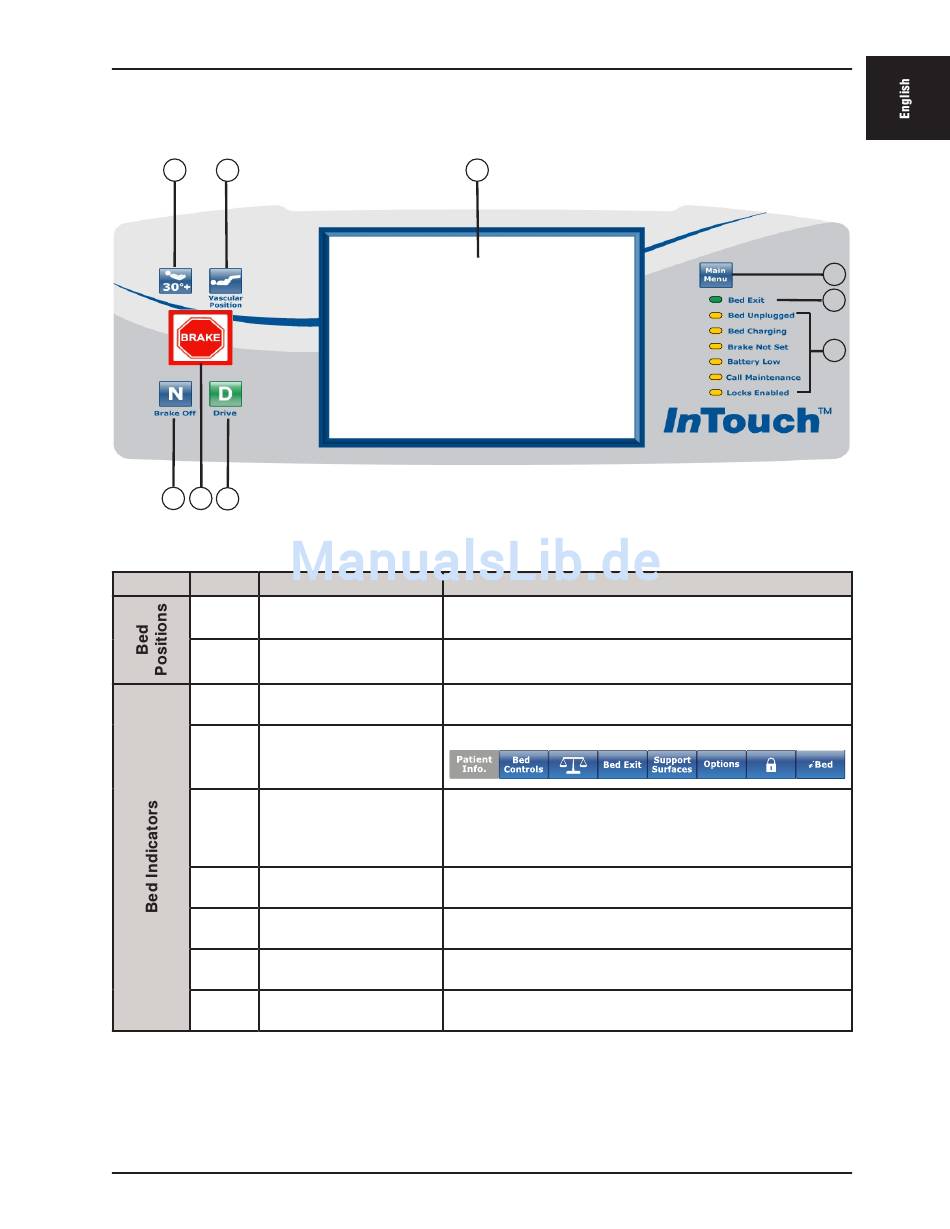

CONTROL PANEL
A
B
I
H
G
Button Name
A
HOB 30 Degree Activation
B
Vascular Activation
Display Touch Screen
C
D
Main Menu
Bed Exit On(Armed)/
E
Off(Disarmed) Indicator
F
System Message Indicator
G
Steer Activation/Indicator
H
Brake Activation/Indicator
Brake Off
I
Activation/Indicator
www.stryker.com
Footboard Operation Guide
C
Function
Press this button to start a treatment with the bed in the HOB
30 Degree position .
Press this button to start a treatment with the bed in the vascular
position .
This displays all the functions selected using the buttons . It also
shows error codes, alarms and other necessary information .
Quick return to the Main Menu; see below .
When this LED is illuminated, it means the Bed Exit is Armed
(On) . When it is not illuminated, it means the Bed Exit is
Disarmed (Off) . When the LED is flashing, an alarm condition
exists .
These LEDs indicate any state the bed might be in or if there is
a need to call maintenance . (See descriptions on
Press this button to activate the Steer system . This button is
illuminated when the system is activated .
Pres this button to activate or deactivate the Brake system . This
button is illuminated when the system is activated .
Press this button to activate the Brake Off system . This button
is illuminated when the system is activated .
2131-209-005 REV B
