ROTOCLEAR S3
Connect the protective hose of the third-
party device by fitting it on the previously
screwed-in adapter. Then, tighten the nut while
holding the screwed-in part in position with a
spanner.
Installation with rigid tube
 Screw the pipe fitting into the connection
box (Fig. 7-F) of the Rotoclear S3 until hand tight
and then tighten it by no more than a quarter turn.
The adapter is sealed by an integrated sealing ring.
To connect the installed rigid tube, insert
it into the previously screwed-in adapter and
tighten the nut while holding the screwed-in part
in position with a spanner. Cut the tube to length
if necessary.
Theadaptercanbeusedwithtubesthatare9–13
mm in diameter.
Connect the power supply line with the con-
nectionsintheconnectionboxoftheRotoclear S3
as described in this chapter.
Mounting the rotor
There is a magnet in the rotor. Beware of the
(( ))
magnetic forces if you have an active medical
implant. Keep a minimum distance of 20 mm
between the implant and the rotor.

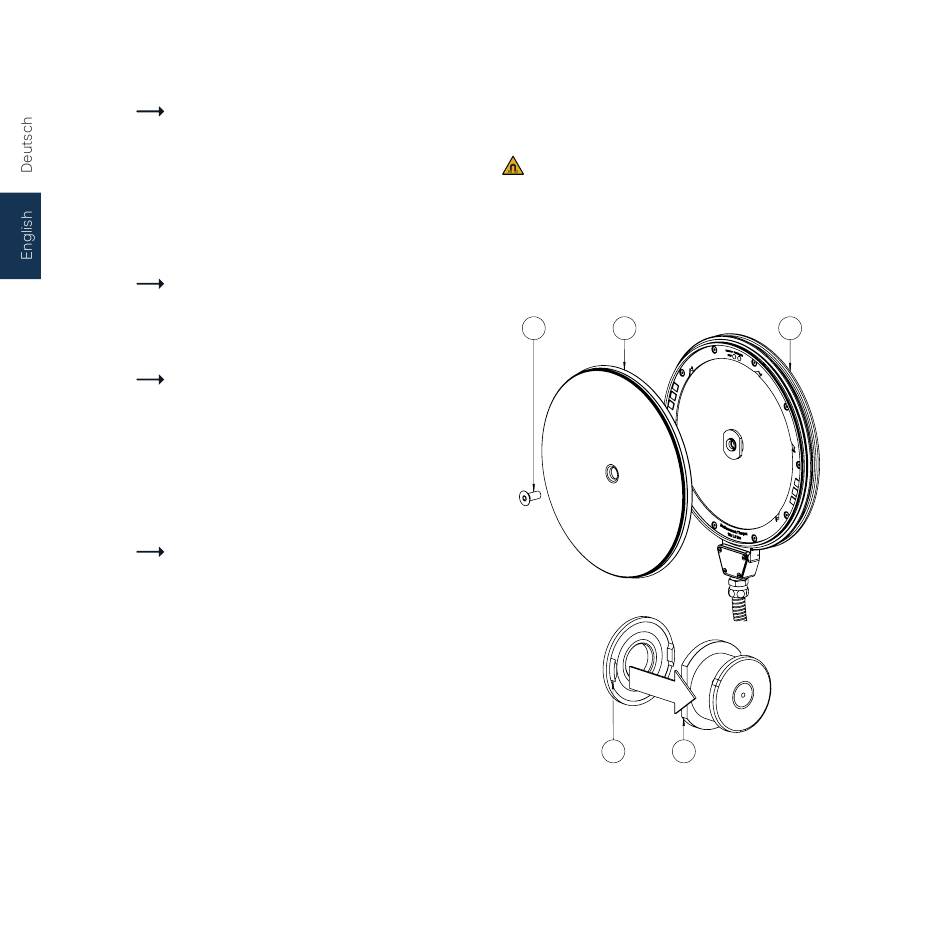

Fit the rotor (Fig. 10-A) on the shaft of the stator
(Fig. 10-B).
E A
C D
Figure 12
Ensure that the rotor is seated correctly. The
flanks of the flange (Fig. 10-C) must enclose the
flatsegmentsoftheshaft(Fig.10-D)andmustnot
restontheflatsurfaceoftheflange.
75
B
