ROTOCLEAR S3
To connect the protective hose to the connection
box,fititonthepartthatisalreadyscrewedinand
tighten the nut while holding the screwed-in part
(Fig. 6-E) in position with a spanner.
Installation with rigid tube
Depending on the installation situation, it may
make sense to substitute the protective hose
(Fig. 7-A) with a straight or pre-bent metallic tube
(Fig. 9-A). The tube needs to be 12 mm in diameter
andhavewalls1mm(Ø12×1)thick.Inadditionto
replacing the protective hose, replace the hose
fittings (Fig. 6-B, C, D, E and Fig. 8-F) with sepa-
ratelyavailablepipefittings(Fig.9-B).
D

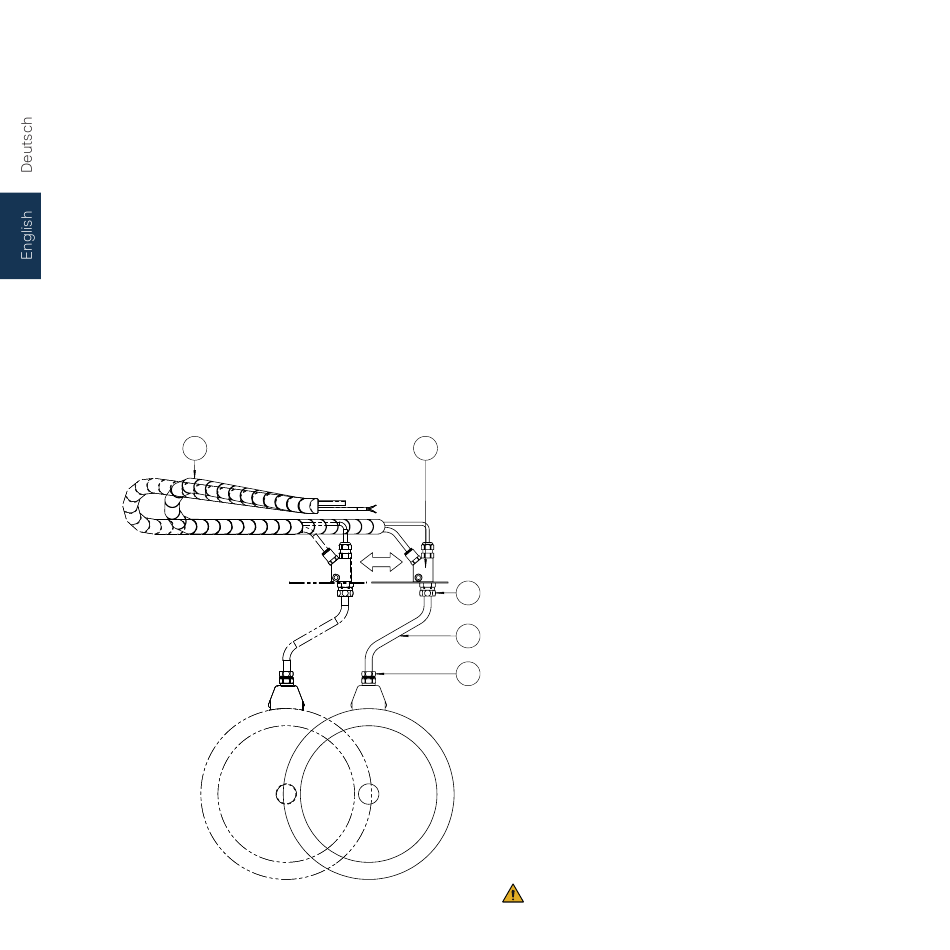

Figure 9
Fit the screw connections and route the connec-
tion lines as described in the previous paragraph.
If installing in a sliding door, the electric-pneu-
matic adapter (Fig. 9-C) is also positioned in the
door. It can be used to feed through the supply
lines in the same way as when installing the unit
with a protective hose.
Dimension the power and sealing air supply lines
such that they can accommodate the movement.
Use a trailing cable (Fig. 9-D) to route the lines
safely.
Using your own screw elements or protective
hoses with firmly attached screw elements can
damagetheRotoclearS3housing.
C
Close the connection box with the cover (Fig.
6-J) and the four screws provided for this pur-
pose (torque 1.1 Nm) (Fig. 6-K) making sure that no
cables are pinched or crushed.
Close the cable gland (Fig. 8-B) of the elec-
tric-pneumatic adapter to fix the power cable in
place.
B
Lay the power cable (e.g. via a trailing cable or
A
fixed routing) to the control cabinet and connect
the unit into the machine control system.
B
The Rotoclear S3 should be coupled to the
machine's main switch and must operate con-
tinuously to seal the machinery glass (see chap-
ter Sealing air supply) and to provide a view of
the machine interior. The constant centrifugal
force can only enable a permanently clean pane
if vapors and cooling lubricant particles that are
still in the atmosphere after machining are also
repelled by the centrifugal action of the rotor.
Forexample,forreasonsoffireprotectionor
