5.2
Material code
Versatronic

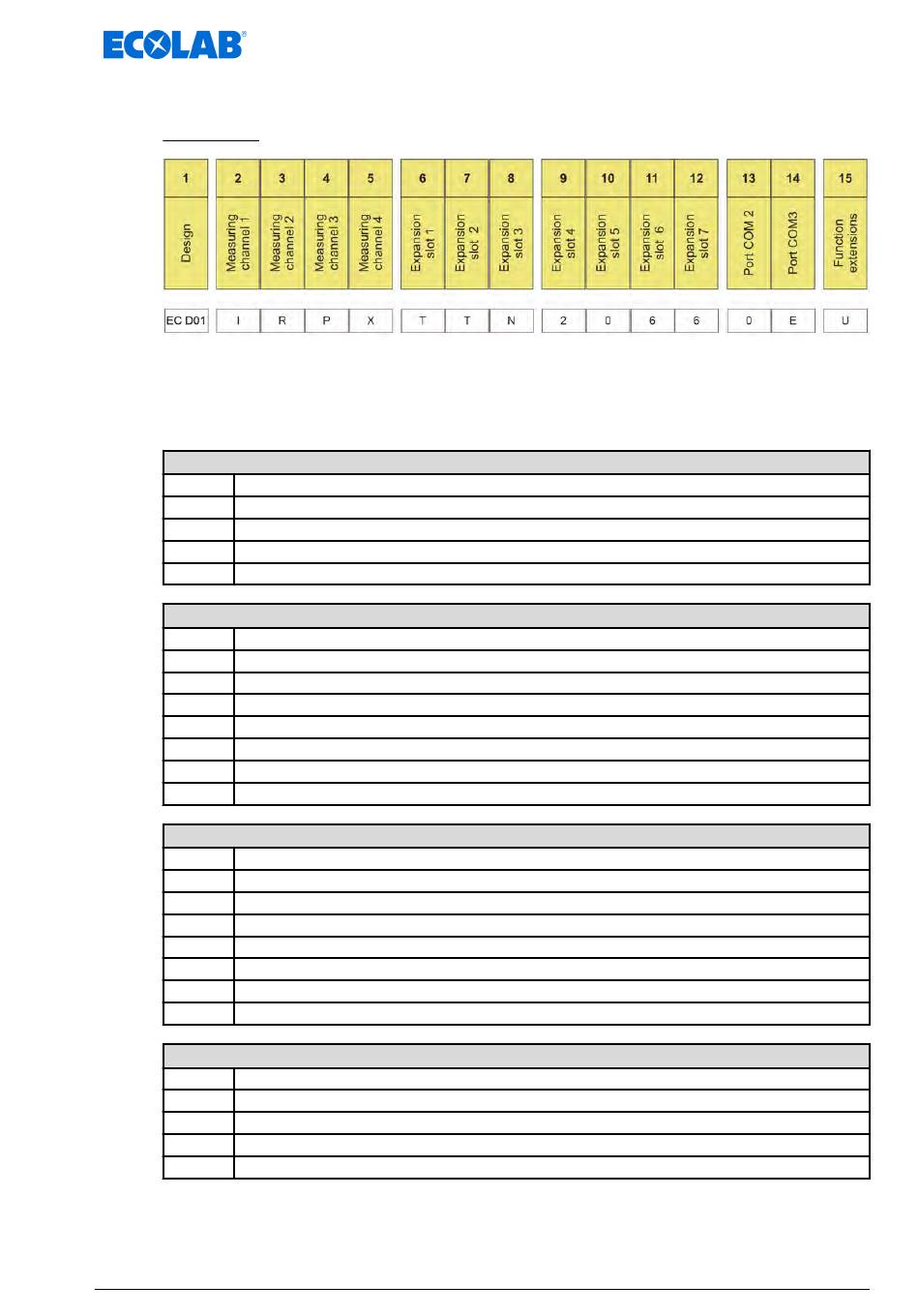

Fig. 2: Material code Versatronic Standard
Example designation (4-channel unit): 'Versatronic' EC D01-IRPX-TTN-2066-0E-U
Legend
1 Version
EC D01 Ecolab, Ci measurement with module 10240817 for probe 1024xxxx (blue)
ES D01 Ecolab, Ci measurement with module 255250 for probe 2552xx (white)
C1 D01 Ecolab Cooling Water, 1 cooling tower
C2 D01 Ecolab Cooling Water, 2 cooling towers
C3 D01 Ecolab Cooling Water, 3 cooling towers
2 Measuring channel 1 (IN 7, IN 6)
0
Not assigned
I
IN 7 Measuring module Ci (inductive conductivity)
R
IN 7 Measuring module Cr (conductive conductivity)
P
IN 7 Measuring module pH/ORP (redox), configured to pH
X
IN 7 Measuring module pH/ORP (redox), configured for ORP
C
IN 7 not assigned, IN 6 measurement Cl (chlorine)
D
IN 7 not assigned, IN 6 measurement Cd (chlorine dioxide)
A
IN 7 not assigned, IN 6 measurement Pa (peracetic acid)
3 Measuring channel 2 (IN 8, IN 11)
0
Not assigned
I
IN 8 Measuring module Ci (inductive conductivity)
R
IN 8 Measuring module Cr (conductive conductivity)
P
IN 8 Measuring module pH/ORP (redox), configured to pH
X
IN 8 Measuring module pH/ORP (redox), configured for ORP
C
IN 8 not assigned, IN 11 measurement Cl (chlorine)
D
IN 8 not assigned, IN 11 measurement Cd (chlorine dioxide)
A
IN 8 not assigned, IN 11 measurement Pa (peracetic acid)
4 Measuring channel 3 (IN 9)
0
Not assigned
I
IN 9 Measuring module Ci (inductive conductivity)
R
IN 9 Measuring module Cr (conductive conductivity)
P
IN 9 Measuring module pH/ORP (redox), configured to pH
X
IN 9 Measuring module pH/ORP (redox), configured for ORP
Identifying the unit version
17
