6.2.1 Drilling plan

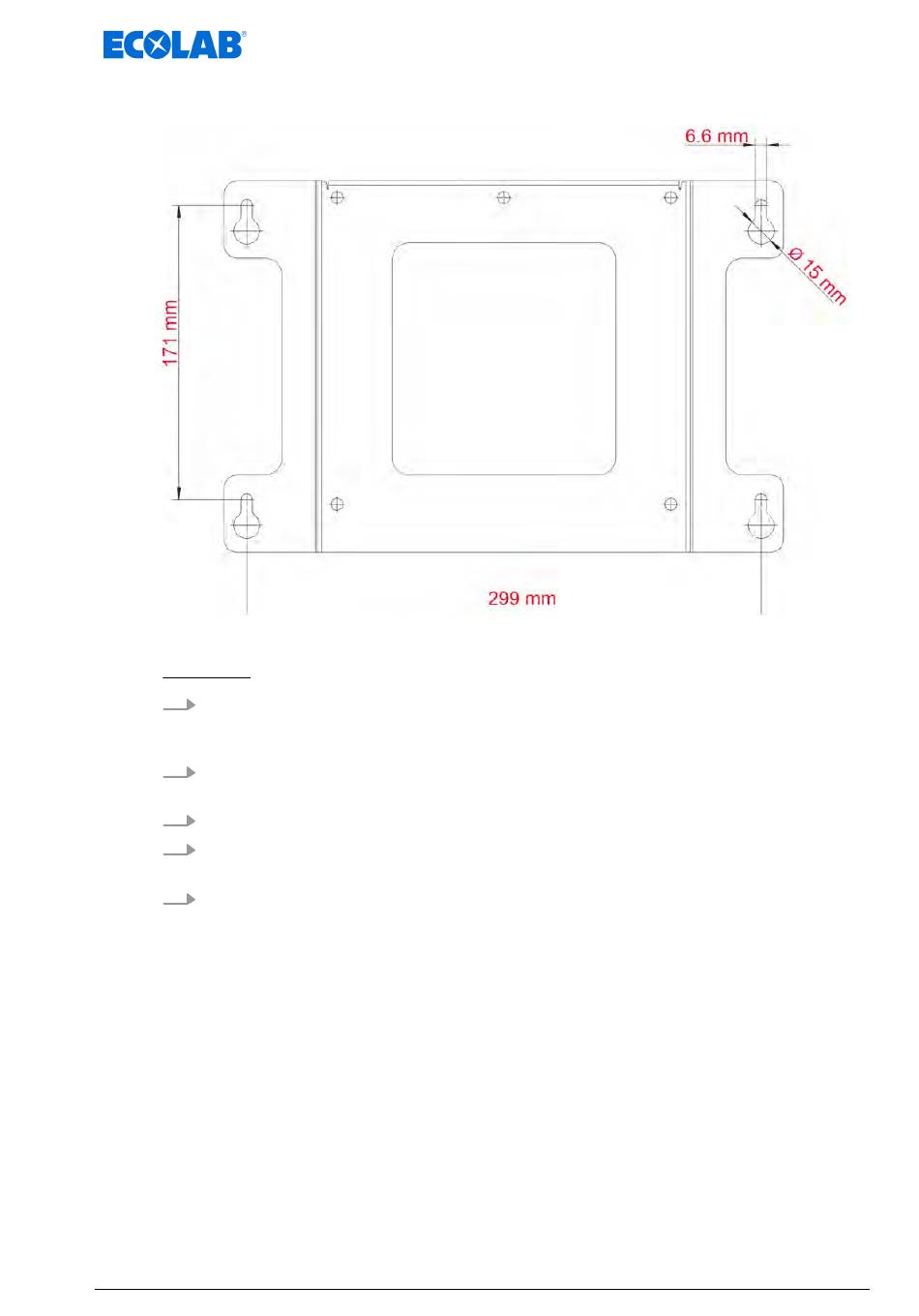

Fig. 3: Drilling plan
Procedure
1.
Draw the mounting holes on the mounting surface according to the drilling plan.
You can also use the mounting plate as a template.
Leave enough space in the area of the cable entries to manoeuvre the cables.
2.
Mount suitable fastening screws (4) so that the screw heads are about 1 cm from the
mounting surface.
3.
Fasten the mounting plate (2) with the screws (3) on the back of the device (1).
4.
Hang the device (1) and, if necessary, the weather protection roof ( 5) into the
screws with the mounting plate.
5.
Tighten the fastening screws.
6.3 Pipe fitting
See operating instructions 417102269, chapter 'Pipe mounting' .
6.4 Panel installation
See operating instructions 417102269, chapter 'Panel installation' .
