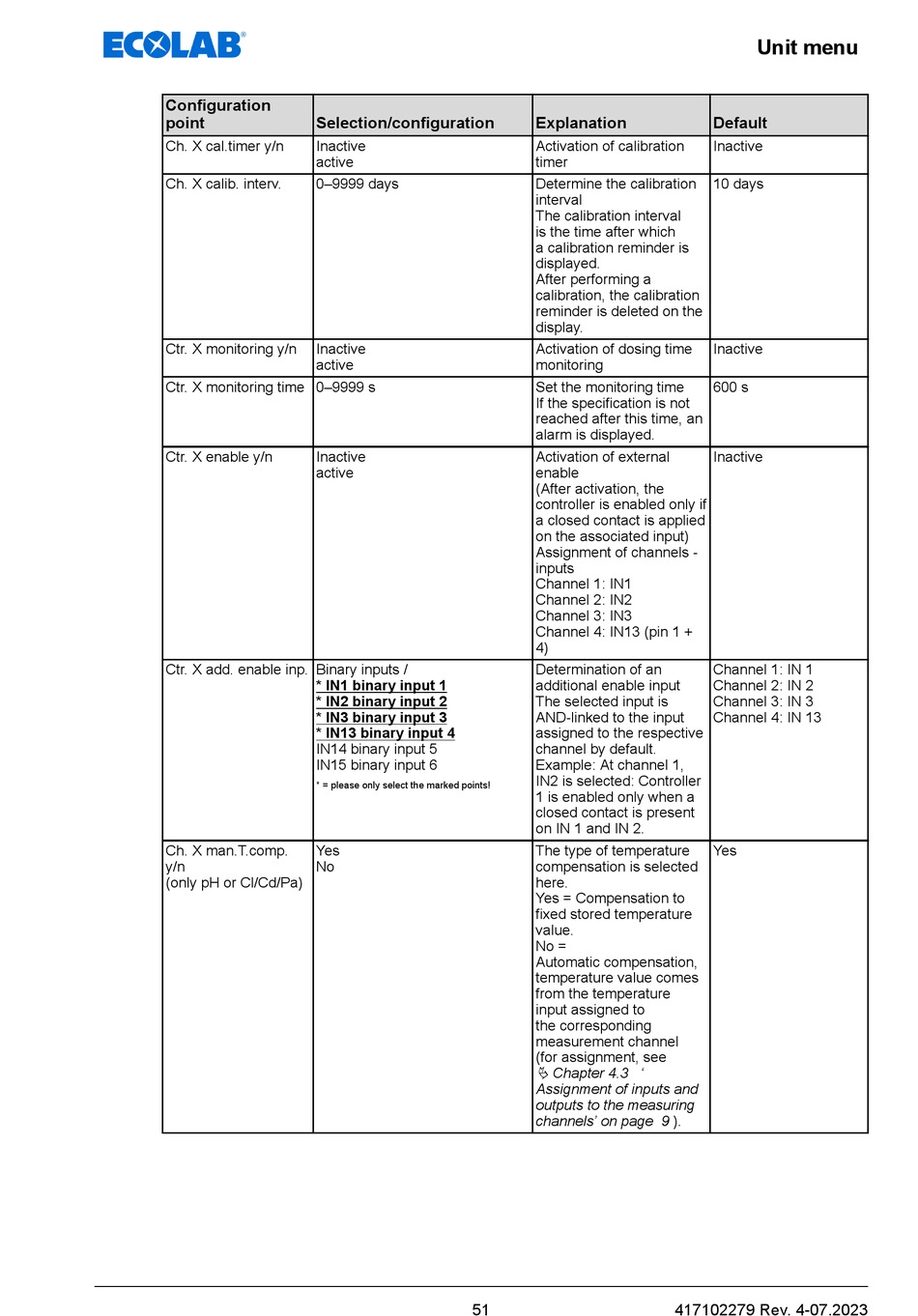

Configuration
point Selection/configuration
Ch. X cal.timer y/n Inactive
active
Ch. X calib. interv. 0–9999 days
Ctr. X monitoring y/n Inactive
active
Ctr. X monitoring time 0–9999 s
Ctr. X enable y/n Inactive
active
Ctr. X add. enable inp. Binary inputs /
* IN1 binary input 1
* IN2 binary input 2
* IN3 binary input 3
* IN13 binary input 4
IN14 binary input 5
IN15 binary input 6
* = please only select the marked points!
Ch. X man.T.comp. Yes
y/n No
(only pH or Cl/Cd/Pa)
Explanation
Activation of calibration
timer
Determine the calibration
interval
The calibration interval
is the time after which
a calibration reminder is
displayed.
After performing a
calibration, the calibration
reminder is deleted on the
display.
Activation of dosing time
monitoring
Set the monitoring time
If the specification is not
reached after this time, an
alarm is displayed.
Activation of external
enable
(After activation, the
controller is enabled only if
a closed contact is applied
on the associated input)
Assignment of channels -
inputs
Channel 1: IN1
Channel 2: IN2
Channel 3: IN3
Channel 4: IN13 (pin 1 +
4)
Determination of an
additional enable input
The selected input is
AND-linked to the input
assigned to the respective
channel by default.
Example: At channel 1,
IN2 is selected: Controller
1 is enabled only when a
closed contact is present
on IN 1 and IN 2.
The type of temperature
compensation is selected
here.
Yes = Compensation to
fixed stored temperature
value.
No =
Automatic compensation,
temperature value comes
from the temperature
input assigned to
the corresponding
measurement channel
(for assignment, see
Ä Chapter 4.3 '
Assignment of inputs and
outputs to the measuring
channels' on page 9 ).
