Operating
9.1.3.2 Display elements for Versatronic Cooling Water

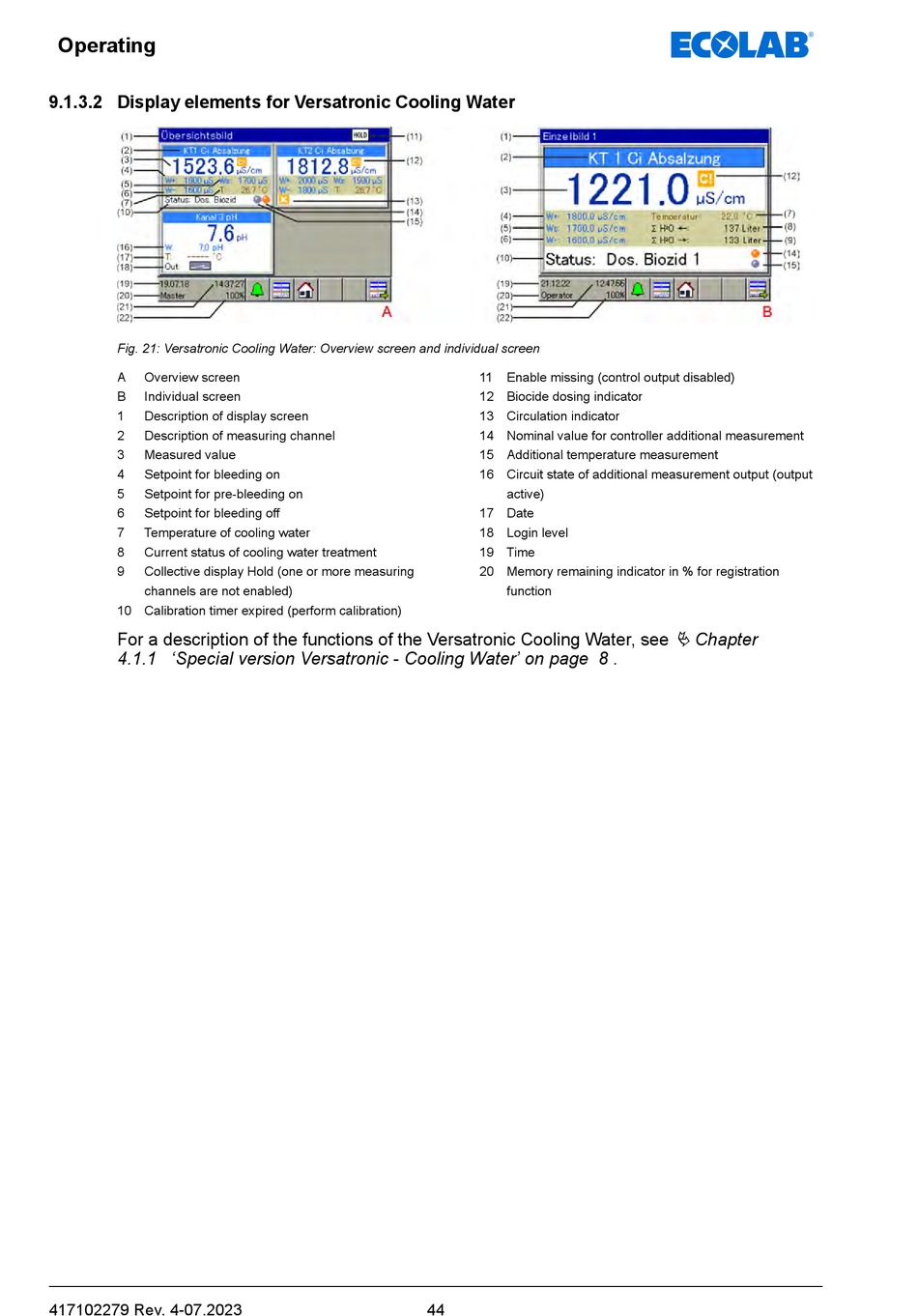

Fig. 21: Versatronic Cooling Water: Overview screen and individual screen
A Overview screen
B Individual screen
1 Description of display screen
2 Description of measuring channel
3 Measured value
4 Setpoint for bleeding on
5 Setpoint for pre-bleeding on
6 Setpoint for bleeding off
7 Temperature of cooling water
8 Current status of cooling water treatment
9 Collective display Hold (one or more measuring
channels are not enabled)
10 Calibration timer expired (perform calibration)
For a description of the functions of the Versatronic Cooling Water, see
4.1.1 'Special version Versatronic - Cooling Water' on page 8 .
417102279 Rev. 4-07.2023
11 Enable missing (control output disabled)
12 Biocide dosing indicator
13 Circulation indicator
14 Nominal value for controller additional measurement
15 Additional temperature measurement
16 Circuit state of additional measurement output (output
active)
17 Date
18 Login level
19 Time
20 Memory remaining indicator in % for registration
function
