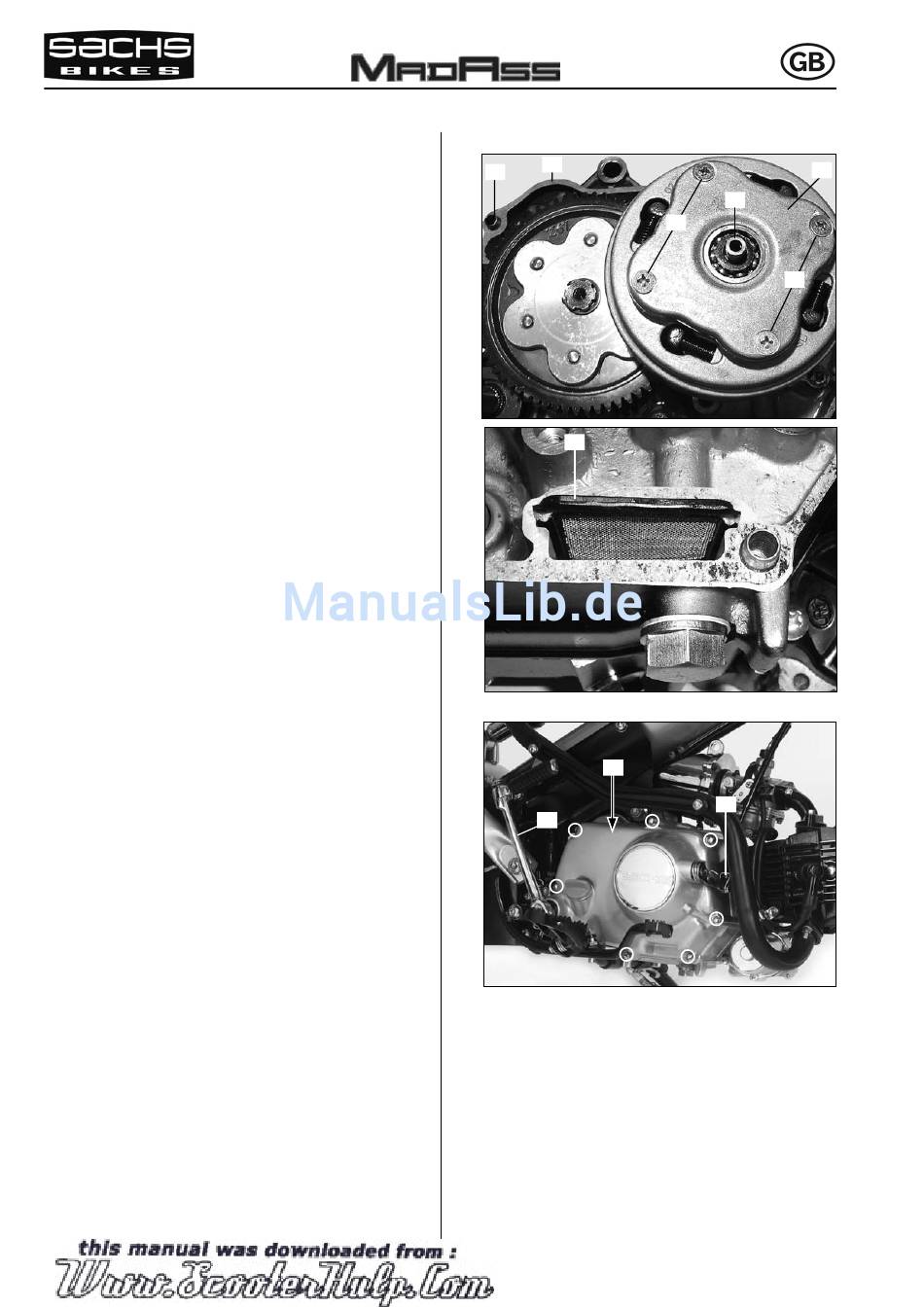

CLUTCH/GEARSHIFT LINKAGE
Install a new gasket for the clutch outer cover (1) and tighten
5
1
4
them with four screws (2).
3
Install the bushing (3) with the spring.
2
Set in the two dowel pins (4) into the crankcase and use a new
gasket (5).
2
6
Clean the oil fi lter screen (6) and install into the crankcase.
RIGHT CRANKCASE COVER INSTALLATION
Install the crankcase cover (7) using eight bolts.
7
Install the kick starter pedal (8) and connect the clutch pull
9
cable (9).
8
Adjust the clutch.
Fill up crankcase with engine oil.
SAE 15 W 40 mineral oil API (SG or higher)
0,8 lit.
