LA 1118CP
17 Integration Diagram

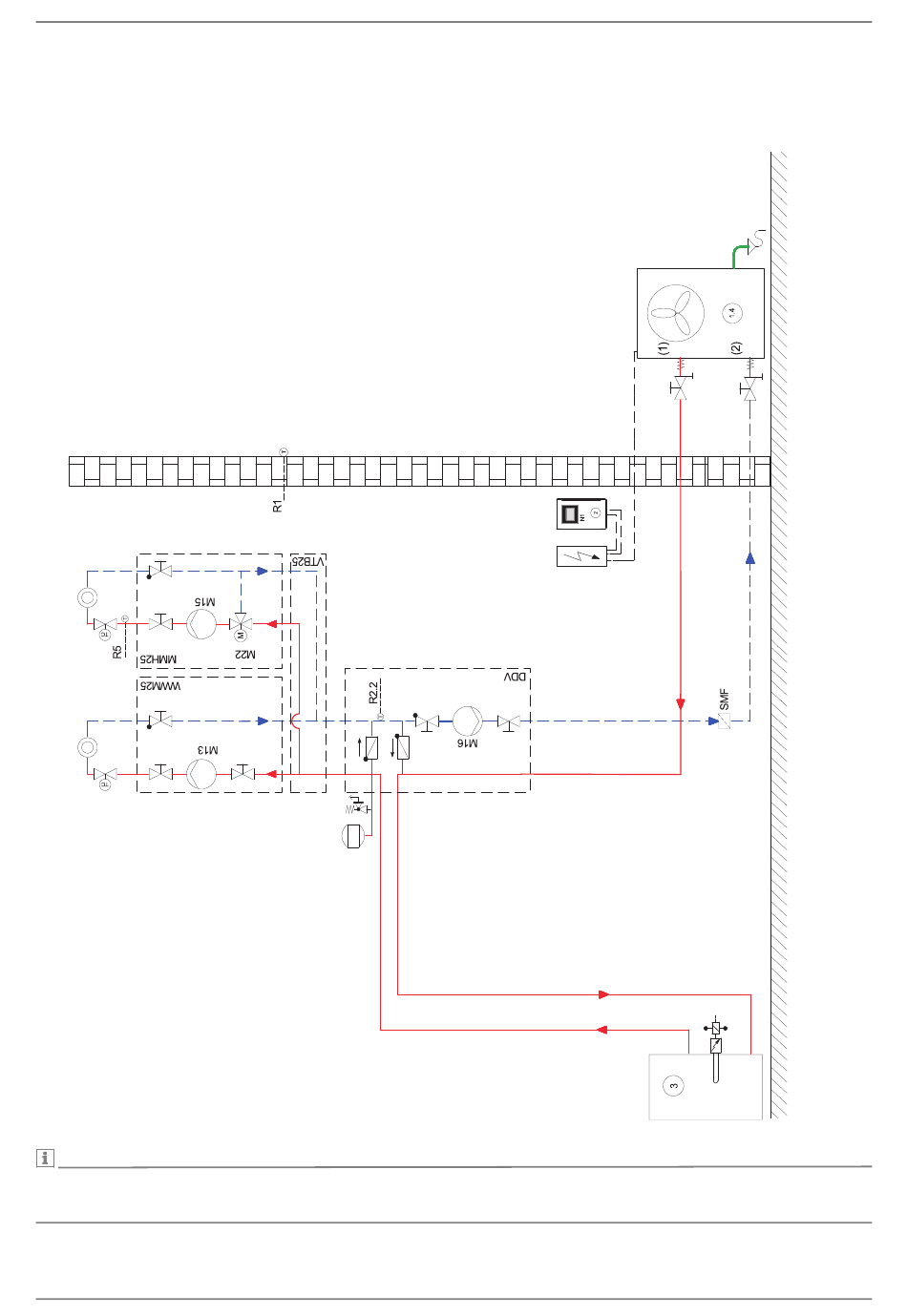

17.1 Hydraulic integration diagram
NOTE
The hydraulic integration diagram is an example and intended only as an aid. The system requires professional and safety-
approved layout by a specialist planner. All information in the section on installation and the corresponding safety notes must be
observed at all times.
