LA 1118CP

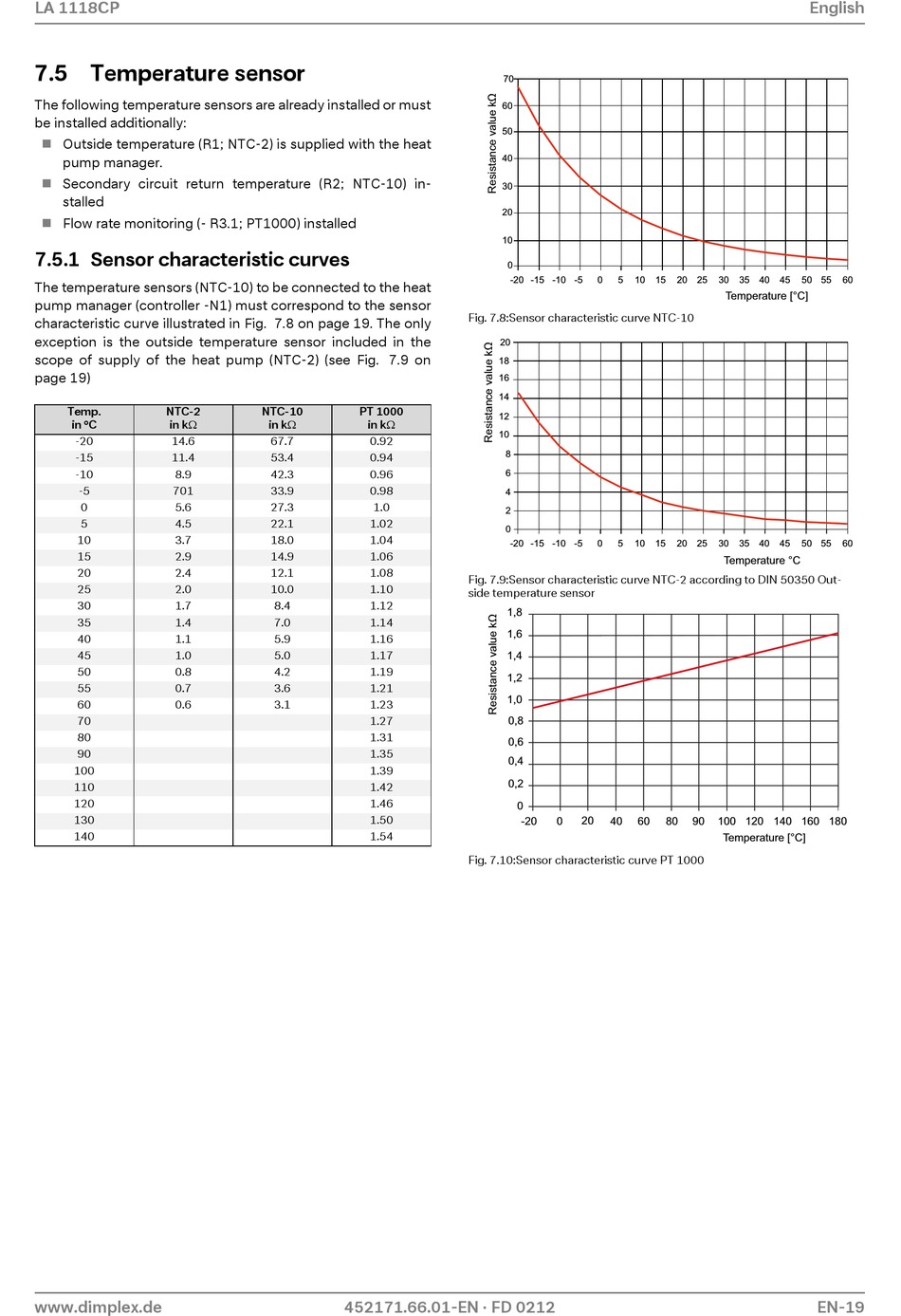

7.5 Temperature sensor

The following temperature sensors are already installed or must
be installed additionally:
 Outside temperature (R1; NTC-2) is supplied with the heat
pump manager.
 Secondary circuit return temperature (R2; NTC-10) in-
stalled
Flow rate monitoring (- R3.1; PT1000) installed

7.5.1 Sensor characteristic curves
The temperature sensors (NTC-10) to be connected to the heat
pump manager (controller -N1) must correspond to the sensor
characteristic curve illustrated in Fig. 7.8 on page 19. The only
exception is the outside temperature sensor included in the
scope of supply of the heat pump (NTC-2) (see Fig. 7.9 on
page 19)
Temp. NTC-2
in °C in k
-20 14.6
-15 11.4
-10 8.9
-5 701
0 5.6
5 4.5
10 3.7
15 2.9
20 2.4
25 2.0
30 1.7
35 1.4
40 1.1
45 1.0
50 0.8
55 0.7
60 0.6
70
80
90
100
110
120
130
140
www.dimplex.de
NTC-10 PT 1000
in k in k
67.7 0.92
53.4 0.94
42.3 0.96
33.9 0.98
27.3 1.0
22.1 1.02
18.0 1.04
14.9 1.06
12.1 1.08
10.0 1.10
8.4 1.12
7.0 1.14
5.9 1.16
5.0 1.17
4.2 1.19
3.6 1.21
3.1 1.23
1.27
1.31
1.35
1.39
1.42
1.46
1.50
1.54
452171.66.01-EN · FD 0212
70
60
50
40
30
20
10
0
-20 -15 -10 -5 0 5 10
Fig. 7.8:Sensor characteristic curve NTC-10
20
18
16
14
12
10
8
6
4
2
0
-20 -15 -10 -5 0 5 10
Fig. 7.9:Sensor characteristic curve NTC-2 according to DIN 50350 Out-
side temperature sensor
1,8
1,6
1,4
1,2
1,0
0,8
0,6
0,4
0,2
0
-20 0 20 40 60
Fig. 7.10:Sensor characteristic curve PT 1000
English
15 20 25 30 35 40 45 50 55
Temperature [°C]
15 20 25 30 35 40 45 50 55
Temperature °C
80 90 100 120 140 160 180
Temperature [°C]
EN-19
