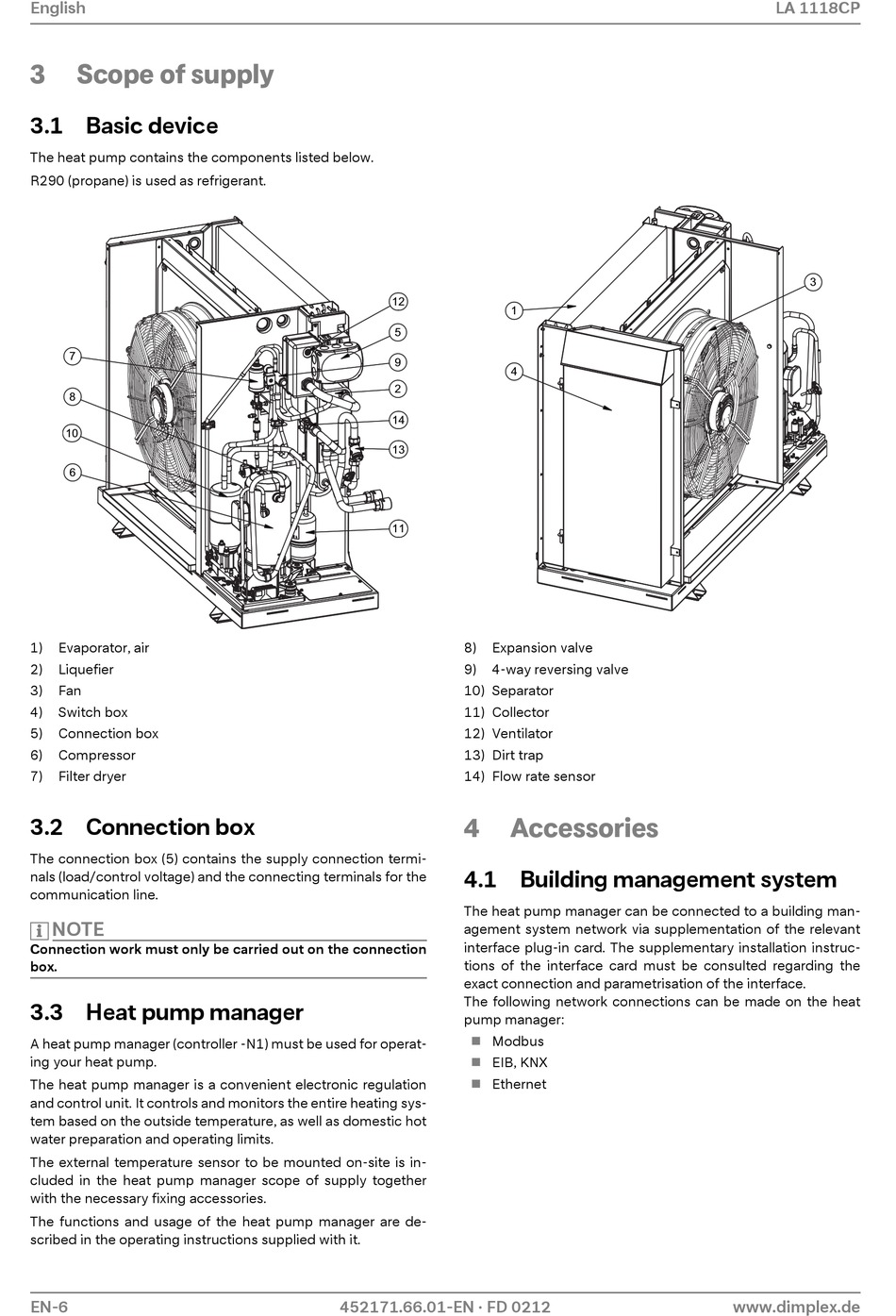

Scope of supply

3.1 Basic device

The heat pump contains the components listed below.
R290 (propane) is used as refrigerant.
1) Evaporator, air
2) Liquefier
3) Fan
4) Switch box
5)

Connection box

6) Compressor
7) Filter dryer
3.2 Connection box
The connection box (5) contains the supply connection termi-
nals (load/control voltage) and the connecting terminals for the
communication line.
NOTE
Connection work must only be carried out on the connection
box.

3.3 Heat pump manager

A heat pump manager (controller -N1) must be used for operat-
ing your heat pump.
The heat pump manager is a convenient electronic regulation
and control unit. It controls and monitors the entire heating sys-
tem based on the outside temperature, as well as domestic hot
water preparation and operating limits.
The external temperature sensor to be mounted on-site is in-
cluded in the heat pump manager scope of supply together
with the necessary fixing accessories.
The functions and usage of the heat pump manager are de-
scribed in the operating instructions supplied with it.
EN-6
8) Expansion valve
9) 4-way reversing valve
10) Separator
11) Collector
12) Ventilator
13) Dirt trap
14) Flow rate sensor
4

4.1 Building management system

The heat pump manager can be connected to a building man-
agement system network via supplementation of the relevant
interface plug-in card. The supplementary installation instruc-
tions of the interface card must be consulted regarding the
exact connection and parametrisation of the interface.
The following network connections can be made on the heat
pump manager:
 Modbus
EIB, KNX

 Ethernet
