Robacta Twin V Testing System - Testing Customer-
Specific Twin Robot Welding Torches
General With the Robacta Twin V testing system, you can test customer-specific Twin robot welding
torches and special models for dimensional deviations.
The user is responsible for the setup and initial adjustment.
Preparing the
Testing System

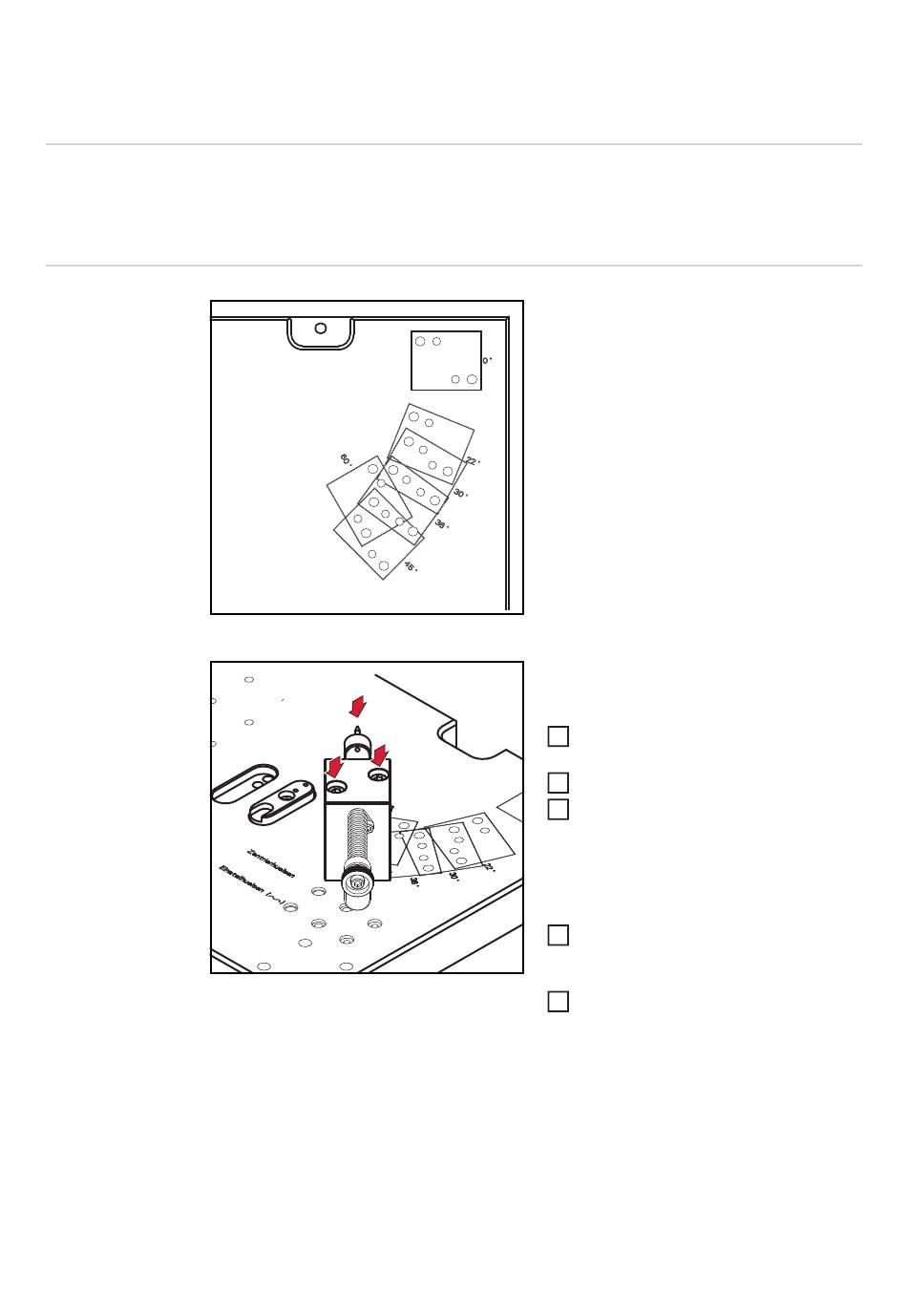

Assembly positions on the base plate
Mounting the testing unit
94
The base plate of the Robacta Twin V tes-
ting system contains 6 possible positions
for mounting the testing unit.
For packaging reasons, the testing unit is
pre-mounted the wrong way round on the
0° mounting position when delivered.
Mount the testing unit in the correct position
on the base plate for the torch neck curva-
ture of the welding torch to be tested:
Remove the Allen screw on the testing
1
unit using an Allen key (6 mm)
Remove the testing unit
2
Screw the testing unit to the correct po-
3
sition on the base plate for the torch
neck that is to be tested
The test probes are marked with "sym-
metrical" and "asymmetrical"
Unscrew the appropriate test probes
4
from the base plate of the Robacta
Twin V testing system
Mount the test probes on the testing
5
unit
