Preparing the
Torch Neck for
Testing

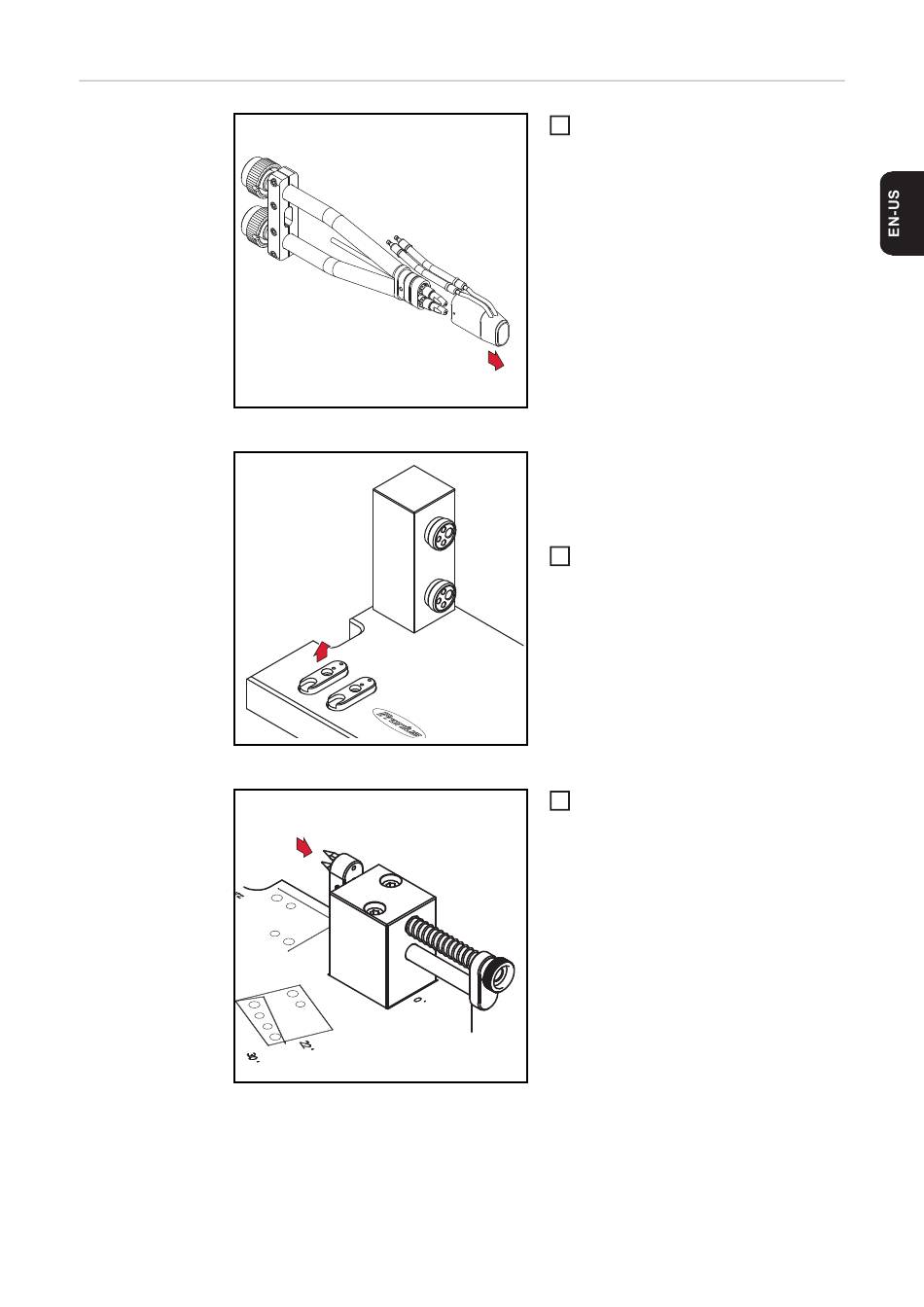

Removing the gas nozzle
Removing the test probes from the base plate
Mounting the test probes
Remove the gas nozzle
1
Mounting the Testing System Testing Unit
in the Correct Position on the Base Plate for
the Torch Neck Curvature of the Welding
Torch to be Tested:
Remove the test probes from the base
2
plate
Select the appropriate test probes ba-
sed on whether the Twin torch neck to
be tested is symmetrical or asymmetri-
cal.
The test probes are marked with "sym-
metrisch" and "asymmetrisch".
Mount the test probes on the testing
3
unit
