Robacta Twin Testing System - Testing Twin Robot
Torch Necks
Preparing the
Testing Unit

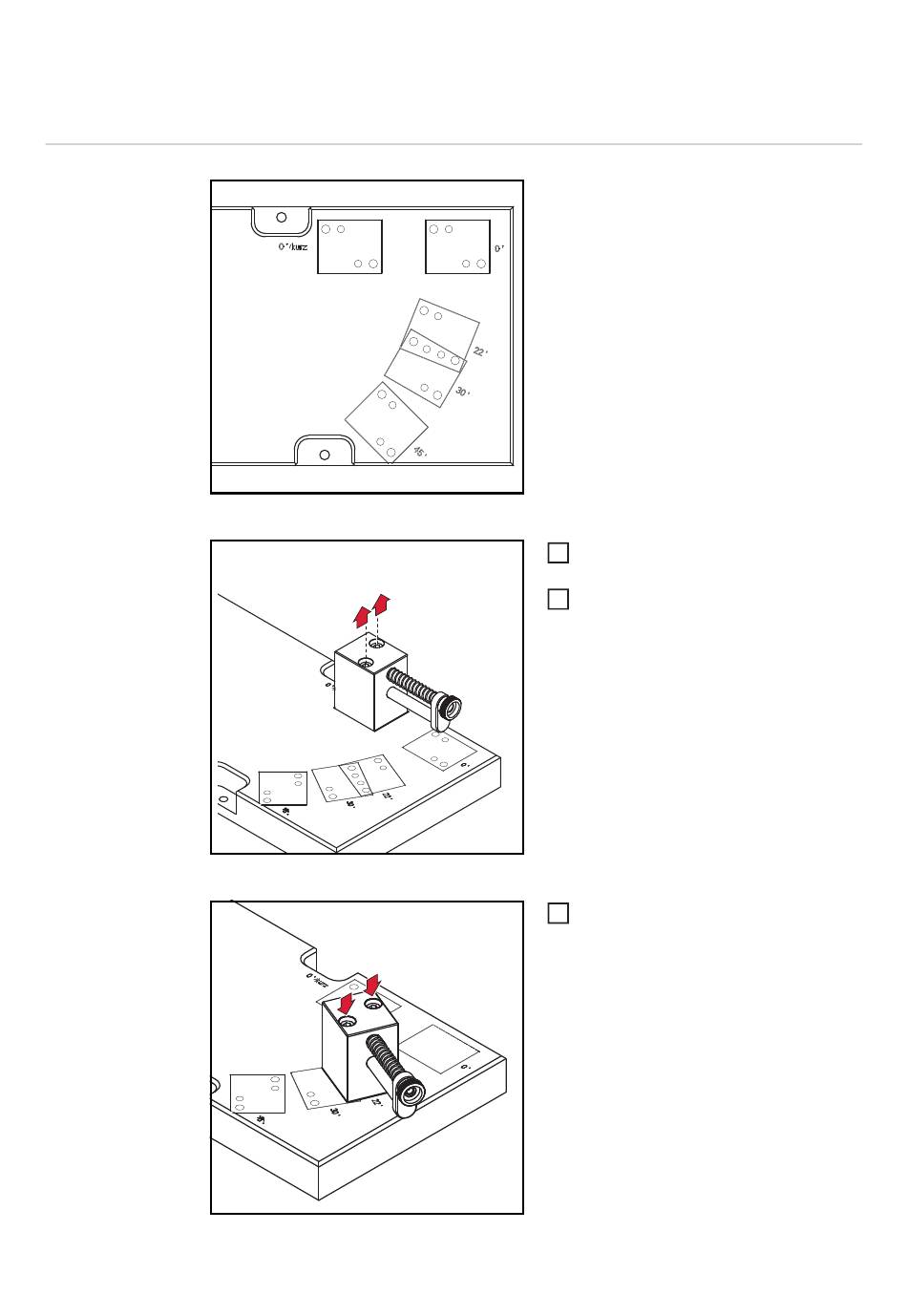

Assembly positions on the base plate
Testing unit: Removing the Allen screw
Mounting the testing unit
74
The base plate of the Robacta Twin testing
system contains 5 possible positions for
mounting the testing unit.
For packaging reasons, the testing unit is
pre-mounted on the „0° kurz" mounting po-
sition when delivered.
Remove the Allen screw on the testing
1
unit using an Allen key (6 mm)
Remove the testing unit
2
Screw the testing unit to the correct po-
3
sition on the base plate for the torch
neck that is to be tested
