LIFT EMERGENCY TELEPHONES

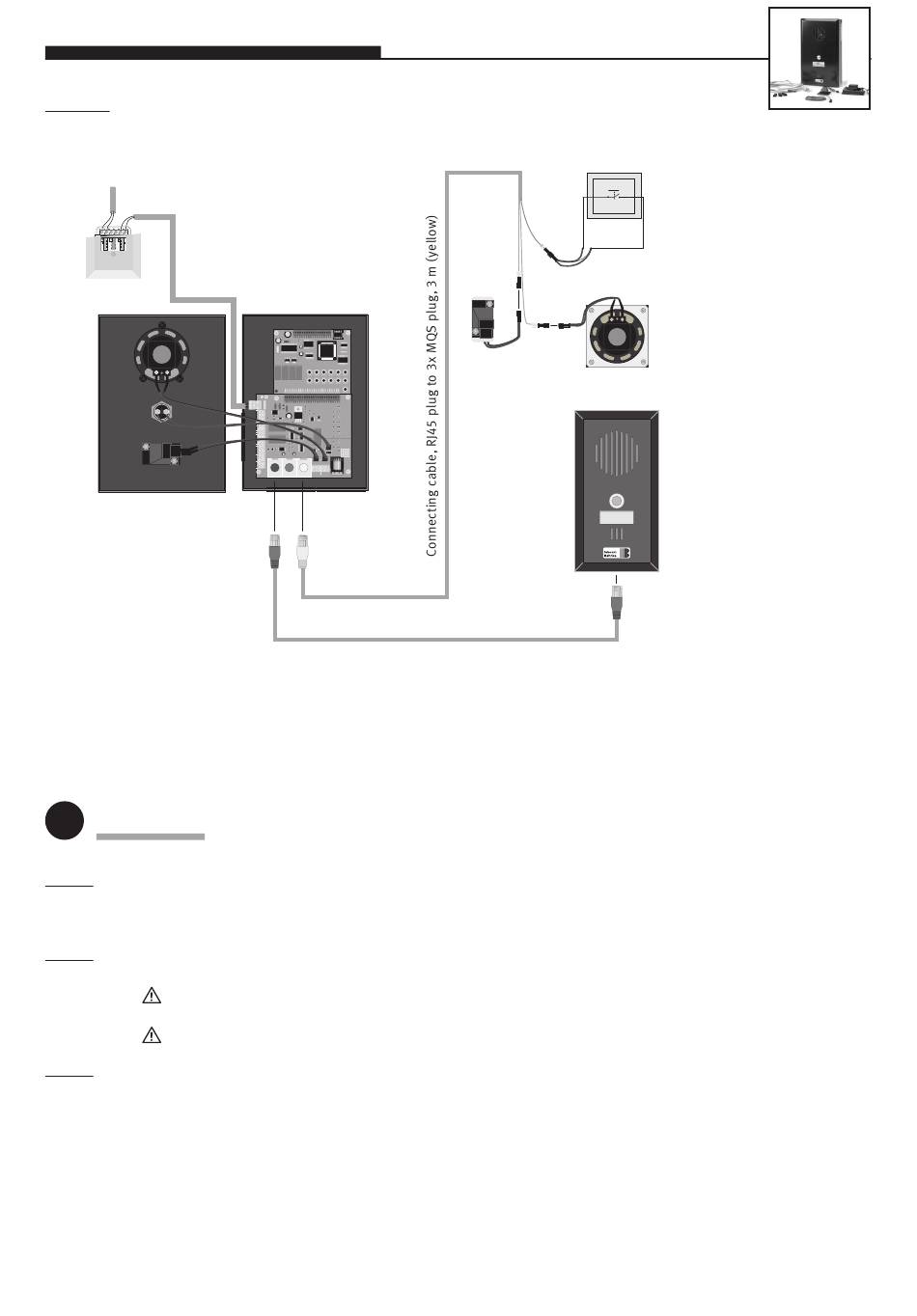

Sketch C:
Lift telephone 20-0028 (with integrated outside-car speech module for on top of the car)
with microphone and loudspeaker for rear mounting as MLM A
Telephone connection
The telephone-line cord is run from
the telephone socket in the
machine room along the
suspension cable to the emergency
telephone mounted on the car top,
to which it is connected.
BNOS lift emergency
telephone 20-0028
with integrated
outside-car speech
module
The lift emergency telephone 20-0028 is available either as a single unit or in two sets:
20-0021
Set 1 = telephone 20-0028 plus external loudspeaker and microphone with all connecting cables.
20-0022
Set 2 = like set 1, but with 1 additional outside-car speech module for underneath the car.
Connection
3
Step 1:
– Connect loudspeaker, microphone and buttons for inside the car = MLM A.
– Connect outside-car speech module for on top of the car, if required = MLM B (not in the case of 20-0028).
– Connect outside-car speech module for underneath the car, if required = MLM C.
Step 2:
Connect 12 V DC, if required (must be potential-free – use BNOS UPS or existing emergency power supply in
conjunction with BNOS DC/DC converter).
Only required for: illumination, camera, integrated heating, integrated add-on amplifier, connecting 12 V
through to an MLM.
Not required for: telephone operation, including all functions.
Step 3:
Connect telephone line (a/b line from analogue PBX extension or analogue direct exchange line) => a long
beep signals the telephone's operational readiness.
16
Telefonbau Behnke GmbH
1
2
3
4
5
∗
∗
#
6
7
8
9
0
#
T
E
L
T1
1
2
3
\
4
5
6
\
9 i
MLM A
7
8
# +
+MLM C
+MLM B
T2
*
0
− MIC +
LS
− MIC +
LS
rot
blau
gelb
5-m patch cable (red)
The emergency button present
in the panel is used for
initiating an emergency call
(make or break contact, see
configuration step 970).
M
Built-in microphone and built-in
L
loudspeaker inside the car;
other modules are also
possible
(MLM A)
BNOS outside-
car speech
module with
button for
underneath the
car
EMERGENCY
(MLM C)
