2. Installation

2.2. Mounting the Inverter

2

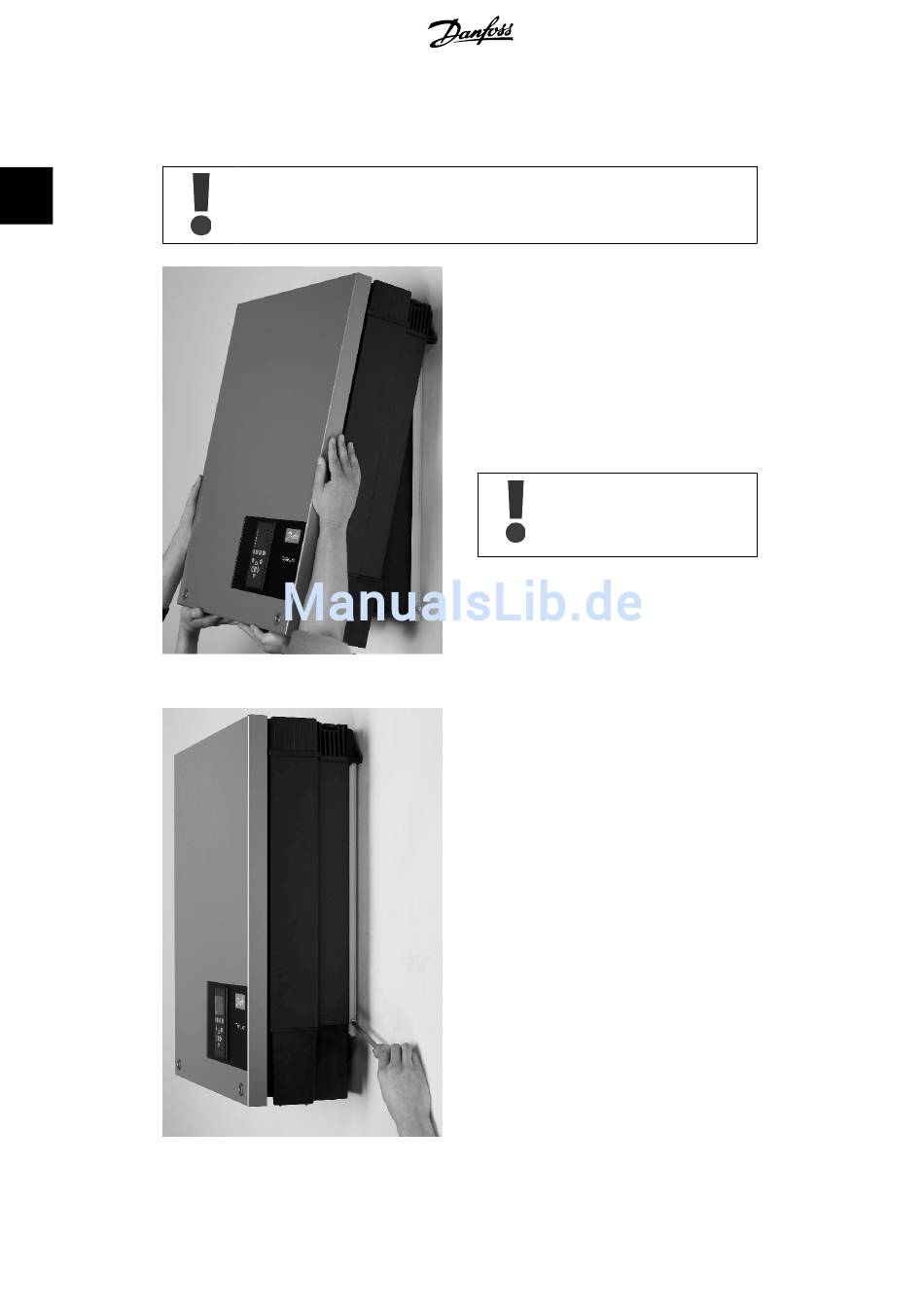

Illustration 2.3: Mounting the inverter
Illustration 2.4: Secure the inverter with screws
8
For the safe handling of the inverter, two people must carry the unit, or a suitable
transport trolley must be used. Safety boots must be worn.
Mount the wall plate as described. Hold on to
the lower end of the inverter. Place the inver-
ter cooling racks onto the wall plate. The plate
will subsequently fit into the rails. Push up-
wards over the top of the plate until you feel
the inverter tilting towards the wall. Ease your
grip and let the inverter click into place. Let
the inverter rest against the wall. The inverter
is supported by the lower part of the wall
plate.
Take care that the inverter is
properly rested on the wall plate
both at the top and at the bot-
tom.
Fasten the screws on either side of the wall
plate to secure the inverter.
