2.3. Removing the Inverter

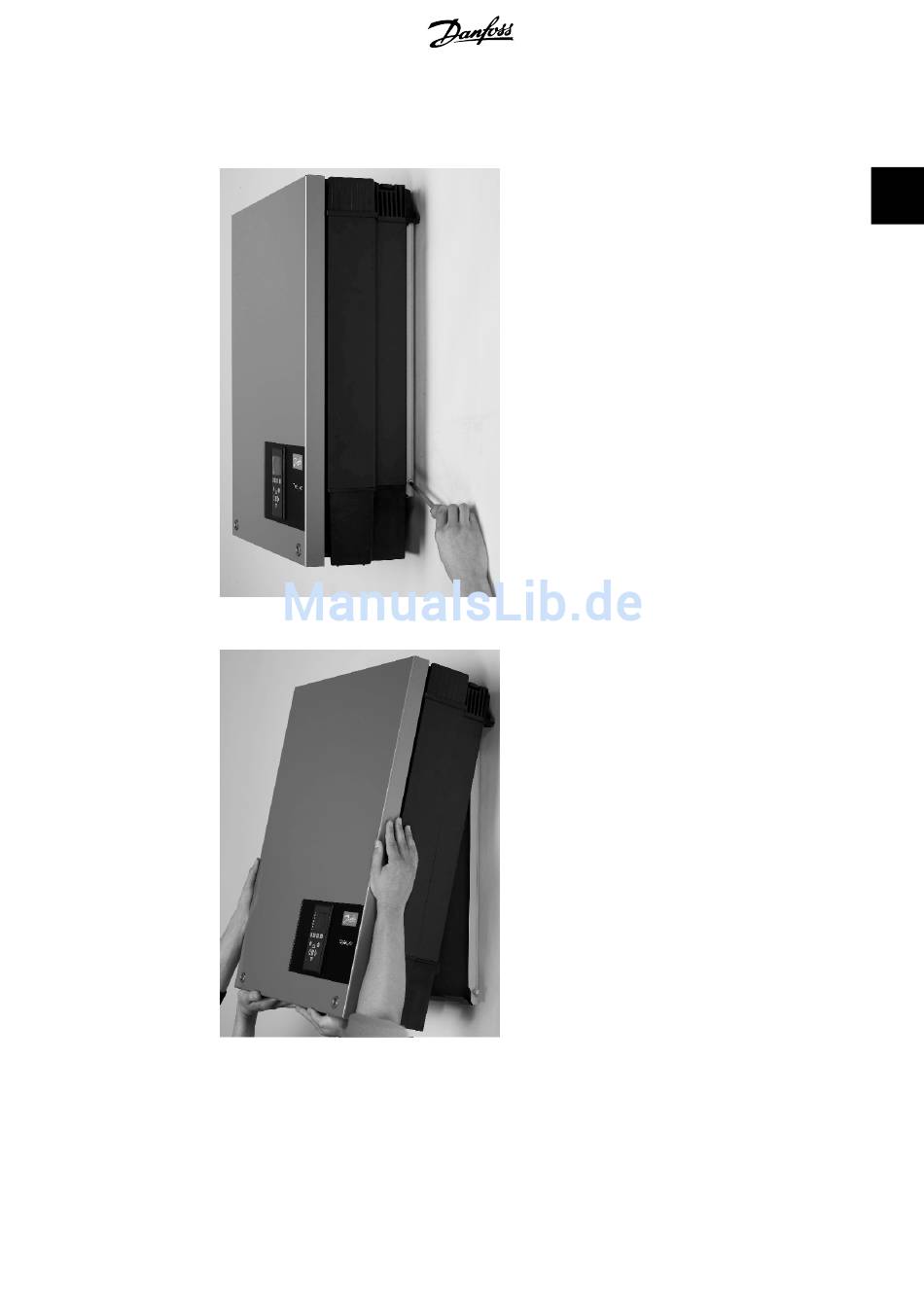

Illustration 2.5: Loosen screws
Illustration 2.6: Removal of the inverter from wall
plate
Loosen the locking screws on either side of the
inverter.
With a firm grip at the lower end of the inver-
ter, lift the inverter approximately 20 mm ver-
tically. Pull the inverter slightly away from the
wall. Push upwards at an angle until you feel
the wall plate releasing the inverter. Lift the
inverter away from the wall plate.
L00410309-03_2q
2. Installation
