1.1.3. DC-Switch and Cable Lock

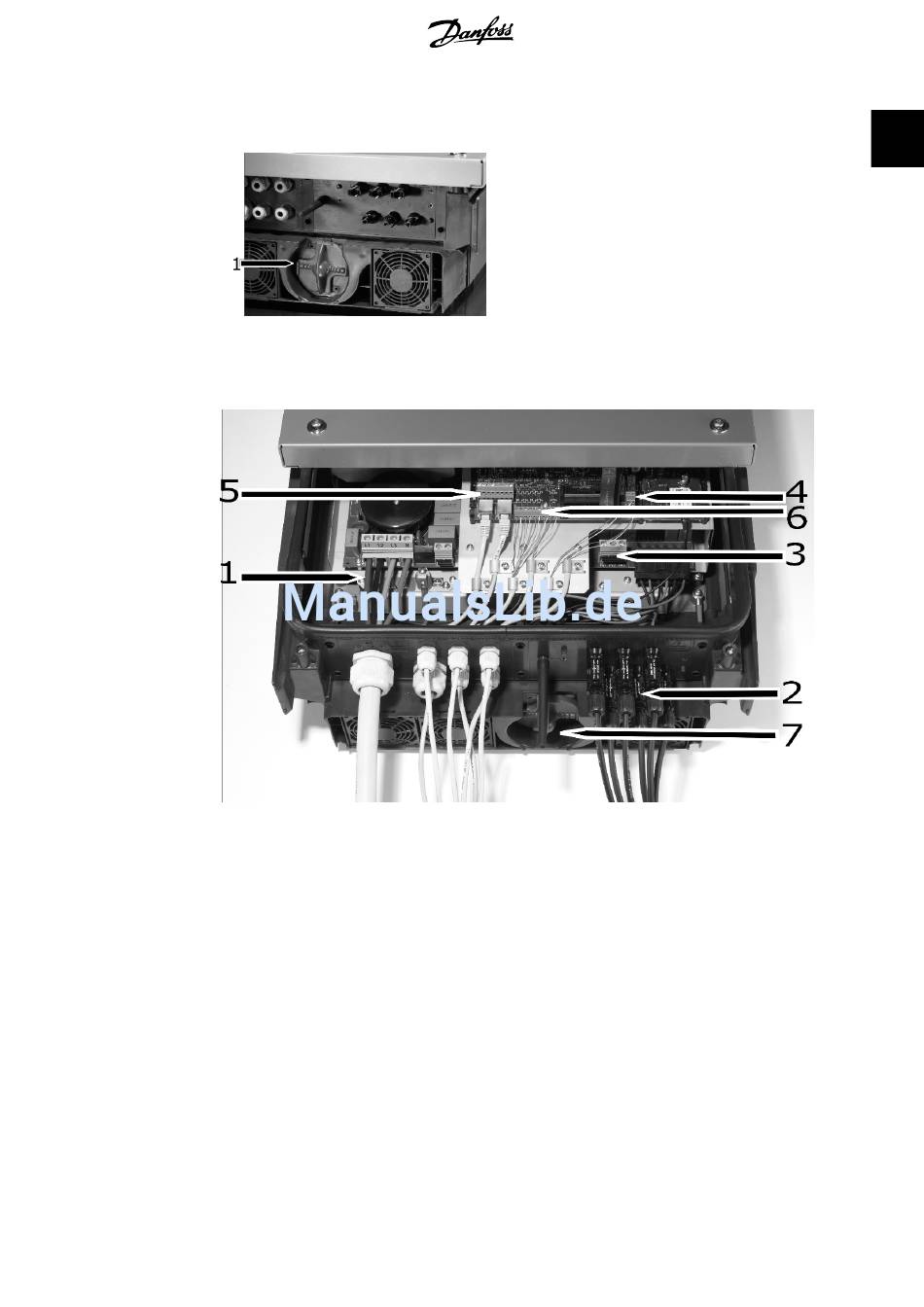

Illustration 1.2: TLX DC-switch

1.1.4. Overview of Inverter

Illustration 1.3: Overview of Danfoss TLX inverter
Live Part
1. AC Connection Area
2. DC Connection Area
3. Terminal block for parallel connection
4. Auxiliary output: Two potential free relays
PELV (Safe to touch)
5. Auxiliary input: RS485
6. Auxiliary input: Temperature, Irradiation, Energy meter
Other
7. DC-switch
The inverter has been equipped with a DC-
switch (1) for safe disconnection of DC cur-
rent. To avoid unintentional disconnection of
DC cables, cable locks are available as a sep-
arate product,
L00410309-03_2q
1. Introduction
safety lock clip PV-SSH4 .
