2.6.1. Parallel / Individual Configuration

In order to configure the inverter for parallel operation, please follow the guideline below. The
inverter is by default set to individual operation.
If the inverter has been turned on before configuration: Turn off AC and PV and wait
30 min. before proceeding.

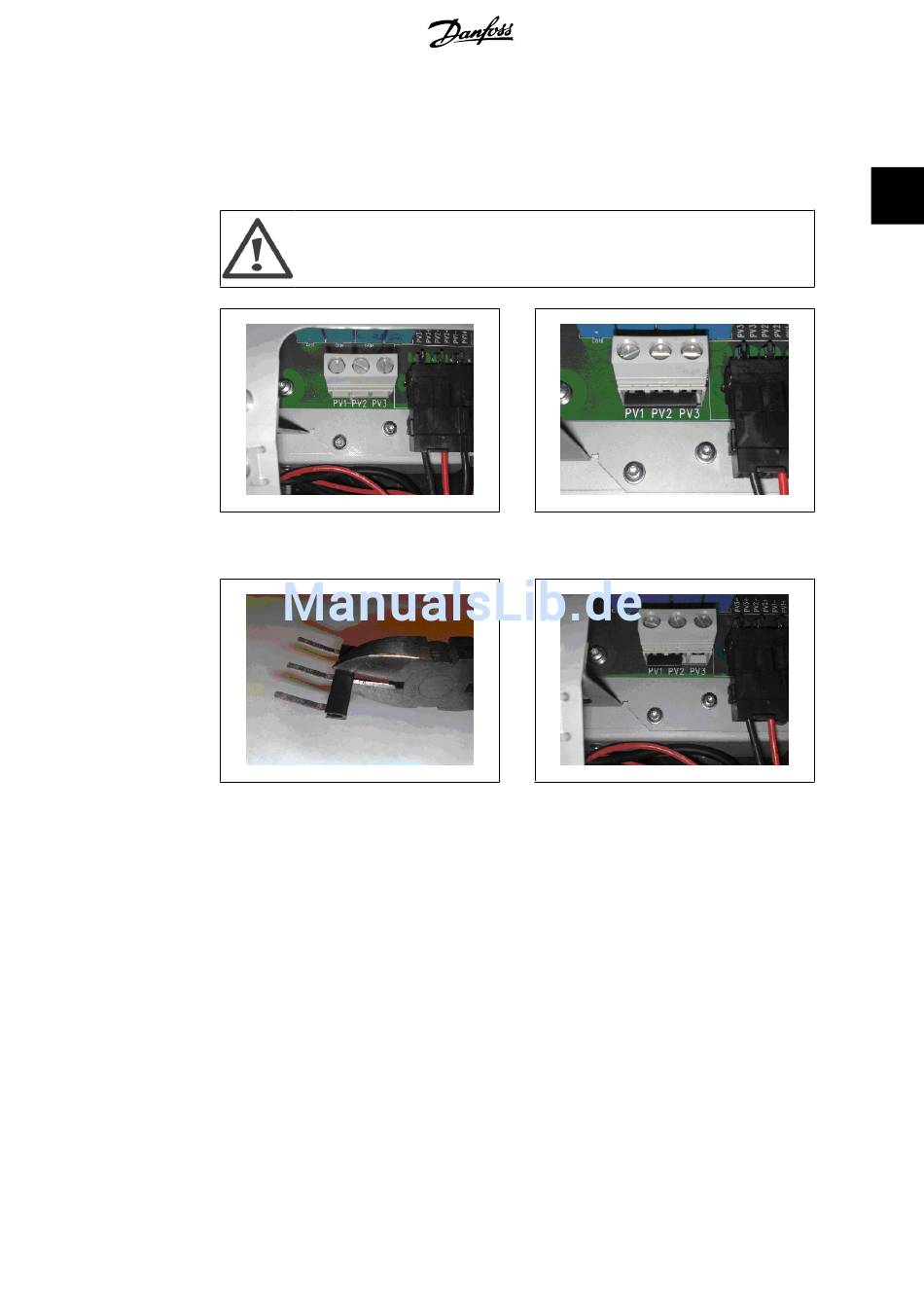

Illustration 2.14: Individual Configuration (De-
fault)
Illustration 2.16: Example: Cut to achieve the cor-
rect configuration
- Connect the required inputs in parallel or use the terminal block in the inverter to es-
tablish the parallel connection. Cut the short circuit bridge to accommodate the required
configuration.
- Close the inverter and remember to ensure proper PE connection.
- Turn on AC to start the inverter.
Enter Installer password (supplied by distributor) in Setup menu. [Setup → Security →
-
Password: xxxx]
- Press Back, and use the arrows to find the PV configuration menu under the menu Setup
details [Setup → Setup details → PV configuration]
- Select PV configuration mode. Make sure that the configuration that corresponds to the
wiring is selected [Setup → Setup details → PV configuration → Mode: Parallel].
PV configuration has now been set.
Illustration 2.15: Parallel-Parallel-Parallel Configu-
ration
Illustration 2.17: Example: Parallel-Parallel-Indi-
vidual Configuration
