2. Installation

2. Installation
2

2.1. Installation Dimensions and Patterns

Note:
For details please see the section on
When choosing the installation place, make sure that the inverter is not exposed to direct sunlight.
Additionally, it is important that an adequate flow of air to the cooling element on the back side
of the inverter is ensured. Mount the inverter on a flat surface at least the size of the inverter and
take care that it is sufficiently firm to carry the inverter weight. Do not install the inverter on
flammable surfaces (wood or similar) or close to flammable materials. Do not install the inverter
in environments where dust, straw or similar airborne solids can block the fans of the inverter.
Likewise be aware that snow and ice may block the inverter.

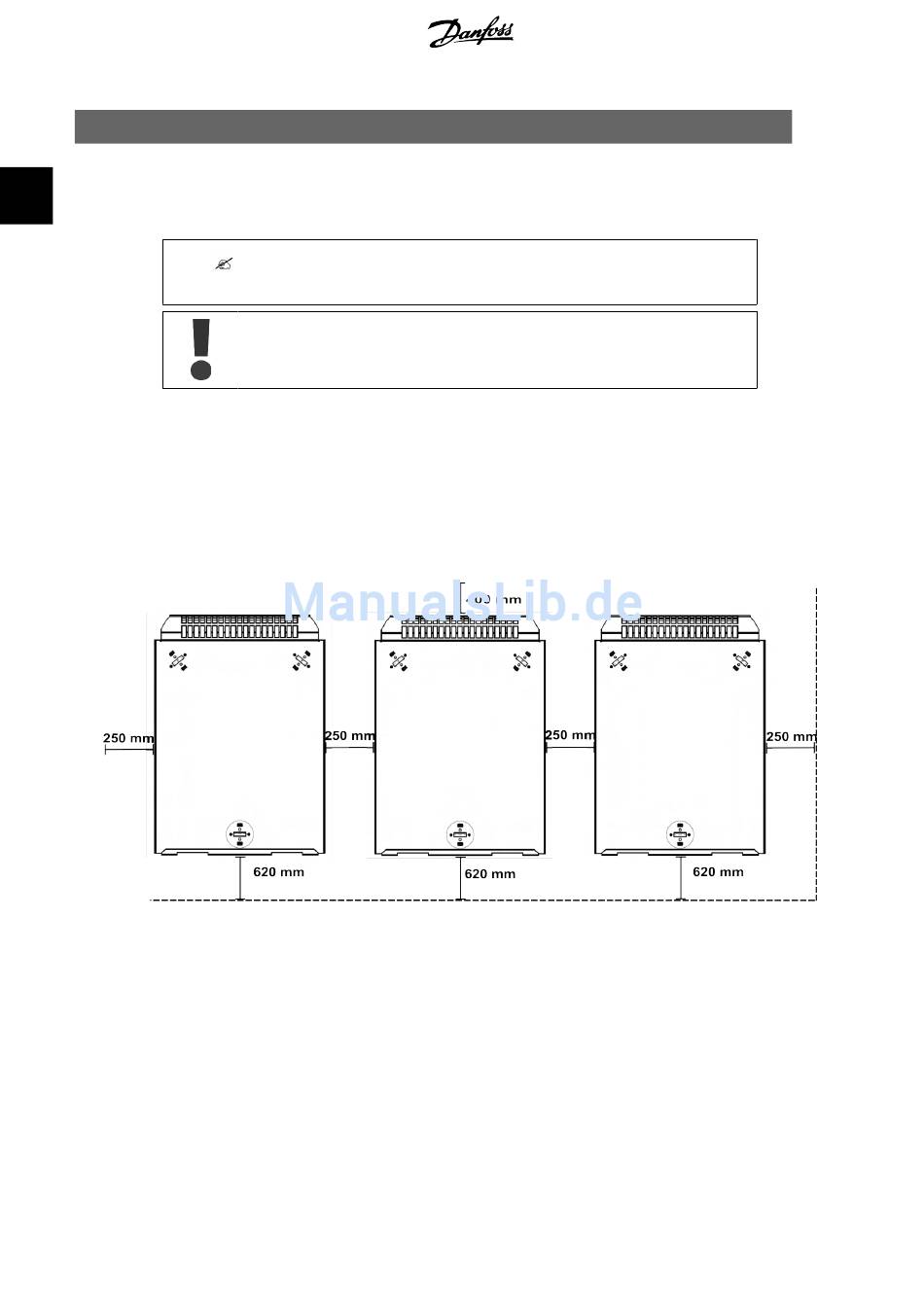

Illustration 2.1: Inverters placed at safe distances in relation to other objects.
Observe these distances when installing one or more inverters. One row mounting is recommen-
ded. Please contact your supplier for information on mounting in more rows.
6
Specifications .
When choosing the installation place, ensure that all labels on the inverter are visible
at all times.
