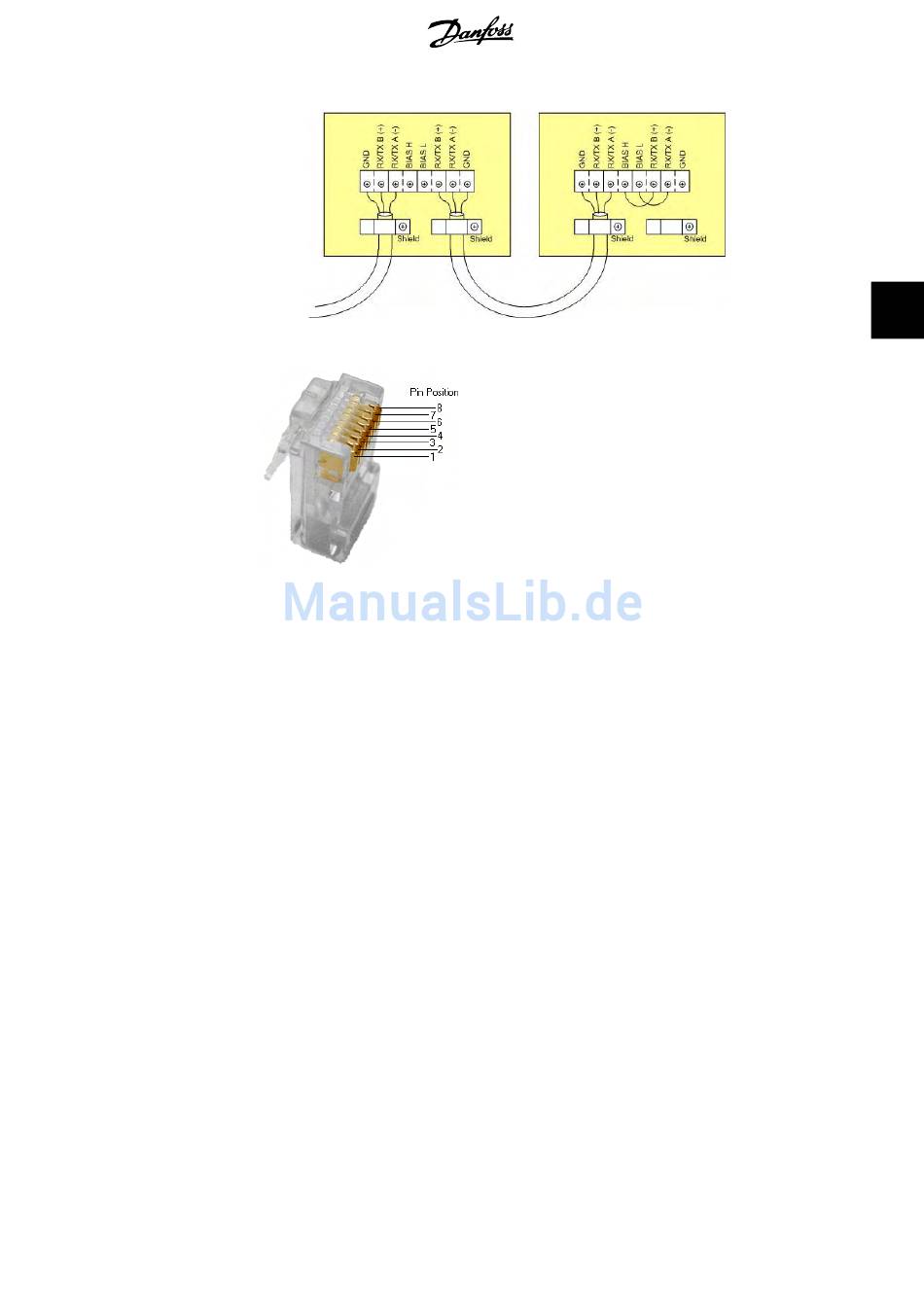

Illustration 4.7: RS485 detail of Communication Board
Illustration 4.8: RJ45 pinout detail
Pinout:
1. GND
2. GND
3. RX/TX A (-)
4. BIAS L
5. BIAS H
6. RS/TX B (+)
7. Not connected
8. Not connected
Bold = Compulsory, Cat5 cable contains all 8
wires
L00410309-03_2q
4. Technical Data
