Important!
The accuracy of this work considerably influences the flight properties. The positions of the glued-on tail
units at the fuselage must be aligned with the wing as shown in figure 6.
Practical advice:
Take time with measurement and gluing of the tail unit positions at the fuselage. Ask a second person to help with
this work if required.

c) Mounting the Rudder Horns

Install the rudder horns to the elevator and rud-
ders as shown in figure 7.
For this, the iron-on film must be removed at
the pre-fabricated holes of the rudder horns.
Then first push the rudder horn into the holes
so that the rudder horns point forward to the
fuselage tip.
The rudder horns (also see figure 2) are secu-
red on the opposite side with a holding plate
and a drop of superglue.

d) Installing the Servos and Bowden Tubes

Mount the servos used centrally on the servo board with their mounting material (figure 8, item 5). Glue the servo
board into the fuselage as shown in figure 8, item 6 with 5-minute epoxy resin.
Glue the Bowden tubes to the fuselage as shown in figure 8, item 8 with 5-minute epoxy resin. To avoid sticking of the
pushrods, the tubes should not be glued to the end.
36

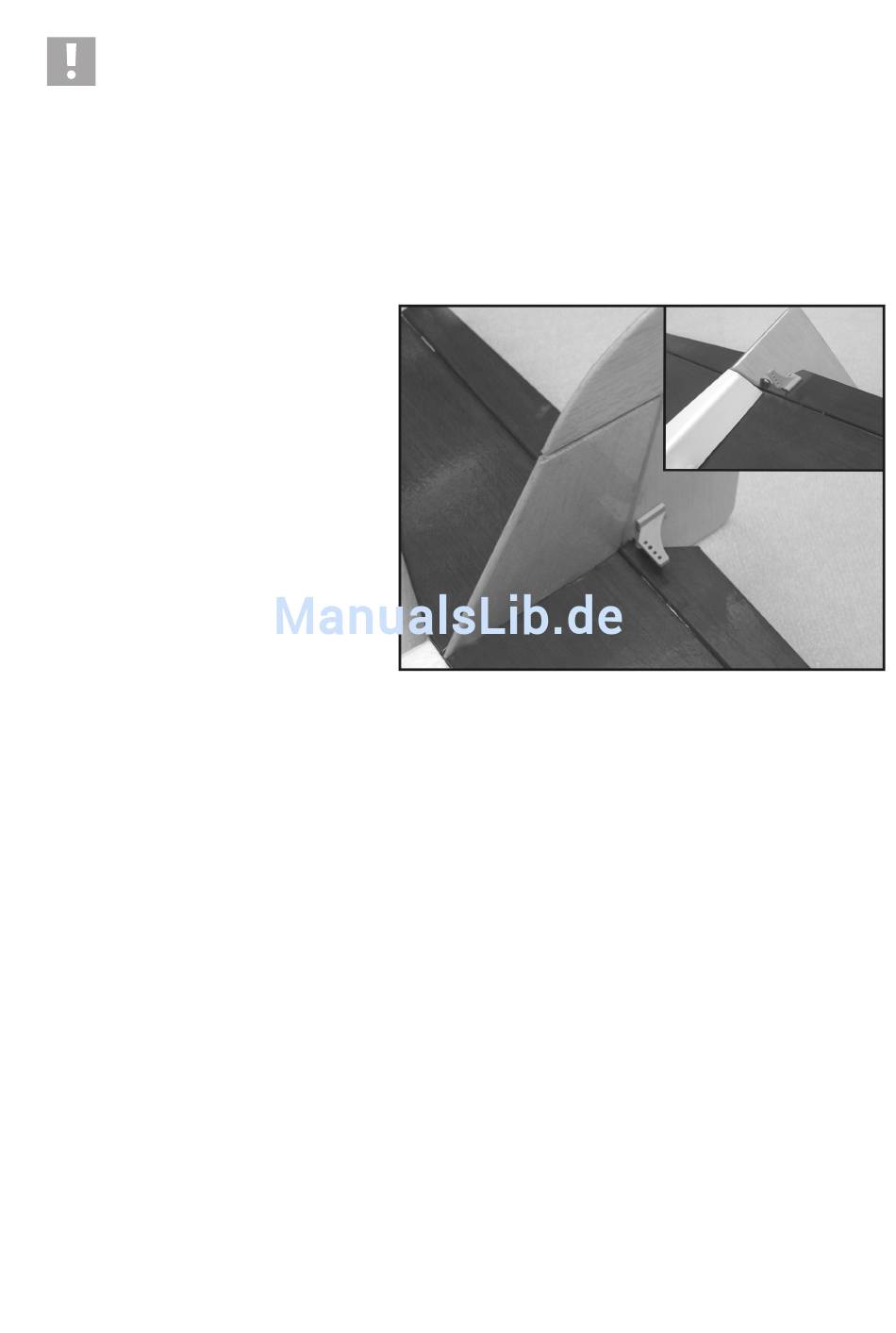

Figure 7
