d) Inspecting the Rudder System

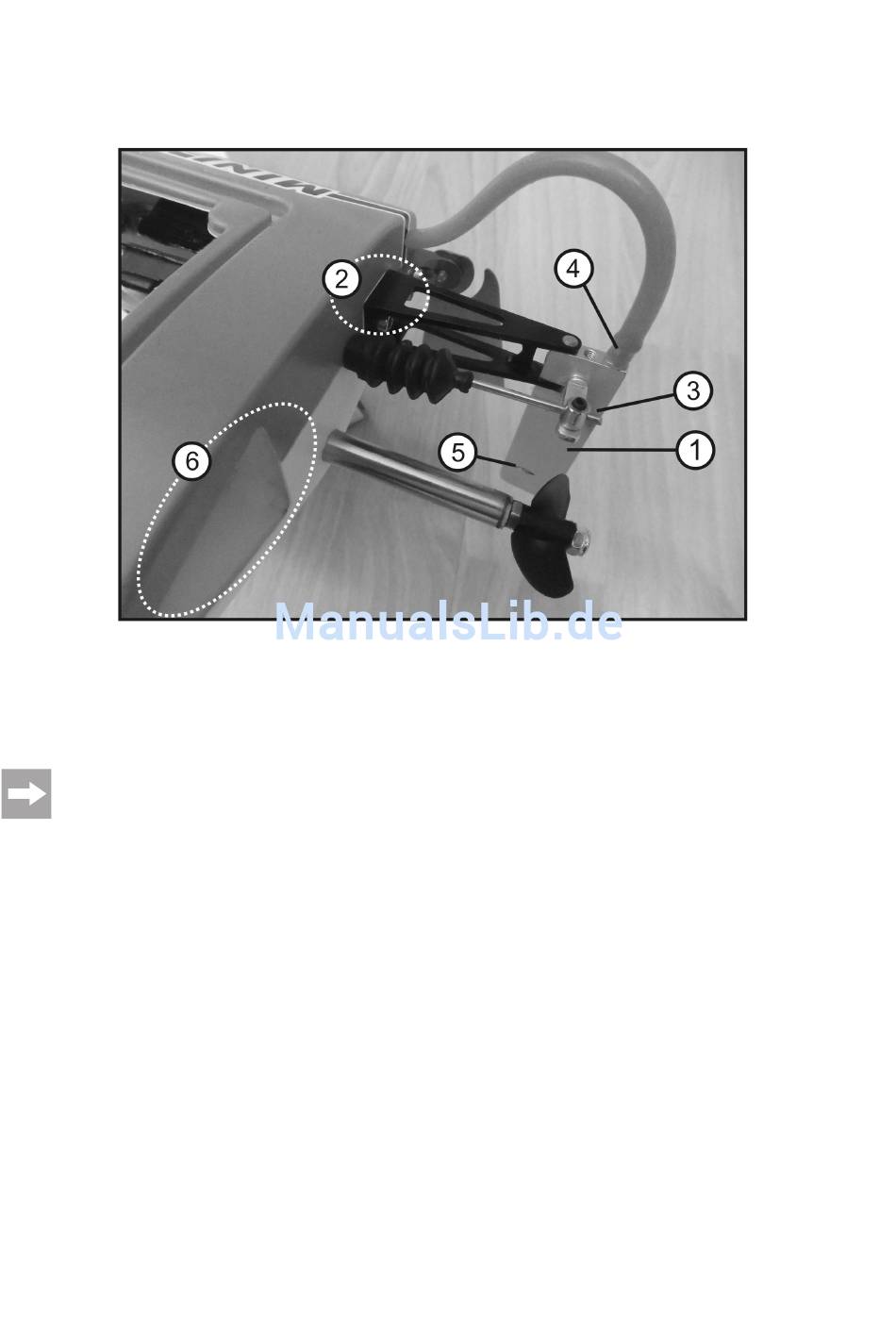

The rudder system is already installed ready for use ex works. Figure 3 shows the rudder (1), the attachment screws
of the rudder system (2), the linkage connection for the linkage rods (3), the connection of the water cooling (4) and
the entry opening of the water cooling (5).
Switch your remote control on and put the steering servo to the neutral position (middle position). Adjust the rudder
in the neutral position as well. Now fasten the linkage rods with the hexagon socket screw of the linkage connection.
Check the function of the rudder linkage. Also observe the notes in the following chapter 9.
Check the linkage for tight fit and damage before any voyage. A damaged or loose linkage/attachment (e.g.
loose screws, see figure 3, items 2 and 3) must be repaired before the voyage.
Otherwise, the linkage rods and/or rudder system may come loose unintentionally in operation. There is a
danger of further damage to your model (e.g. the steering servo blocks). Your model will also no longer be
controllable and may be lost. Also observe the following notes in chapter 9.
"Metal/metal" screw connections must be secured against unintended loosening either with so-called "stop
nuts" or with a drop of thread locker varnish.
Figure 3, item 6 shows the rear area of the flood channel as well. If the model tips over in operation and floats on its
back, the flood channel will fill with water and straighten the model ship again.
Figure 3
