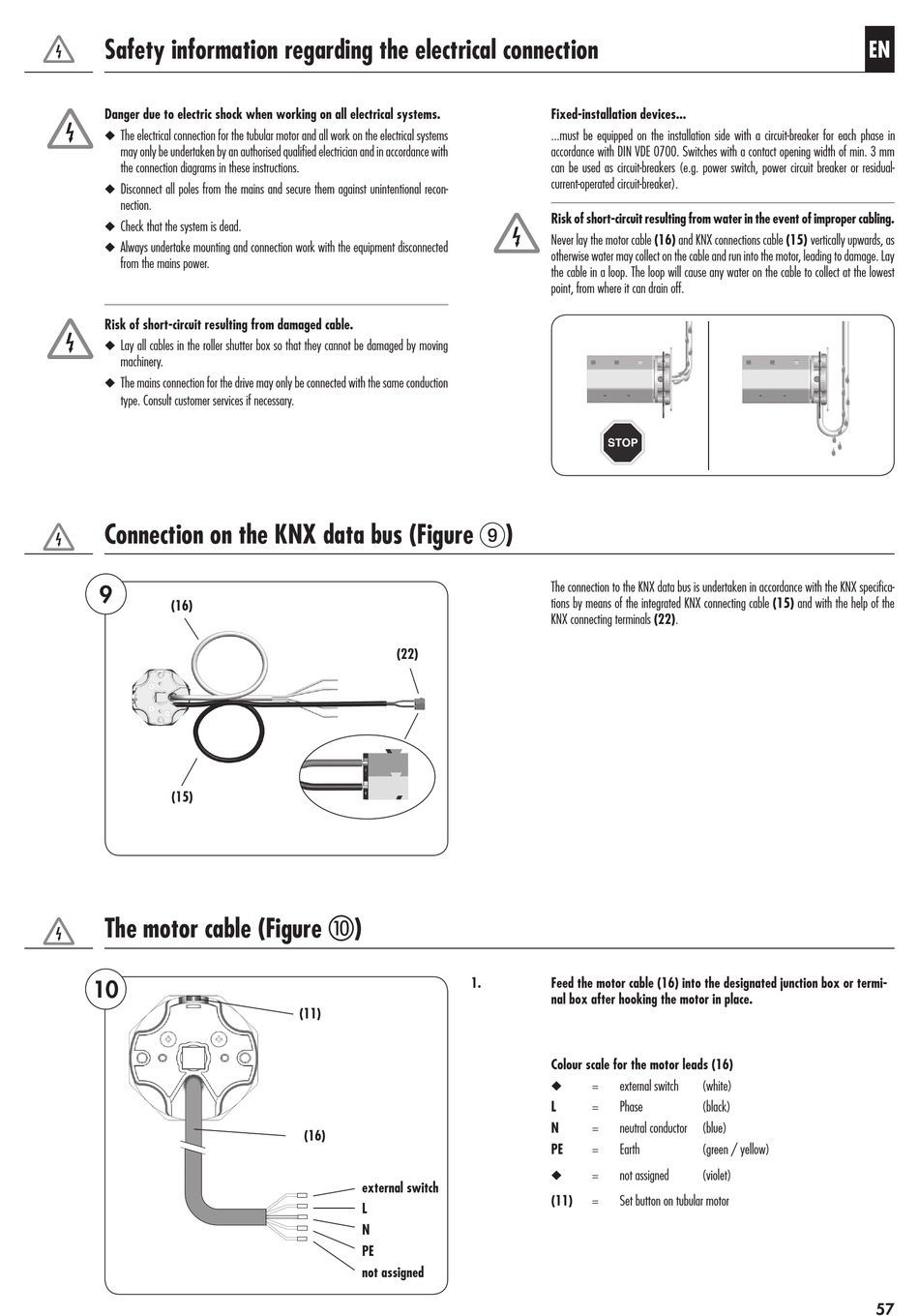

Safety information regarding the electrical connection

Danger due to electric shock when working on all electrical systems.
◆ The electrical connection for the tubular motor and all work on the electrical systems
may only be undertaken by an authorised qualified electrician and in accordance with
the connection diagrams in these instructions.
◆ Disconnect all poles from the mains and secure them against unintentional recon-
nection.
◆ Check that the system is dead.
◆ Always undertake mounting and connection work with the equipment disconnected
from the mains power.
Risk of short-circuit resulting from damaged cable.
◆ Lay all cables in the roller shutter box so that they cannot be damaged by moving
machinery.
◆ The mains connection for the drive may only be connected with the same conduction
type. Consult customer services if necessary.

Connection on the KNX data bus (Figure 9 )

9
(16)
(15)

The motor cable (Figure j )

10
(22)
1.
(11)
(16)
external switch
L
N
PE
not assigned
Fixed-installation devices...
...must be equipped on the installation side with a circuit-breaker for each phase in
accordance with DIN VDE 0700. Switches with a contact opening width of min. 3 mm
can be used as circuit-breakers (e.g. power switch, power circuit breaker or residual-
current-operated circuit-breaker).
Risk of short-circuit resulting from water in the event of improper cabling.
Never lay the motor cable (16) and KNX connections cable (15) vertically upwards, as
otherwise water may collect on the cable and run into the motor, leading to damage. Lay
the cable in a loop. The loop will cause any water on the cable to collect at the lowest
point, from where it can drain off.
The connection to the KNX data bus is undertaken in accordance with the KNX specifica-
tions by means of the integrated KNX connecting cable (15) and with the help of the
KNX connecting terminals (22).
Feed the motor cable (16) into the designated junction box or termi-
nal box after hooking the motor in place.
Colour scale for the motor leads (16)
= external switch (white)
◆
L = Phase (black)
N = neutral conductor (blue)
PE = Earth (green / yellow)
= not assigned (violet)
◆
(11) = Set button on tubular motor
EN
57
